System And Components

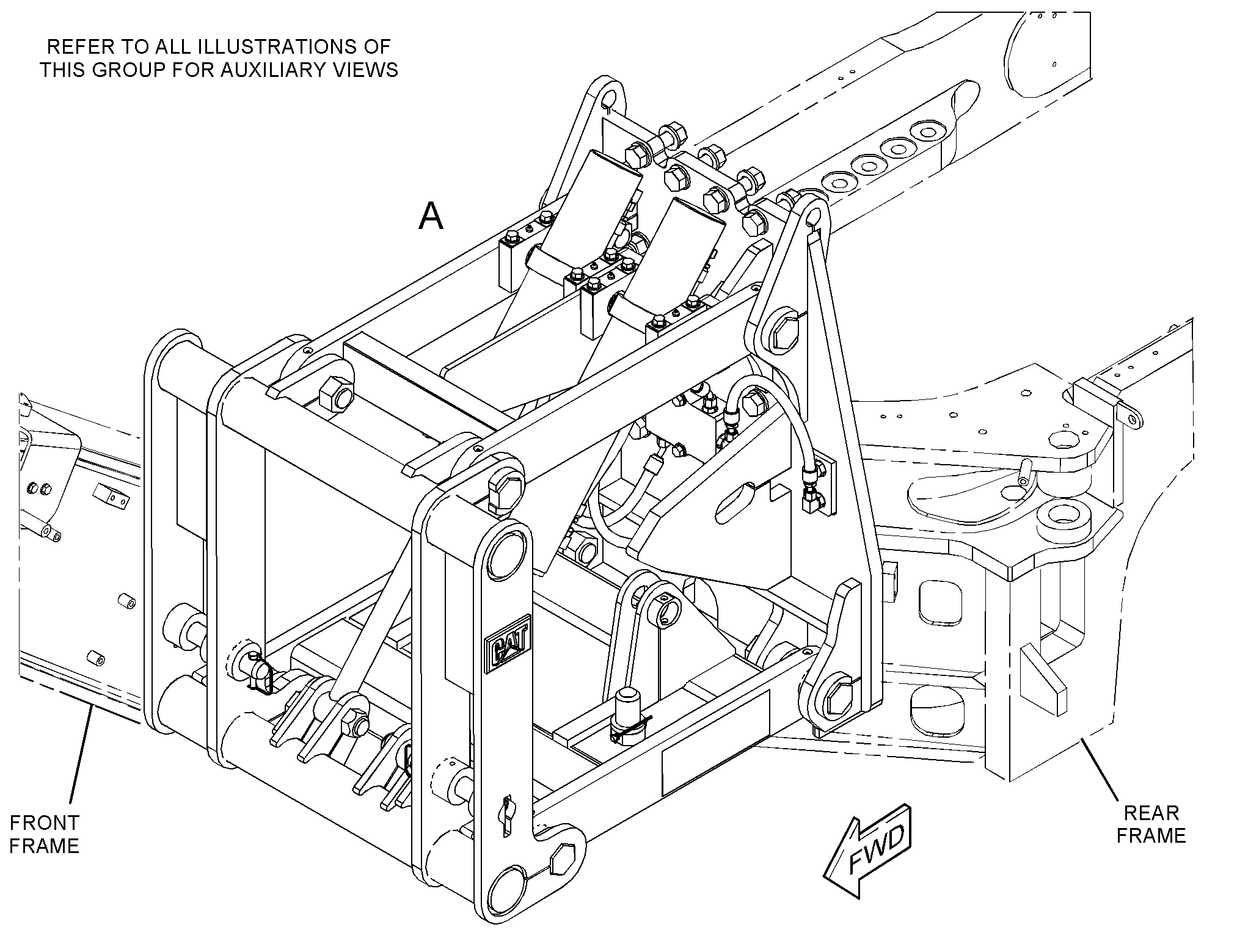

470-0417 LIFT GP-WORK TOOL -POWER SHIFTS/N N9S1-UP
Group No: 470-0417
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2K7468 | 1 LOCKNUT (1-1/4-12-THD) | 2 | |
| 7B8791 | 2 BOLT (1-1/4-12X4.75-IN) | 2 | |
| 1728122 | 3 PIN AS | 2 | |
| 1728126 | 4 FILM-WARNING (CRUSH HAZARD) | 1 | |
| 1783550 | 5 HOSE AS | 2 | |
| 2173501 | 6 CYLINDER GP-HYDRAULIC (WORK TOOL LIFT) | 2 | |
| 3811475 | 7 PLATE AS-MOUNTING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 4 | |
| 9S4190 | PLUG-O-RING (7/8-14-THD) | 4 | |
| 3811487 | 8 ARM AS (LOWER) | 1 | |
| 3811496 | 9 ARM AS-UPPER | 1 | |
| 5P8245 | WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 0L1329 | BOLT (1/2-13X3-IN) | 8 | |
| 1711296 | SHIM | 16 | |
| 3811502 | 10 FRAME AS-COUPLER | 1 | |
| 1614130 | PLATE-IDENTIFICATION (CAT) | 2 | |
| 3811512 | 11 PIN AS | 1 | |
| 3811518 | 12 HOSE AS | 2 | |
| 3811519 | 13 HOSE AS | 2 | |
| 4712104 | 14 TEE AS | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 2 | |
| 3K0360 | SEAL-O-RING | 2 | |
| 4712105 | BLOCK | 1 | |
| 0V0375 | 15 BOLT (1/2-13X3.25-IN) | 2 | |
| 1728125 | 16 PIN (SNAP) | 3 | |
| 2D7687 | 17 BOLT (1-1/2-12X8-IN) | 4 | |
| 2D8652 | 18 BEARING | 4 | |
| 2J3507 | 19 NUT-FULL (1-8-THD) | 10 | |
| 2M9780 | 20 SEAL-O-RING | 4 | |
| 3B8489 | 21 FITTING-GREASE (1/8-27 PTF) | 14 | |
| 3J1907 | 22 SEAL-O-RING | 4 | |
| 3K0360 | 23 SEAL-O-RING | 10 | |
| 5F9891 | 24 BOLT (1-1/2-12X6-IN) | 4 | |
| 5P8245 | 25 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 5P8250 | 26 WASHER (28X49X5-MM THK) | 20 | |
| 6V8397 | 27 SEAL-O-RING | 14 | |
| 6V8634 | 28 CONNECTOR | 4 | |
| 6V8723 | 29 ELBOW | 4 | |
| 6V8724 | 30 ELBOW | 4 | |
| 8T1683 | 31 ELBOW | 2 | |
| 9X2521 | 32 NUT-FULL | 8 | |
| 1D4640 | 33 BOLT (1-8X4.25-IN) | 10 |
