System And Components

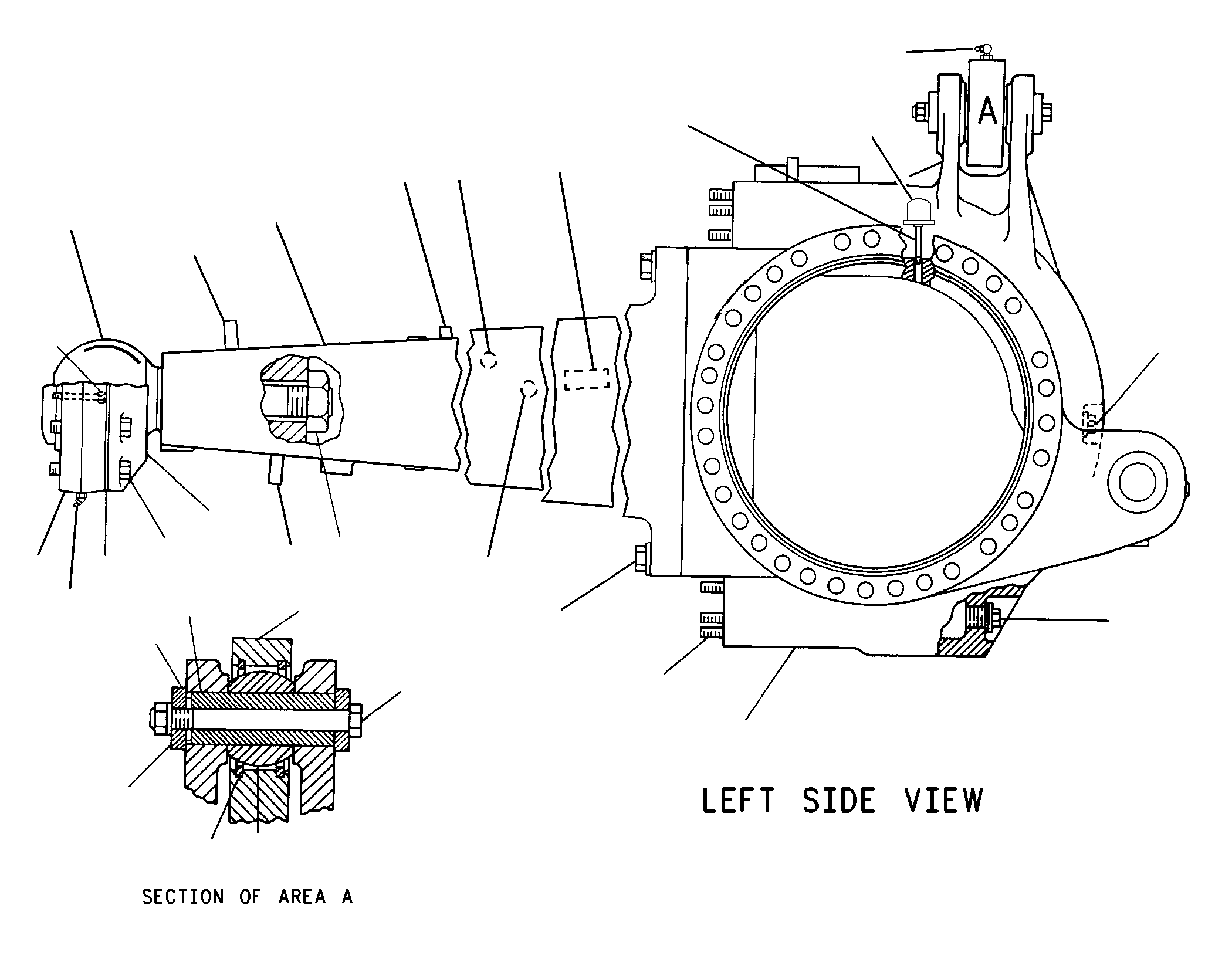

9D-6140 HOUSING GP-REAR AXLES/N 7CS1-UP
Group No: 9D-6140
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S1619 | 1 BOLT (3/8-16X3-IN) | 2 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 7D8666 | 2 KINGBOLT (2-1/4-12-THD) | 1 | |
| 8X8190 | 3 SUPPORT AS | 1 | |
| 8F9836 | 4 BOSS (3/8-16-THD) | 5 | |
| 4V4548 | 5 BOSS (3/8-16-THD) | 1 | |
| 8B1910 | 6 BOSS (3/8-16X0.95-IN) | 3 | |
| 7G3945 | 7 PLATE | 1 | |
| 5F7845 | 8 BOSS (50.8-MM LG) | 1 | |
| 9C4937 | 9 BREATHER AS (REAR AXLE) | 1 | |
| 5D3501 | 10 PLUG | 1 | |
| 6F4868 | 11 GASKET | 2 | |
| 8M5576 | 12 PLUG-MAGNETIC (AXLE OIL DRAIN) | 1 | |
| 2G0627 | 13 HOUSING AS-REAR AXLE | 1 | |
| 2D9345 | 14 STUD (5/8-11-THD) | 24 | |
| 3R2300 | 15 BOLT (1-1/4-7X4.5-IN) | 12 | |
| 4K0684 | WASHER-HARD (34X55X6-MM THK) | 12 | |
| 1D4623 | 16 BOLT (3/4-10X8.5-IN) | 2 | |
| 2J3506 | NUT-FULL (3/4-10-THD) | 2 | |
| 5P8248 | 17 WASHER-HARD (20X36.5X3.5-MM THK) | 10 | |
| 6J1144 | 18 BEARING (SELF ALIGNING) | 2 | |
| 4J4968 | 19 RING-LOCK | 4 | |
| 9M1608 | 20 WASHER (M19.84X66.67X15.88-MM) | 4 | |
| 9D2205 | 21 PIN | 2 | |
| 2114920 | 22 ROD (LATERAL CONTROL) | 1 | |
| 5D0916 | 23 NUT-STAKE | 1 | |
| 1S4103 | 24 CAP-BOLSTER | 1 | |
| 1D4614 | 25 BOLT (3/4-10X5-IN) | 8 | |
| 5D4363 | 26 SHIM (0.13-MM THK) | 8 | |
| 5D1500 | SHIM (0.25-MM THK) | 10 | |
| 5D1499 | SHIM (1.07-MM THK) | 4 | |
| 3B8485 | 27 ELBOW (REAR AXLE) | 1 | |
| 8D4105 | 28 SOCKET-BALL | 1 | |
| 4F0186 | 29 NIPPLE-PIPE | 1 | |
| 3B8488 | 30 FITTING-GREASE (1/8-27 PTF)(REAR AXLE) | 2 |
