System And Components

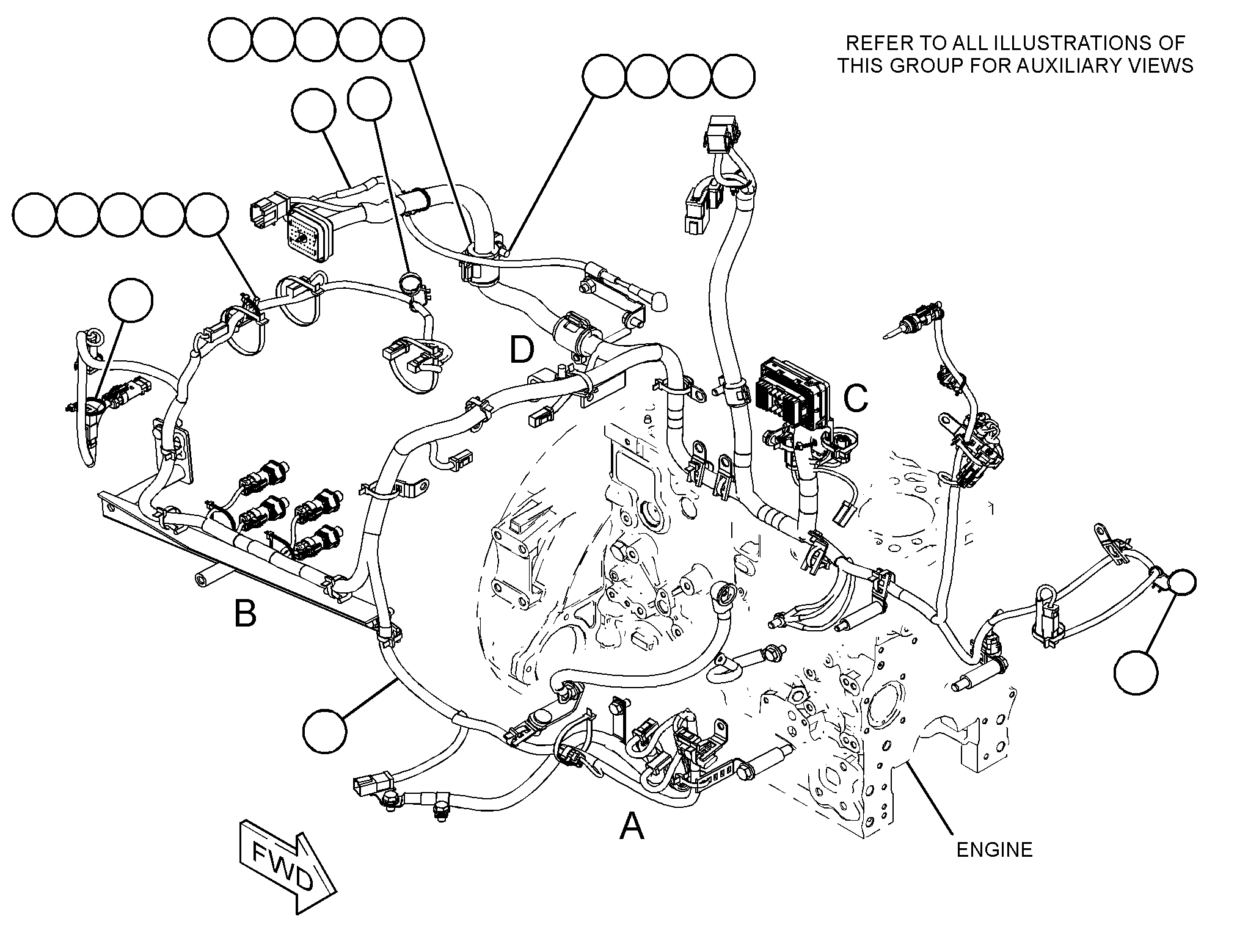

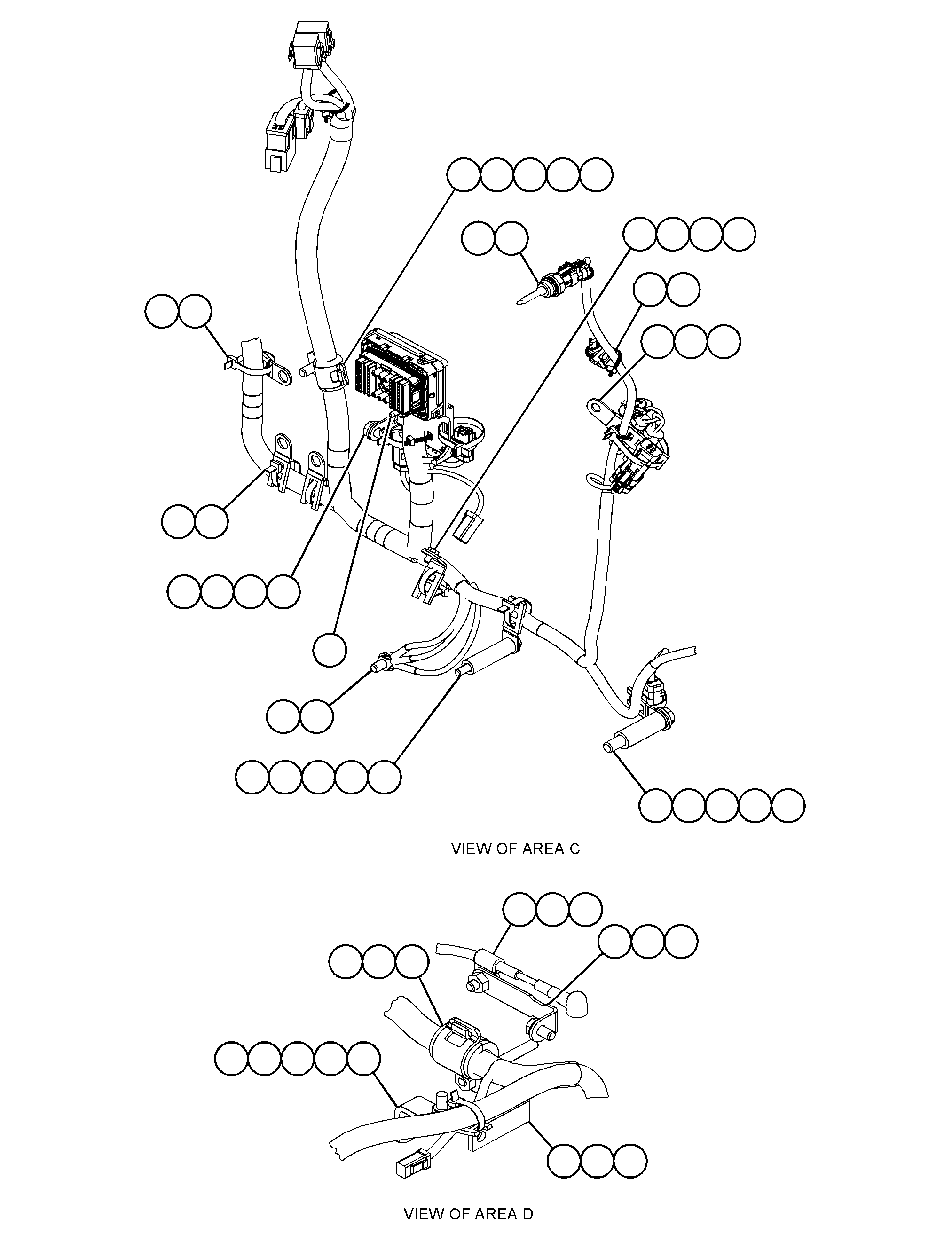

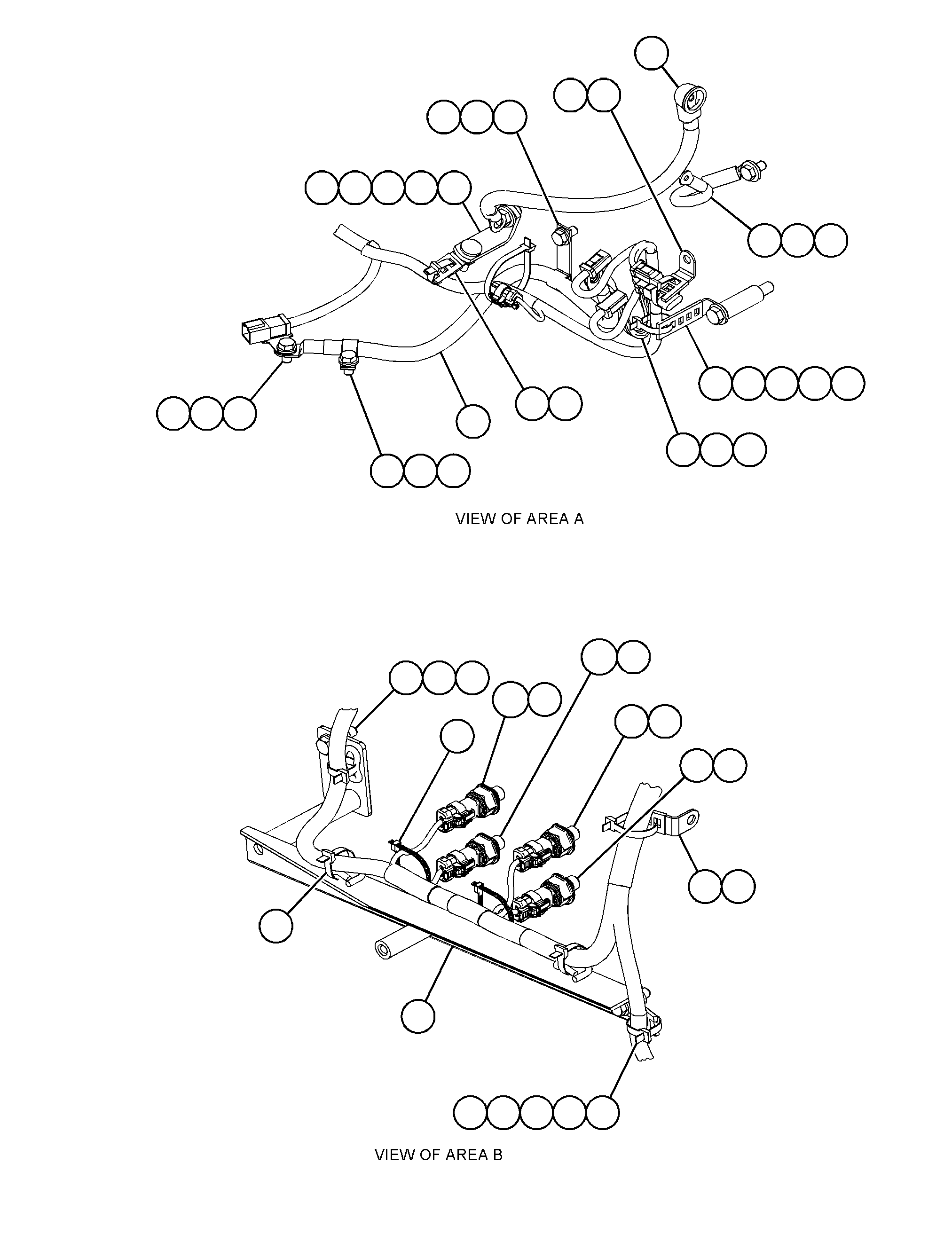

537-2009 WIRING GP-ENGINES/N EL71-UP; MGM1-UP
Group No: 537-2009
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4191 | 1 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4195 | 2 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4196 | 3 BOLT (M10X1.5X35-MM) | 2 | |
| 1305300 | 4 CLIP | 1 | |
| 3523968 | 5 CLIP (LADDER) | 1 | |
| 8T4179 | 6 BOLT (M12X1.75X20-MM) | 1 | |
| 8T6868 | 7 BOLT (M12X1.75X80-MM) | 2 | |
| 1P7009 | 8 CLIP | 1 | |
| 3J1907 | 9 SEAL-O-RING | 4 | |
| 3S2093 | 10 STRAP-CABLE | 12 | |
| 4K8864 | 11 CLIP (LOOP) | 1 | |
| 4P7428 | 12 CLIP (LADDER) | 4 | |
| 5P4116 | 13 WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 5P7464 | 14 CLIP (SLOT) | 2 | |
| 5P7465 | 15 CLIP (TAB) | 2 | |
| 5P9297 | 16 CLIP (LOOP) | 1 | |
| 6V7359 | 17 GROMMET (25-MM ID, 37-MM OD) | 2 | |
| 7K1181 | 18 STRAP-CABLE | 26 | |
| 7N0900 | 19 SPACER (0.423X0.675X2.38-IN) | 1 | |
| 7X7729 | 20 WASHER (11X25X3-MM THK) | 1 | |
| 8T1889 | 21 CLIP (SLOT) | 1 | |
| 8T1890 | 22 CLIP (TAB) | 1 | |
| 8T3647 | 23 BOLT (M8X1.25X80-MM) | 1 | |
| 8T4121 | 24 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4136 | 25 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 26 BOLT (M10X1.5X20-MM) | 7 | |
| 8T4171 | 27 BOLT (M6X1X12-MM) | 1 | |
| 8T4223 | 28 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T7524 | 29 SEAL-O-RING | 1 | |
| 8T7934 | 30 WASHER-HARD (11X21X5-MM THK) | 1 | |
| 9X2038 | 31 WASHER (7X19X2-MM THK) | 1 | |
| 1654388 | 32 SPACER (13X20X54-MM THK) | 2 | |
| 1772215 | 33 STRAP-DUAL CLAMP | 2 | |
| 1984777 | 34 WASHER-HARD (11X25X10-MM THK) | 1 | |
| 2062423 | 35 SADDLE-MOUNTING | 2 | |
| 2143509 | 36 BRACKET AS | 3 | |
| 2349525 | 37 STUD (M10X1.5-THD) | 1 | |
| 2566454 | 38 SENSOR-TEMPERATURE (2-PIN)(CHARGE AIR) | 1 | |
| 2922802 | 39 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(66-CM) | ||
| 3066687 | 40 STRAP AS | 1 | |
| 3445675 | 41 NUT (M10X1.5-THD) | 3 | |
| 3491178 | 42 SENSOR-PRESSURE (TRACK, LH) | 2 | |
| 3491178 | 42A SENSOR-PRESSURE (TRACK, RH) | 2 | |
| 3523969 | 43 CLIP (LADDER) | 1 | |
| 3577357 | 44 CABLE AS | 1 | |
| 8C0596 | CABLE (2-GA)(32-CM) | ||
| 0301712 | TERMINAL-RING (2-GA, 1/4-IN SCREW) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) | ||
| 3686266 | 45 BRACKET AS | 1 | |
| 3884900 | 46 BRACKET AS | 1 | |
| 3979301 | 47 WASHER-HARD (11.5X20X15-MM THK) | 2 | |
| 4334773 | 48 WIRE AS | 1 | |
| 4388052 | 49 CABLE AS | 1 | |
| 3L6513 | TERMINAL-RING (1-GA TO 2-GA, 1/2-IN SCREW) | 1 | |
| 6T5598 | TERMINAL-RING (1-GA TO 2-GA, 5/16-IN SCREW) | 1 | |
| 8C3056 | CABLE (2-GA, RED)(47-CM) | ||
| 1741712 | INSULATION (33-CM) | ||
| 3088161 | COVER-TERMINAL | 1 | |
| 3264516 | TIE-CABLE | 2 | |
| 4968148 | 50 BRACKET AS | 1 | |
| 2321693 | 51 BOLT-FLANGE HEAD (M6X1X35-MM) | 1 | |
| 3523970 | 52 CLIP (LADDER) | 1 | |
| 4P7581 | 53 CLIP (LADDER) | 6 | |
| 4P8134 | 54 CLIP (LADDER) | 4 | |
| 5372012 | 55 HARNESS AS-ENGINE | 1 | |
| 5G3676 | 56 GROMMET | 1 |
