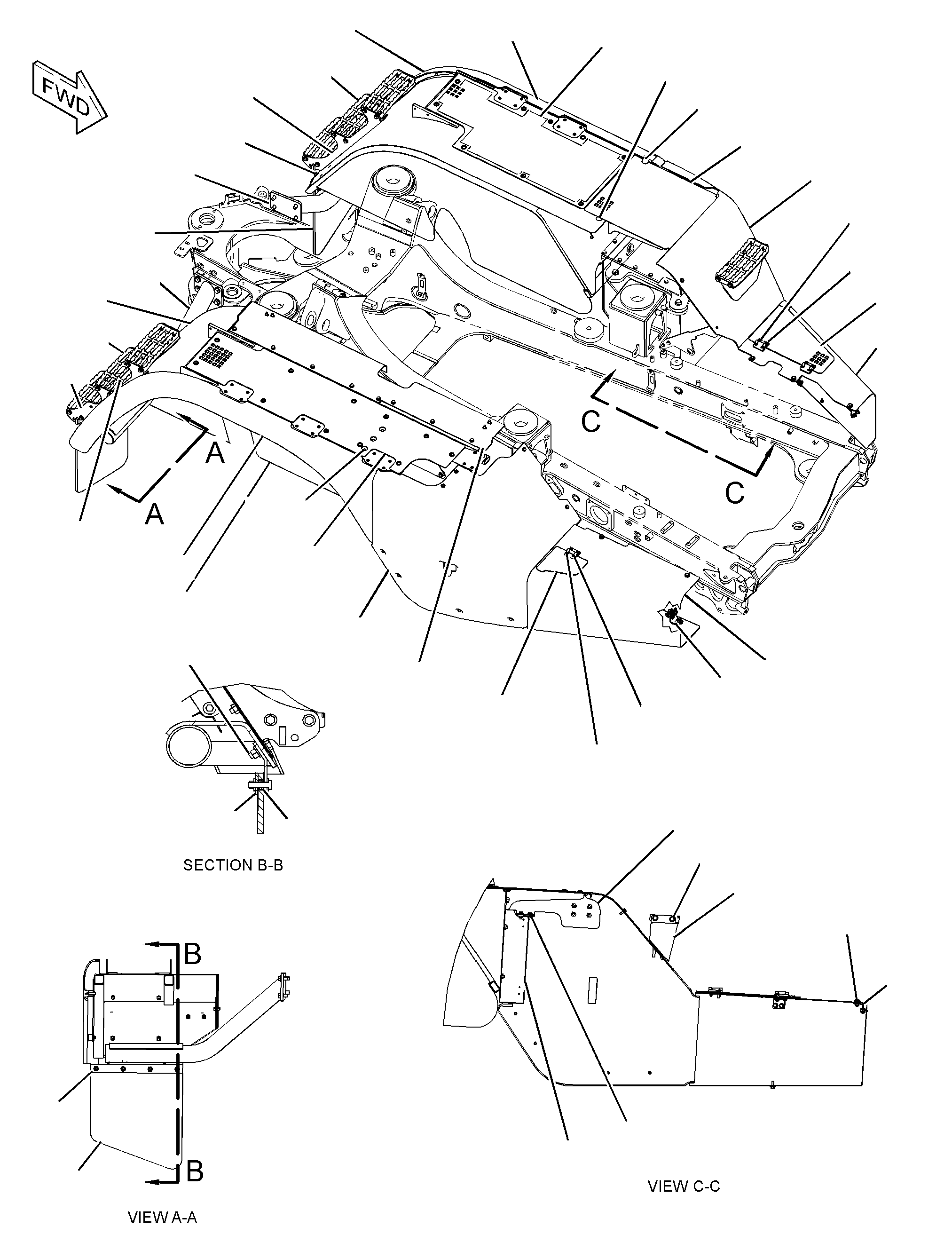

242-5567 FENDER & SUPPORT GPS/N B1M149-1692
Group No: 242-5567
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3W7412 | 1 BUMPER-CONICAL | 1 | |
| 6U5960 | 2 GROMMET | 5 | |
| 0910081 | 3 SPACER (10.5X20X10-MM THK) | 8 | |
| 1787385 | 4 BRACKET AS | 4 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 1853794 | 5 DEFLECTOR | 2 | |
| 1853795 | 6 PLATE | 2 | |
| 1890602 | 7 HINGE AS | 3 | |
| 1891516 | 8 PLATE | 1 | |
| 1892910 | 9 GASKET-RUBBER | 1 | |
| 1908678 | 10 COVER (LH) | 1 | |
| 1908680 | 11 COVER (RH) | 1 | |
| 1932126 | 12 COVER AS | 1 | |
| 1962181 | 13 PANEL GP-FENDER | 1 | |
| 1984776 | 14 WASHER-HARD (8.8X20X8-MM THK) | 1 | |
| 2032354 | 15 PLATE | 3 | |
| 2055148 | 16 SCREW-FLAT HEAD (M6X1X25-MM) | 6 | |
| 2055149 | 17 SCREW-FLAT HEAD (M6X1X30-MM) | 6 | |
| 2395015 | 18 STEP | 7 | |
| 2425556 | 19 SUPPORT AS | 1 | |
| 1741256 | PLATE | 1 | |
| 2425557 | 20 FENDER AS (LH) | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 24 | |
| 2533669 | 21 PLATE AS-TREAD (FRONT, LH) | 1 | |
| 2425559 | 22 SUPPORT (RH) | 1 | |
| 2425560 | 23 SUPPORT (LH) | 1 | |
| 2425561 | 24 PLATE (RH) | 1 | |
| 2425562 | 25 COVER-TANK | 1 | |
| 2425563 | 26 STEP AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 2425564 | 27 FENDER AS (RH) | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 28 | |
| 2425565 | 28 COVER-TANK | 1 | |
| 2537685 | 29 PLATE-TREAD (REAR, LH) | 1 | |
| 2426980 | 30 PLATE AS | 1 | |
| 2426982 | 31 PLATE AS (STEP) | 1 | |
| 2426985 | 32 SPACER (14X32X23 THK) | 10 | |
| 2536048 | 33 SUPPORT AS | 1 | |
| 2427470 | 34 COVER (LH) | 1 | |
| 2428219 | 35 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 2465351 | 36 PLATE | 1 | |
| 2465366 | 37 SUPPORT AS | 1 | |
| 1741256 | PLATE | 1 | |
| 2465367 | 38 COVER (RH) | 1 | |
| 2465369 | 39 PLATE AS-STEP (RH) | 1 | |
| 2486481 | 40 PLATE AS (STEP) | 1 | |
| 2486483 | 41 PLATE AS-STEP (RH) | 1 | |
| 1890599 | 42 PLATE | 6 | |
| 5C2890 | 43 NUT (M6X1-THD) | 12 | |
| 2630402 | 44 PLATE | 4 | |
| 5P1076 | 45 WASHER-HARD (13.5X30X4-MM THK) | 6 | |
| 5P4116 | 46 WASHER-HARD (8.8X20.5X2-MM THK) | 26 | |
| 6V8189 | 47 NUT (5/16-18-THD) | 1 | |
| 7X0579 | 48 WASHER-HARD (8.8X25.5X2-MM THK) | 10 | |
| 7X0613 | 49 WASHER-HARD (8.8X25.5X5-MM THK) | 8 | |
| 7X7729 | 50 WASHER (11X25X3-MM THK) | 86 | |
| 8C8585 | 51 SCREW-BUTTON HEAD (M10X1.5X20-MM) | 17 | |
| 8T4121 | 52 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4122 | 53 WASHER-HARD (17X32X3.5-MM THK) | 8 | |
| 8T4133 | 54 NUT (M10X1.5-THD) | 8 | |
| 8T4136 | 55 BOLT (M10X1.5X25-MM) | 53 | |
| 8T4137 | 56 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4139 | 57 BOLT (M12X1.75X30-MM) | 6 | |
| 8T4183 | 58 BOLT (M12X1.75X40-MM) | 8 | |
| 8T4186 | 59 BOLT (M10X1.5X40-MM) | 8 | |
| 8T4189 | 60 BOLT (M8X1.25X20-MM) | 8 | |
| 2535657 | 61 SHIM (1-MM THK) | 3 | |
| 8T4197 | 62 BOLT (M8X1.25X40-MM) | 10 | |
| 8T4223 | 63 WASHER-HARD (13.5X25.5X3-MM THK) | 16 | |
| 8T4244 | 64 NUT (M12X1.75-THD) | 8 | |
| 8T4779 | 65 BOLT (M16X2X35-MM) | 8 | |
| 8T4908 | 66 BOLT (M8X1.25X25-MM) | 23 | |
| 8T6408 | 67 BOLT (M10X1.5X160-MM) | 2 | |
| 8T7547 | 68 BOLT (M8X1.25X30-MM) | 2 | |
| 9X8256 | 69 WASHER (6.6X12X2-MM THK) | 14 | |
| 5U4229 | 70 LATCH | 1 | |
| 5C9553 | 71 BOLT (M6X1X16-MM) | 2 | |
| 2533671 | 72 GASKET | 3 |
