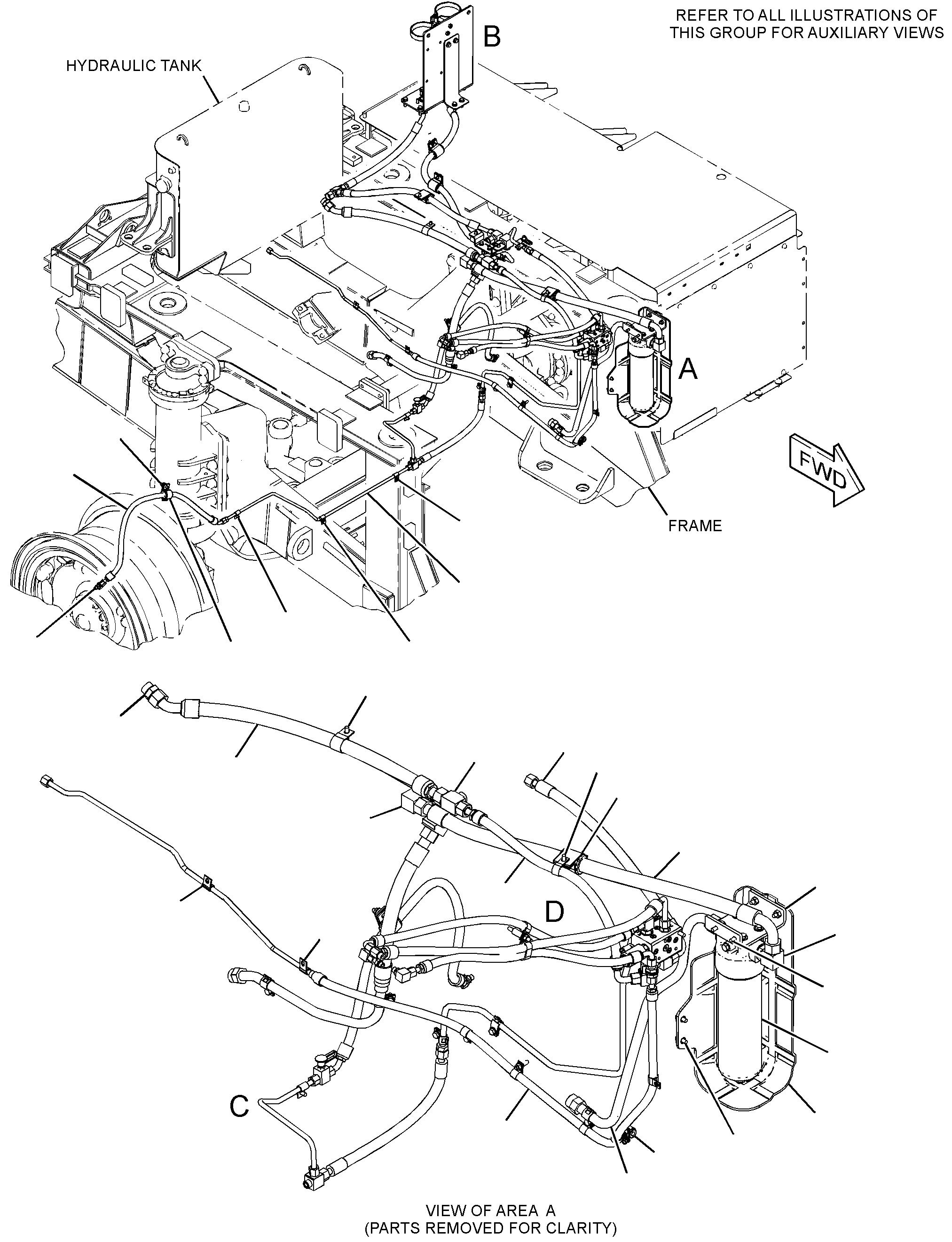

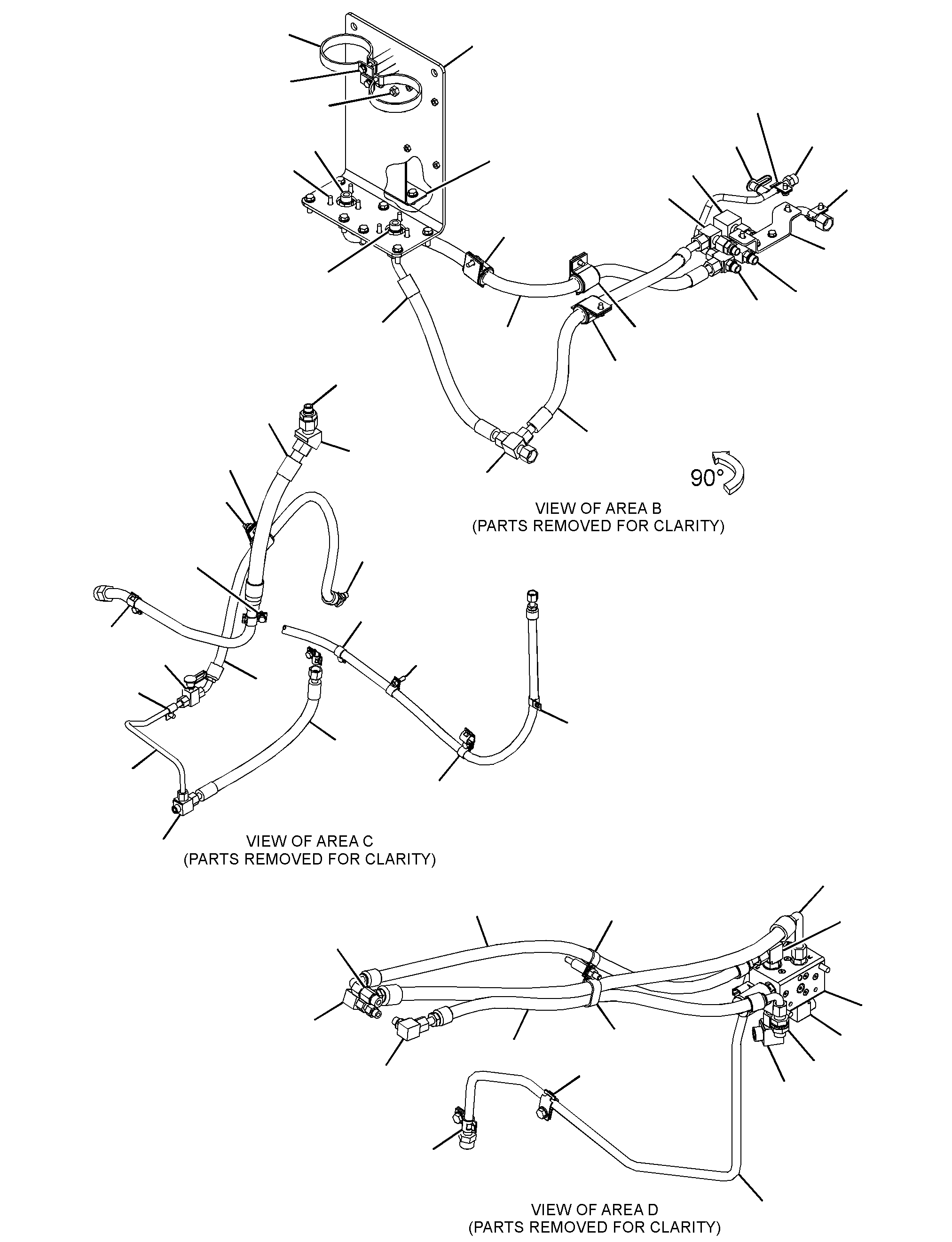

309-1631 CONTROL GP-SERVICE BRAKES/N LTS316-UP
Group No: 309-1631
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T0082 | 1 TEE | 1 | |
| 3176786 | 2 TUBE AS | 1 | |
| 3176860 | 3 HOSE AS | 1 | |
| 3348054 | 6 VALVE GP-BRAKE (FRONT SERVICE BRAKE) | 1 | |
| 3350980 | 7 FILTER GP-OIL (BRAKE SYSTEM) | 1 | |
| 3459824 | 8 TUBE AS | 1 | |
| 4234999 | 9 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 3481754 | 10 BRACKET | 1 | |
| 3481758 | 11 BRACKET | 1 | |
| 4235000 | 12 COVER | 1 | |
| 3535096 | 13 CONNECTOR AS | 1 | |
| 8T9386 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 4170250 | 14 HOSE & TUBE AS | 1 | |
| 3624839 | 15 HOSE AS | 1 | |
| 3624840 | 16 HOSE AS | 1 | |
| 3624841 | 17 HOSE AS | 1 | |
| 3624842 | 18 HOSE AS | 1 | |
| 3624843 | 19 TUBE AS | 1 | |
| 3624846 | 20 TUBE AS | 1 | |
| 3624851 | 21 TUBE AS | 1 | |
| 3624852 | 22 HOSE AS | 1 | |
| 3624855 | 23 HOSE & TUBE AS | 1 | |
| 3624862 | 24 HOSE AS | 1 | |
| 3626093 | 25 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 3 | |
| 3626598 | 26 HOSE AS | 1 | |
| 3635803 | 27 TUBE AS | 1 | |
| 3635804 | 28 HOSE AS | 1 | |
| 3647252 | 29 HOSE AS | 2 | |
| 3802000 | 30 HOSE AS | 1 | |
| 3802001 | 31 HOSE AS | 1 | |
| 1163715 | 32 STUD-TAPERLOCK (M10X1.5X85-MM) | 1 | |
| 1337810 | 33 STUD-TAPERLOCK (M10X1.5X45-MM) | 1 | |
| 1645567 | 34 COUPLER AS-QUICK DISCONNECT (MALE) | 3 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1803998 | 35 STUD (M10X1.5X55-MM) | 2 | |
| 1S0994 | 37 CLIP (LOOP) | 5 | |
| 2147568 | 38 SEAL-O-RING | 1 | |
| 2287090 | 39 SEAL-O-RING | 6 | |
| 2287091 | 40 SEAL-O-RING | 5 | |
| 2287092 | 41 SEAL-O-RING | 1 | |
| 2287093 | 42 SEAL-O-RING | 2 | |
| 2385081 | 43 SEAL-O-RING | 1 | |
| 2609221 | 45 ELBOW AS | 2 | |
| 9X2085 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2815975 | 46 ELBOW AS | 2 | |
| 6V8626 | ELBOW | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2815976 | 47 ELBOW AS | 1 | |
| 6V8629 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2815982 | 48 CONNECTOR AS | 1 | |
| 6V9874 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3095137 | 49 CONNECTOR AS | 3 | |
| 6V8635 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3159837 | 50 ELBOW AS | 1 | |
| 6V9854 | ELBOW (SWIVEL) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 3196217 | 51 CONNECTOR AS | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196220 | 52 ELBOW AS | 2 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196226 | 53 ELBOW AS | 1 | |
| 8T6876 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3196228 | 54 ELBOW AS | 1 | |
| 6V8721 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3196236 | 55 TEE AS | 1 | |
| 6V9839 | TEE-SWIVEL | 1 | |
| 2287092 | SEAL-O-RING | 2 | |
| 3218653 | 56 CONNECTOR AS | 1 | |
| 8T1687 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3295516 | 57 TEE AS | 1 | |
| 6V9032 | TEE-O-RING | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3309774 | 58 UNION AS | 1 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 3328592 | 59 ELBOW AS | 1 | |
| 1523411 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3353972 | 60 TEE AS | 1 | |
| 1584307 | TEE-UNION | 1 | |
| 2287092 | SEAL-O-RING | 2 | |
| 2287093 | SEAL-O-RING | 1 | |
| 3E6909 | 61 CLIP (LOOP) | 2 | |
| 4D7388 | 62 CLIP | 1 | |
| 5K1094 | 63 LOCKWASHER | 2 | |
| 5P7464 | 65 CLIP (SLOT) | 2 | |
| 5P7465 | 66 CLIP (TAB) | 2 | |
| 5P7466 | 67 CLIP (SLOT) | 3 | |
| 5P7467 | 68 CLIP (TAB) | 3 | |
| 5P7468 | 69 CLIP (SLOT) | 1 | |
| 5P7469 | 70 CLIP (TAB) | 1 | |
| 5P8112 | 71 GROMMET | 3 | |
| 5P8444 | 72 GROMMET (37-MM ID) | 1 | |
| 5P9299 | 73 CLIP (LOOP) | 4 | |
| 6D4247 | 74 CLIP | 1 | |
| 6V0852 | 75 CAP-DUST | 3 | |
| 6V1249 | 76 GROMMET (22-MM ID) | 2 | |
| 1488344 | 77 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9162 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 6V9169 | 78 NUT (13/16-16-THD) | 1 | |
| 6V9272 | 79 TEE-UNION | 1 | |
| 6V9809 | 80 ELBOW | 1 | |
| 6V9853 | 81 ELBOW | 1 | |
| 4I6287 | 82 COUPLING | 1 | |
| 7X3165 | 83 ADAPTER | 1 | |
| 7X7729 | 84 WASHER (11X25X3-MM THK) | 14 | |
| 8R0721 | 85 SPACER (11X16X35-MM THK) | 1 | |
| 8T1887 | 86 CLIP (SLOT) | 1 | |
| 8T1888 | 87 CLIP (TAB) | 1 | |
| 8T1889 | 88 CLIP (SLOT) | 3 | |
| 8T1890 | 89 CLIP (TAB) | 3 | |
| 8T4121 | 90 WASHER-HARD (11X21X2.5-MM THK) | 30 | |
| 8T4133 | 91 NUT (M10X1.5-THD) | 4 | |
| 8T4136 | 92 BOLT (M10X1.5X25-MM) | 15 | |
| 8T4137 | 93 BOLT (M10X1.5X20-MM) | 11 | |
| 8T4139 | 94 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4186 | 95 BOLT (M10X1.5X40-MM) | 8 | |
| 8T4195 | 96 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4198 | 97 BOLT (M10X1.5X100-MM) | 2 | |
| 8T4223 | 98 WASHER-HARD (13.5X25.5X3-MM THK) | 11 | |
| 9R1004 | 100 CLIP (TAB) | 3 | |
| 9R1005 | 101 CLIP (SLOT) | 3 | |
| 9X8250 | 102 CLIP (LOOP) | 1 | |
| 3840966 | 103 INSERT | 4 | |
| 2110714 | 104 SPACER (12.5X19X68.4-MM THK) | 2 | |
| 1221162 | 105 CLAMP | 2 | |
| 8T4183 | 106 BOLT (M12X1.75X40-MM) | 9 | |
| 7X2543 | 107 BOLT (M10X1.5X120-MM) | 2 | |
| 3537957 | 108 GROMMET | 1 | |
| 2042281 | 109 STRAP-CABLE | 2 | |
| 2006345 | 110 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 1771061 | 111 ELBOW AS | 1 | |
| 1420038 | ELBOW | 1 | |
| 5K9090 | SEAL-O-RING | 1 |
