System And Components

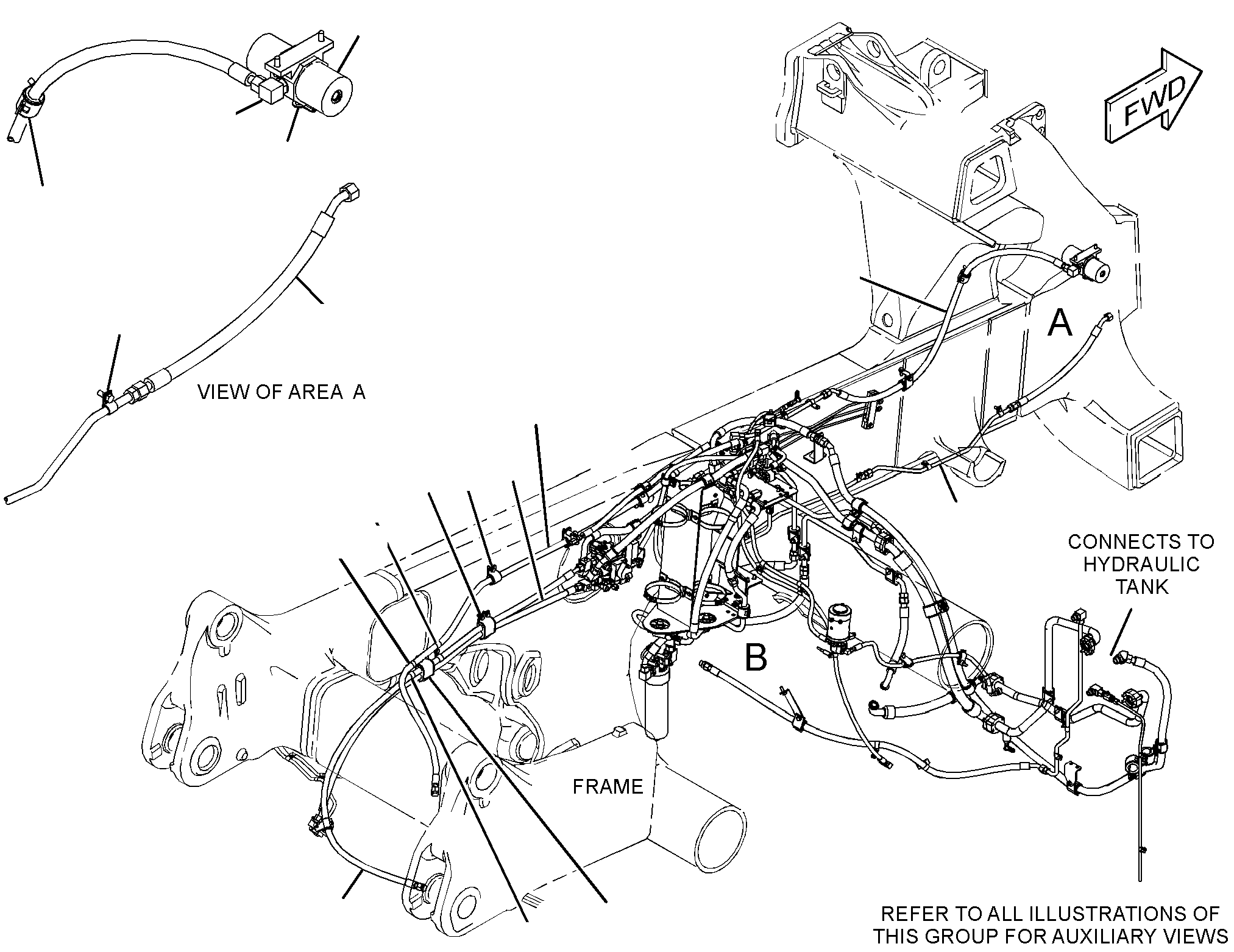

278-8455 CONTROL GP-SERVICE BRAKE -CHASSISS/N RBT165-165
Group No: 278-8455
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4285370 | 1 BRACKET AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 5T1060 | 4 PUMP & MOTOR GP-BRAKE RELEASE (PARKING, SECONDARY) | 1 | |
| 6N1709 | 5 SPACER (0.547X1.0X0.57-IN THK) | 1 | |
| 8C3451 | 6 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 8C8835 | 7 ADAPTER-BULKHEAD | 1 | |
| 9U4886 | 8 HOSE AS | 1 | |
| 1105918 | 9 VALVE-DRAIN (HYDRAULIC TANK) | 1 | |
| 1234750 | 10 VALVE AS-CHECK | 1 | |
| 1561382 | 11 SWITCH AS-DIFF PRESSURE (FILTER BYPASS) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE (14-CM) | ||
| 4194938 | 12 HOSE AS | 1 | |
| 2050560 | 13 SLACK ADJUSTER GP | 1 | |
| 2224744 | 14 VALVE GP-TRACTION CONTROL | 1 | |
| 2287413 | 15 HOSE AS | 1 | |
| 2343544 | 16 SEAL-O-RING | 3 | |
| 2371957 | 17 HOSE AS | 1 | |
| 2863475 | 18 HOSE AS | 1 | |
| 3350980 | 19 FILTER GP-OIL (BRAKE SYSTEM) | 1 | |
| 2991066 | 21 VALVE & MTG GP-BRAKE | 1 | |
| 2991080 | 22 HOSE AS | 1 | |
| 3017414 | 23 PLATE | 1 | |
| 3017424 | 24 TUBE AS | 1 | |
| 3017425 | 25 TUBE AS | 1 | |
| 3024629 | 27 HOSE AS | 1 | |
| 3028502 | 30 HOSE AS | 1 | |
| 3112574 | 31 HOSE AS | 1 | |
| 3117089 | 32 HOSE AS | 1 | |
| 3147616 | 33 HOSE AS | 1 | |
| 3198262 | 34 CLAMP | 4 | |
| 3201302 | 35 TUBE AS | 1 | |
| 3201303 | 36 TUBE AS | 1 | |
| 3201305 | 37 TUBE AS | 1 | |
| 3207424 | 39 TUBE AS | 1 | |
| 3207425 | 40 TUBE AS | 1 | |
| 3216875 | 41 TUBE AS | 1 | |
| 3216876 | 42 TUBE AS | 1 | |
| 4286634 | 43 HOSE AS | 1 | |
| 3267704 | 44 HOSE AS | 1 | |
| 3267705 | 45 HOSE AS | 1 | |
| 3357054 | 46 HOSE AS | 1 | |
| 3389262 | 47 HOSE AS | 1 | |
| 3399630 | 48 HOSE AS | 1 | |
| 3399752 | 49 PLATE | 1 | |
| 3410084 | 50 CONNECTOR AS | 1 | |
| 3E7412 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3416749 | 51 TUBE AS | 1 | |
| 3416751 | 52 PLATE AS | 2 | |
| 3416765 | 53 TUBE AS | 1 | |
| 3416766 | 54 TUBE AS | 1 | |
| 3419278 | 56 PLATE AS | 1 | |
| 3426587 | 57 HOSE AS | 1 | |
| 3483023 | 61 HOSE AS | 1 | |
| 3483024 | 62 HOSE AS | 1 | |
| 3634061 | 64 HOSE AS | 1 | |
| 3690750 | 65 PLATE AS | 1 | |
| 3741894 | 66 HOSE AS | 1 | |
| 3741895 | 67 TUBE AS | 1 | |
| 3741896 | 68 TUBE AS | 1 | |
| 3743110 | 69 HOSE AS | 1 | |
| 3866201 | 70 CONNECTOR AS | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3866200 | ADAPTER | 1 | |
| 3884839 | 71 HOSE AS | 1 | |
| 0961357 | 72 CLIP | 1 | |
| 1645567 | 73 COUPLER AS-QUICK DISCONNECT (MALE) | 3 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1705715 | 74 SEAL-O-RING | 1 | |
| 1732087 | 75 SPACER (11X20X28-MM THK) | 1 | |
| 1833399 | 76 CONNECTOR AS | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 1912962 | 77 SEAL-O-RING | 1 | |
| 1984777 | 78 WASHER-HARD (11X25X10-MM THK) | 4 | |
| 1997854 | 79 SPACER (11.8X20X45-MM THK) | 1 | |
| 1P4579 | 80 FLANGE-HALF | 8 | |
| 1S0496 | 81 CLIP | 1 | |
| 1W8793 | 82 SPACER (13.8X30X20-MM THK) | 2 | |
| 2213494 | 83 SEAL-O-RING | 7 | |
| 2287092 | 84 SEAL-O-RING | 5 | |
| 2287093 | 85 SEAL-O-RING | 4 | |
| 2352474 | 86 SEAL-RECTANGULAR | 1 | |
| 2352476 | 87 SEAL-RECTANGULAR | 2 | |
| 2385081 | 88 SEAL-O-RING | 1 | |
| 2385082 | 89 SEAL-O-RING | 1 | |
| 2443712 | 90 PLUG AS | 1 | |
| 2491771 | 91 STUD (M12X1.75X63-MM) | 1 | |
| 2501424 | 92 ELBOW AS | 1 | |
| 6V8724 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2815979 | 93 ELBOW AS | 2 | |
| 6V9007 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2977977 | 94 ELBOW AS | 2 | |
| 8C8988 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2N8928 | 95 CLIP | 1 | |
| 3102263 | 96 SPACER (14X26.85X46.5-MM THK) | 1 | |
| 3196208 | 97 ADAPTER AS | 1 | |
| 5P9617 | ADAPTER | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3196211 | 98 ADAPTER AS | 1 | |
| 2P8421 | ADAPTER-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3196216 | 99 CONNECTOR AS | 2 | |
| 6V8716 | CONNECTOR (STRAIGHT) | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196220 | 100 ELBOW AS | 3 | |
| 6V9008 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196225 | 102 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196245 | 103 ADAPTER AS | 1 | |
| 8T6663 | ADAPTER-PORT | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3198263 | 104 PLATE | 2 | |
| 3218649 | 105 VALVE AS-FLUID SAMPLING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3218660 | 106 TEE AS | 1 | |
| 6V8778 | TEE-FACE SEAL | 1 | |
| 2287093 | SEAL-O-RING | 2 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3239259 | 107 GROMMET | 2 | |
| 3295470 | 108 TEE AS | 1 | |
| 6V9840 | TEE-SWIVEL | 1 | |
| 2287093 | SEAL-O-RING | 2 | |
| 3309735 | 109 ELBOW AS | 1 | |
| 8T3491 | ELBOW | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3309756 | 110 TEE AS | 2 | |
| 7X0873 | TEE | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 3309757 | 111 ELBOW AS | 1 | |
| 8T1905 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2213494 | SEAL-O-RING | 1 | |
| 3309763 | 112 CONNECTOR AS | 1 | |
| 8C6872 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3353973 | 113 TEE AS | 1 | |
| 8C6515 | TEE | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3P2404 | 115 CLIP | 3 | |
| 4B0418 | 116 CLIP (LOOP) | 2 | |
| 4D2886 | 117 CLIP | 1 | |
| 4K8864 | 118 CLIP (LOOP) | 1 | |
| 4L6454 | 119 BOLT (3/8-16X1-IN) | 2 | |
| 5K9660 | 120 CLIP (LOOP) | 3 | |
| 5N8427 | 121 BOLT-MOTOR (M10X1.5X180-MM) | 3 | |
| 5P1480 | 122 SEAL-O-RING | 1 | |
| 5P2211 | 123 ADAPTER (1-1/16-12-THD) | 1 | |
| 5P4295 | 124 CLIP | 8 | |
| 5P7462 | 125 CLIP (SLOT) | 3 | |
| 5P7463 | 126 CLIP (TAB) | 3 | |
| 5P7464 | 127 CLIP (SLOT) | 2 | |
| 5P7465 | 128 CLIP (TAB) | 2 | |
| 5P7466 | 129 CLIP (SLOT) | 6 | |
| 5P7467 | 130 CLIP (TAB) | 6 | |
| 5P7468 | 131 CLIP (SLOT) | 17 | |
| 5P7469 | 132 CLIP (TAB) | 17 | |
| 5P7470 | 133 CLIP (SLOT) | 1 | |
| 5P7471 | 134 CLIP (TAB) | 1 | |
| 5P7703 | 135 GROMMET (52-MM ID) | 1 | |
| 5P8112 | 136 GROMMET | 6 | |
| 5P8444 | 137 GROMMET (37-MM ID) | 13 | |
| 5P8939 | 138 GROMMET | 2 | |
| 6D4246 | 139 CLIP (LOOP) | 5 | |
| 6D4636 | 140 CLIP (LOOP) | 1 | |
| 6V0545 | 141 GROMMET | 1 | |
| 6V0683 | 142 GROMMET | 3 | |
| 6V0852 | 143 CAP-DUST | 3 | |
| 6V1249 | 144 GROMMET (22-MM ID) | 1 | |
| 6V1572 | 145 CLIP (SLOT) | 2 | |
| 6V1573 | 146 CLIP (TAB) | 2 | |
| 6V1889 | 147 CLIP (LOOP) | 3 | |
| 6V7359 | 148 GROMMET (25-MM ID, 37-MM OD) | 1 | |
| 6V9168 | 149 NUT (11/16-16-THD) | 1 | |
| 7C4354 | 150 CLIP | 1 | |
| 7D7233 | 151 CLIP (LOOP) | 1 | |
| 7G3832 | 152 GROMMET | 2 | |
| 7G3833 | 153 CLIP (TAB) | 2 | |
| 7G3834 | 154 CLIP (SLOT) | 2 | |
| 7K3215 | 155 BOSS (0.413X1X0.630-IN THK) | 2 | |
| 7X3342 | 156 STUD-LOCKING (M12X1.75X60-MM) | 1 | |
| 8T1889 | 157 CLIP (SLOT) | 2 | |
| 8T1890 | 158 CLIP (TAB) | 2 | |
| 8T4121 | 159 WASHER-HARD (11X21X2.5-MM THK) | 29 | |
| 8T4133 | 160 NUT (M10X1.5-THD) | 8 | |
| 8T4136 | 161 BOLT (M10X1.5X25-MM) | 10 | |
| 8T4137 | 162 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 163 BOLT (M12X1.75X30-MM) | 13 | |
| 8T4182 | 164 BOLT (M10X1.5X45-MM) | 4 | |
| 8T4183 | 165 BOLT (M12X1.75X40-MM) | 11 | |
| 8T4184 | 166 BOLT (M12X1.75X45-MM) | 12 | |
| 8T4186 | 167 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4194 | 168 BOLT (M12X1.75X50-MM) | 2 | |
| 8T4195 | 169 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4198 | 171 BOLT (M10X1.5X100-MM) | 1 | |
| 8T4223 | 172 WASHER-HARD (13.5X25.5X3-MM THK) | 76 | |
| 8T4244 | 173 NUT (M12X1.75-THD) | 11 | |
| 8T4896 | 174 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 8T4910 | 175 BOLT (M12X1.75X60-MM) | 9 | |
| 8T4956 | 176 BOLT (M12X1.75X35-MM) | 17 | |
| 8T6466 | 177 BOLT (M10X1.5X60-MM) | 5 | |
| 8T6868 | 178 BOLT (M12X1.75X80-MM) | 1 | |
| 8T9518 | 179 GROMMET (24-MM ID) | 3 | |
| 4200938 | 180 PLATE AS | 1 | |
| 4187805 | 181 HOSE AS | 1 | |
| 3295520 | 182 UNION AS | 1 | |
| 6V8998 | UNION | 1 | |
| 2287093 | SEAL-O-RING | 2 | |
| 3275216 | 183 CLIP (LOOP) | 1 | |
| 3196219 | 184 ELBOW AS | 1 | |
| 6V9005 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 7X7729 | 185 WASHER (11X25X3-MM THK) | 1 | |
| 6V9172 | 186 NUT (1-7/16-12-THD) | 1 |
