System And Components

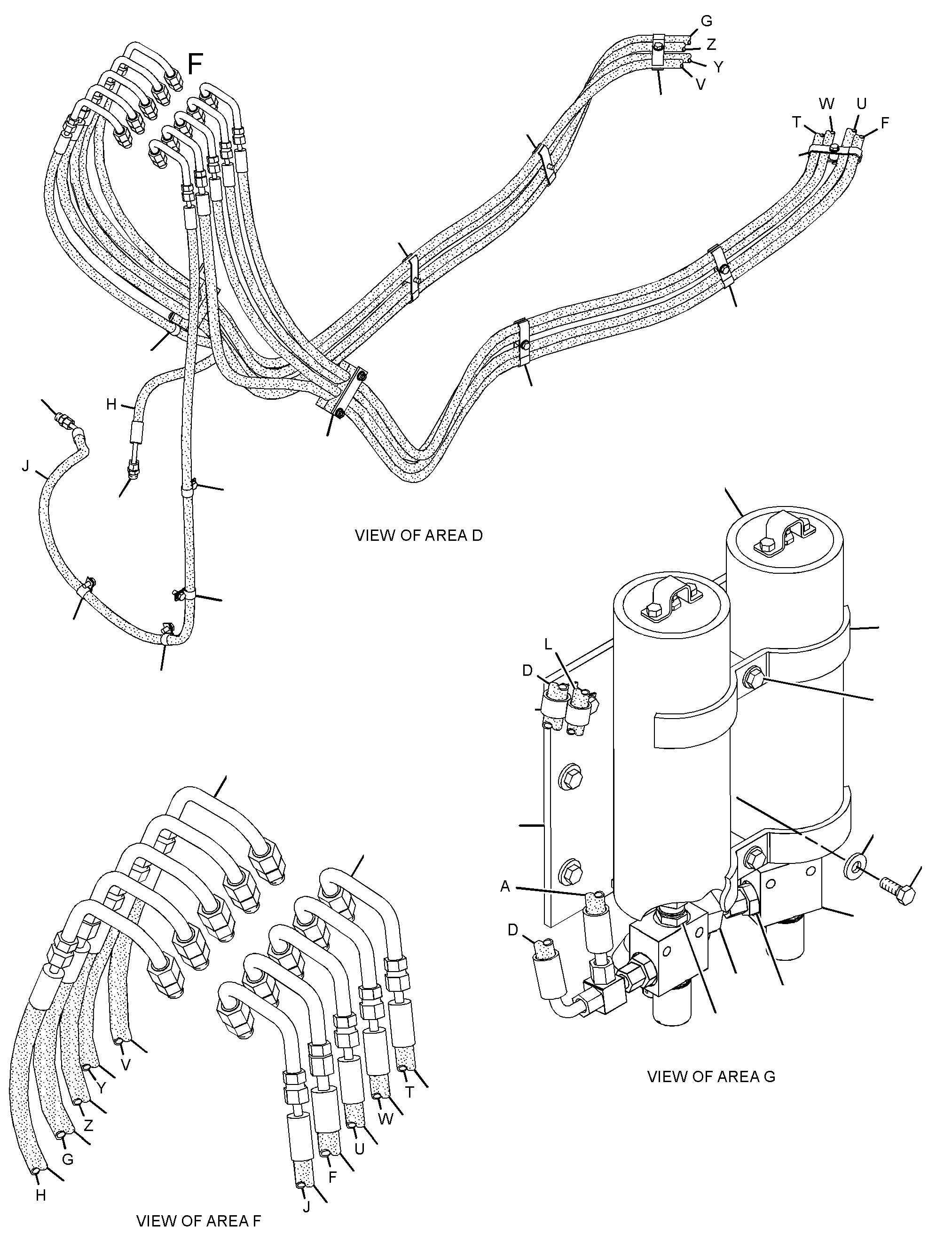

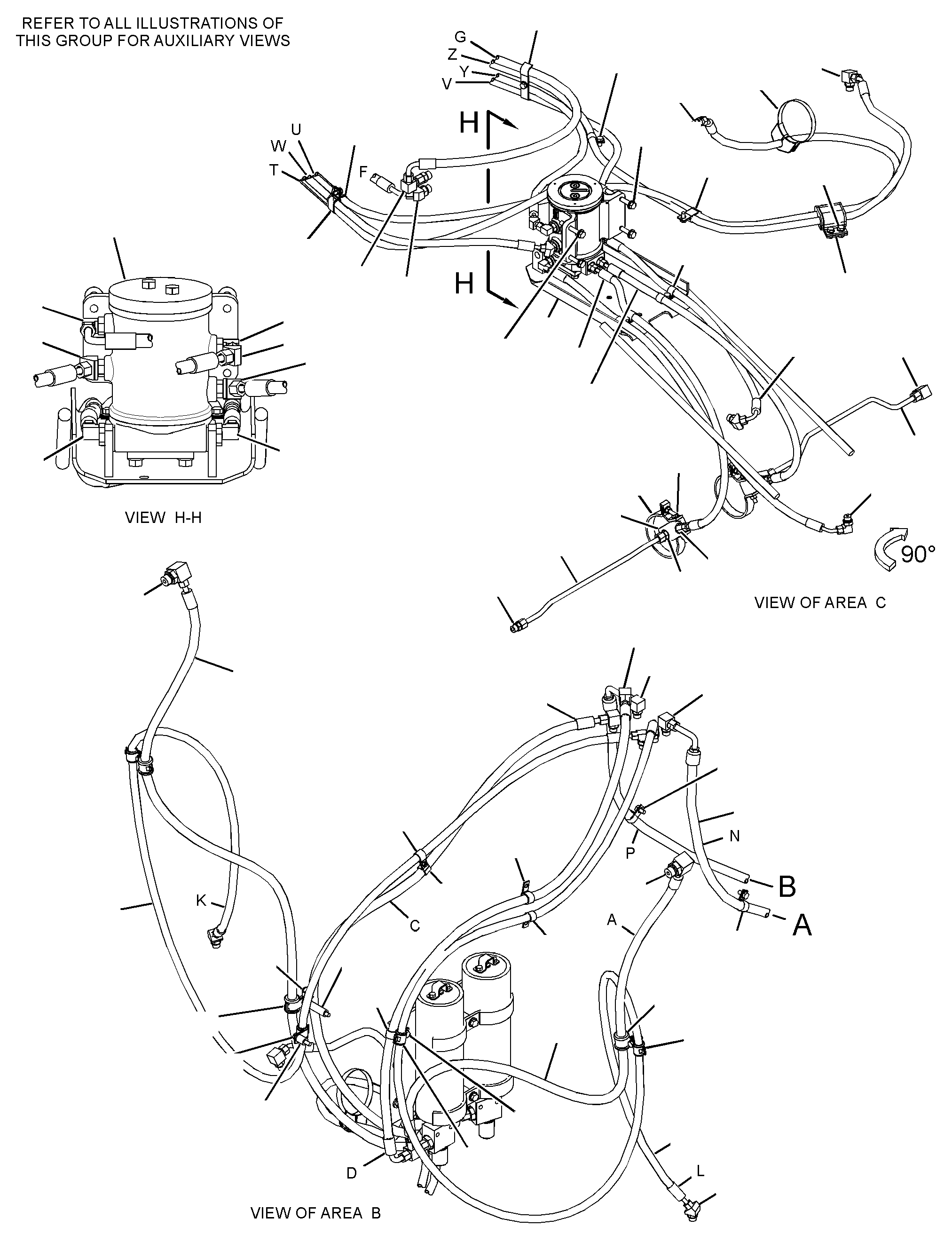

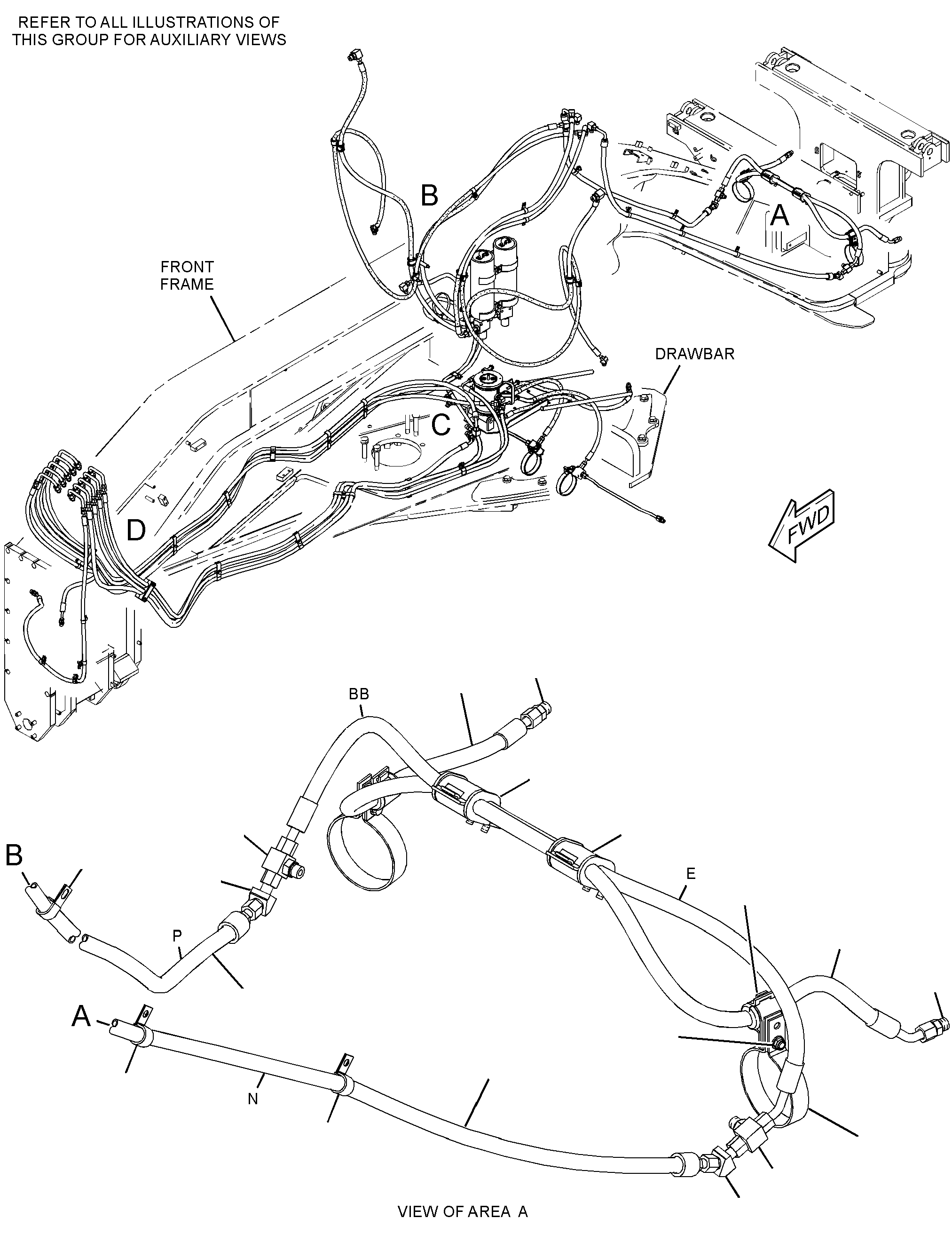

287-7454 LINES GP-ACCUMULATOR -EUROPEAN MARKETS/N R9H223-UP
Group No: 287-7454
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4N5091 | 1 SPACER (0.53X1X3.375-IN THK) | 2 | |
| 8W3989 | 2 CLAMP | 2 | |
| 8W3990 | 3 CLAMP | 2 | |
| 8W3991 | 4 JUNCTION BLOCK | 2 | |
| 9M4594 | 5 SPACER (0.406X0.875X0.75-IN THK) | 6 | |
| 1027886 | 6 SPACER (11X20X80-MM THK) | 1 | |
| 1070211 | 7 CLAMP | 2 | |
| 5P0599 | 8 CLAMP-BAND | 1 | |
| 1627449 | 9 CLAMP | 2 | |
| 1716466 | 10 UNION AS | 2 | |
| 5P9810 | UNION | 1 | |
| 3D2824 | SEAL-O-RING | 2 | |
| 3561241 | 11 ACCUMULATOR GP-BLADE CUSHION (CHARGED) | 2 | |
| 2466341 | 12 CLAMP | 3 | |
| 2466342 | 13 CLAMP | 12 | |
| 3223798 | 14 MANIFOLD GP-CONTROL (ACCUMULATOR)(BLADE CUSHION) | 2 | |
| 2595418 | 15 BLOCK | 2 | |
| 2595419 | 16 PLATE | 2 | |
| 2595898 | 17 BLOCK | 2 | |
| 2699517 | 18 TUBE AS | 1 | |
| 2699518 | 19 TUBE AS | 1 | |
| 2699521 | 21 GUIDE AS-HOSE | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 2699522 | 22 TUBE AS | 5 | |
| 2699523 | 23 TUBE AS | 5 | |
| 2739589 | 24 BLOCK | 1 | |
| 2748312 | 25 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 2862243 | 26 HOSE AS | 1 | |
| 2862244 | 27 HOSE AS | 1 | |
| 2884543 | 28 HOSE AS | 1 | |
| 2884544 | 29 HOSE AS | 1 | |
| 2884545 | 30 HOSE AS | 1 | |
| 2884546 | 31 HOSE AS | 1 | |
| 2885211 | 32 HOSE AS | 1 | |
| 2885364 | 33 HOSE AS | 1 | |
| 2886112 | 34 HOSE AS | 1 | |
| 2886113 | 35 HOSE AS | 1 | |
| 8T0389 | 38 LOCKNUT (M10X1.5-THD) | 6 | |
| 1004336 | 39 CLIP (LOOP) | 2 | |
| 1549650 | 40 HOSE AS | 1 | |
| 1158428 | 41 HOSE AS | 1 | |
| 1336934 | 42 SPACER (11X20X25-MM THK) | 2 | |
| 1362617 | 43 HOSE AS | 1 | |
| 1488318 | 44 CONNECTOR AS | 5 | |
| 6V8634 | CONNECTOR (SEAL) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488328 | 45 CONNECTOR AS | 2 | |
| 6V8633 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488340 | 46 CONNECTOR AS | 6 | |
| 6V8639 | CONNECTOR (SEAL) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488342 | 47 CONNECTOR AS | 10 | |
| 6V8632 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488345 | 48 CONNECTOR AS | 1 | |
| 6V8638 | CONNECTOR (O-RING) | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488358 | 49 ELBOW AS | 1 | |
| 6V8624 | ELBOW (FACE SEAL) | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488363 | 50 ELBOW AS | 5 | |
| 6V9876 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488364 | 51 ELBOW AS | 5 | |
| 6V8625 | ELBOW (90-DEG) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488370 | 52 ELBOW AS | 2 | |
| 6V9851 | ELBOW (SWIVEL) | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488371 | 53 ELBOW AS | 1 | |
| 8C8988 | ELBOW (SWIVEL) | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488374 | 54 ELBOW AS (90-DEG) | 6 | |
| 6V8723 | ELBOW (90-DEG) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488381 | 55 ELBOW AS | 2 | |
| 8T5429 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488436 | 56 TEE AS | 2 | |
| 6V8775 | TEE-FACE SEAL | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1488444 | 57 TEE AS-SWIVEL | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1645605 | 58 CONNECTOR AS | 2 | |
| 8T0076 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645608 | 59 CONNECTOR AS | 1 | |
| 8T1687 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1S0994 | 60 CLIP (LOOP) | 2 | |
| 2370364 | 61 HOSE AS | 1 | |
| 2399779 | 62 HOSE AS | 1 | |
| 2455793 | 63 HOSE AS | 1 | |
| 2505613 | 64 HOSE AS | 1 | |
| 3618144 | 65 SWIVEL GP (CIRCLE DRIVE) | 1 | |
| 2764672 | 66 HOSE AS | 1 | |
| 2825967 | 67 HOSE AS | 1 | |
| 3G8047 | 70 GROMMET | 2 | |
| 3G8054 | 71 CLIP (TAB) | 3 | |
| 3G8057 | 72 CLIP (SLOT) | 3 | |
| 5P1076 | 73 WASHER-HARD (13.5X30X4-MM THK) | 3 | |
| 5P7464 | 74 CLIP (SLOT) | 2 | |
| 5P7465 | 75 CLIP (TAB) | 2 | |
| 5T9686 | 76 HOSE AS | 2 | |
| 6D4246 | 77 CLIP (LOOP) | 12 | |
| 6V0974 | 78 GROMMET | 1 | |
| 6V1249 | 79 GROMMET (22-MM ID) | 2 | |
| 6V8398 | 80 SEAL-O-RING | 10 | |
| 8T4121 | 84 WASHER-HARD (11X21X2.5-MM THK) | 51 | |
| 8T4133 | 85 NUT (M10X1.5-THD) | 7 | |
| 8T4136 | 86 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4137 | 87 BOLT (M10X1.5X20-MM) | 13 | |
| 8T4139 | 88 BOLT (M12X1.75X30-MM) | 3 | |
| 8T4186 | 89 BOLT (M10X1.5X40-MM) | 6 | |
| 8T4195 | 90 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4196 | 91 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4198 | 92 BOLT (M10X1.5X100-MM) | 1 | |
| 8T4223 | 93 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T5001 | 96 BOLT (M12X1.75X130-MM) | 2 | |
| 8T6466 | 97 BOLT (M10X1.5X60-MM) | 1 | |
| 8T4172 | 99 BOLT (M10X1.5X80-MM) | 2 | |
| 8W2543 | 100 HOSE AS | 1 | |
| 9X8250 | 102 CLIP (LOOP) | 4 | |
| 3548469 | 104 HOSE AS | 1 | |
| 3548468 | 105 HOSE AS | 1 | |
| 6D4244 | 107 CLIP (LOOP) | 5 | |
| 1536241 | 108 ELBOW AS | 2 | |
| 8C8989 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 5G3676 | 109 GROMMET | 4 | |
| 8T1889 | 110 CLIP (SLOT) | 4 | |
| 8T1890 | 111 CLIP (TAB) | 4 | |
| 8T1897 | 112 CLIP (SLOT) | 3 | |
| 8T1898 | 113 CLIP (TAB) | 3 | |
| 8T4185 | 114 BOLT (M10X1.5X50-MM) | 3 | |
| 1220450 | 115 GROMMET | 3 | |
| 2860433 | 116 BOLT (M12X1.75X100-MM) | 2 | |
| 0925524 | 117 BOLT (M12X1.75X80-MM) | 2 |
