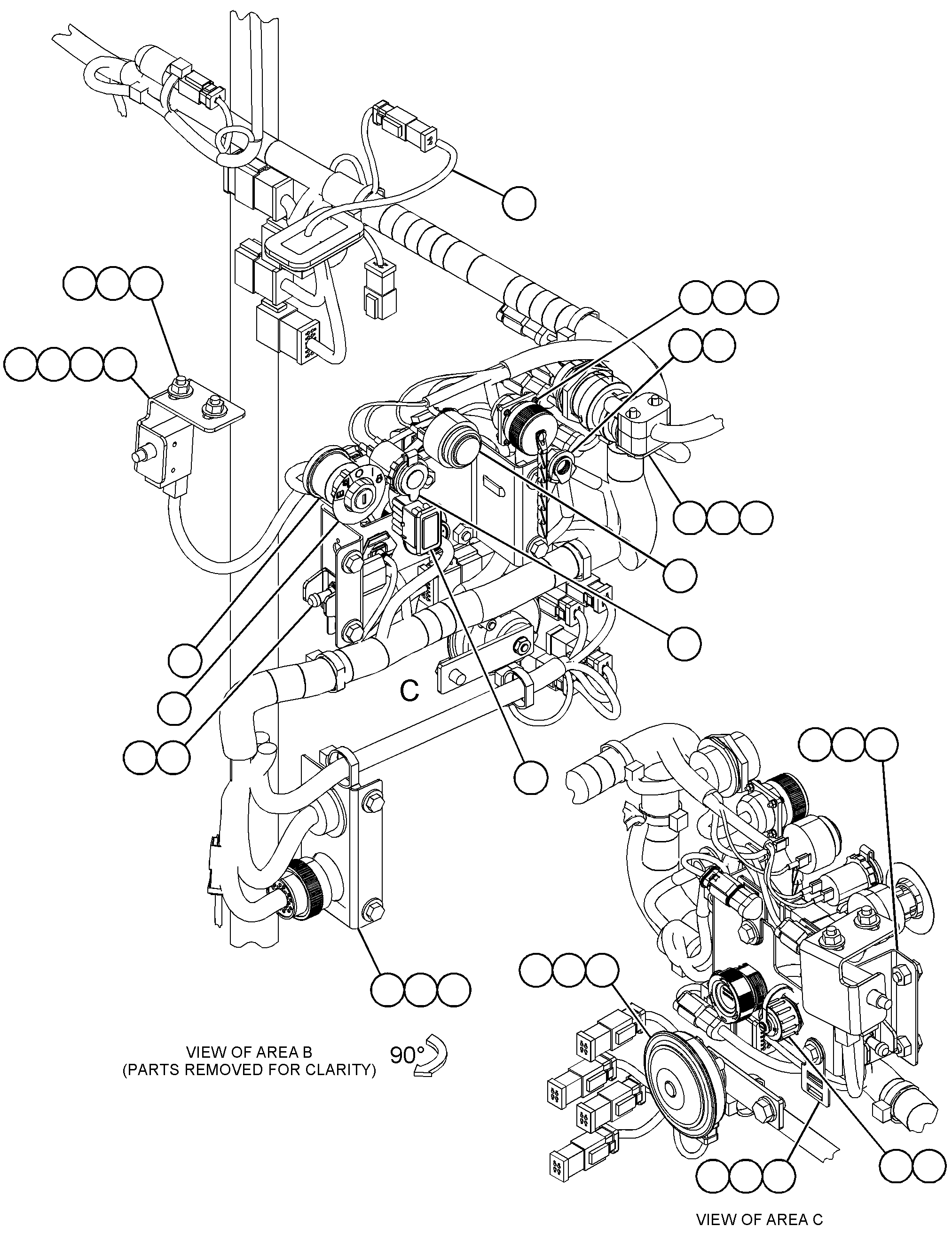

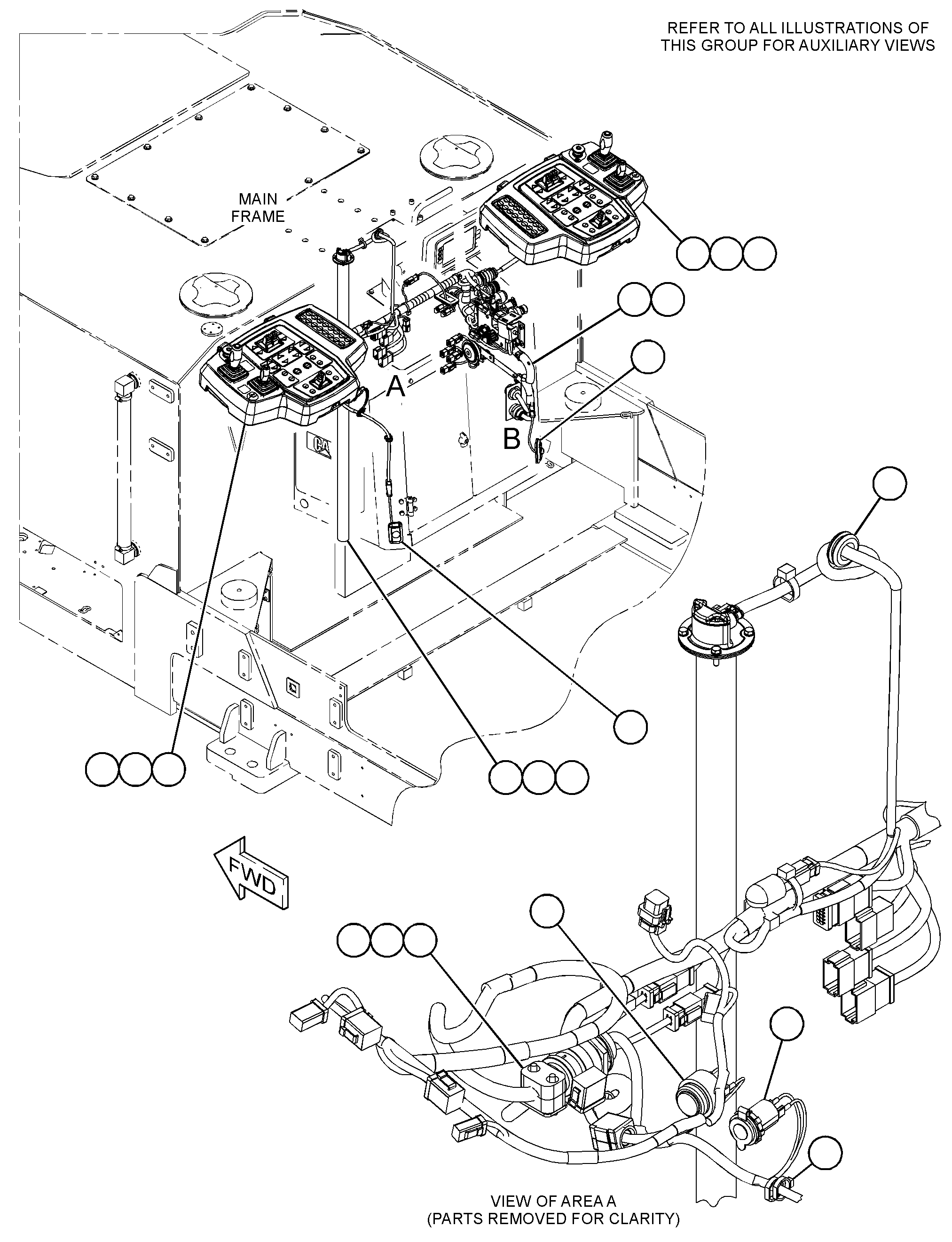

508-8518 CONSOLE GP-OPERATORS/N 8RF1-299

Group No: 508-8518

Part Number	Part Name	Qty
4218512	1 PLUG	1
3S2093	2 STRAP-CABLE	4
6V9671	3 SCREW-MACHINE (M3X0.5X12-MM)	4
7I2272	4 BOLT (M5X0.8X12-MM)	4
8T0328	5 WASHER-HARD (5.5X10X1-MM THK)	4
1074749	6 PLATE (TOP)(TOP)	2
1460240	7 SWITCH GP-TOGGLE (LOCKING)	1
1747875	8 HORN AS (24-VOLT, HIGH TONE)	1
1787539	9 RECEPTACLE AS (POWER SUPPLY)(12V)	2
2298757	10 SWITCH AS-LIMIT	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	3
1028803	KIT-RECEPTACLE (3-PIN)	1
2321792	11 HORN (24-VOLT TO 12-VOLT)	2
2552752	12 SWITCH GP-START (IGNITION)	1
7T6799	NUT-MOUNTING (1-32-THD)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	5
8T8737	PLUG-SEAL	1
1028805	KIT-RECEPTACLE (6-PIN)	1
2659984	13 BRACKET	1
3447618	14 COVER-SEAL	1
3747677	15 CONSOLE GP-INSTRUMENT (RH)	1
3747678	16 CONSOLE GP-INSTRUMENT (LH)	1
3891407	17 BRACKET AS	1
8T3612	NUT-WELD (M8X1.25-THD)	8
3908511	18 LAMP GP (24-VOLT)(UTILITY)	3
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
1028802	KIT-RECEPTACLE (2-PIN)	1
3975158	19 BRACKET AS	1
8T3612	NUT-WELD (M8X1.25-THD)	2
3983073	20 CABLE AS	1
3314222	KIT-CONNECTING PLUG (12-PIN)	1
1552255	KIT-CONNECTING PLUG (12-PIN)	1
3447617	RECEPTACLE AS	1
1690705	PLUG-SEAL	8
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	4
1261768	SOCKET-CONNECTOR (14-GA TO 16-GA)	4
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM)
4707356	21 BRACKET	1
5029043	22 SENSOR AS-LIQUID LEVEL (WATER LEVEL)	1
5197988	23 HARNESS AS-CONSOLE	1
0932069	24 GROMMET	1
1305300	25 CLIP	7
2066418	26 CLAMP-HALF	4
3C6969	27 NUT (M3X0.5-THD)	4
4B4280	28 WASHER (13.5X27X2.5-MM THK)	1
5C7261	29 NUT (M8X1.25-THD)	2
5P4116	30 WASHER-HARD (8.8X20.5X2-MM THK)	22
7K1181	31 STRAP-CABLE	13
8C8451	32 BOLT (M6X1X40-MM)	4
8T4121	33 WASHER-HARD (11X21X2.5-MM THK)	1
8T4189	34 BOLT (M8X1.25X20-MM)	2
8T4191	35 BOLT (M10X1.5X16-MM)	1
8T4200	36 BOLT (M8X1.25X16-MM)	18
8T4244	37 NUT (M12X1.75-THD)	1
9B1117	38 LOCKWASHER	4
4707126	39 FILM-IDENTIFICATION (IGNITION SWITCH, READ OMM)	1
