System And Components

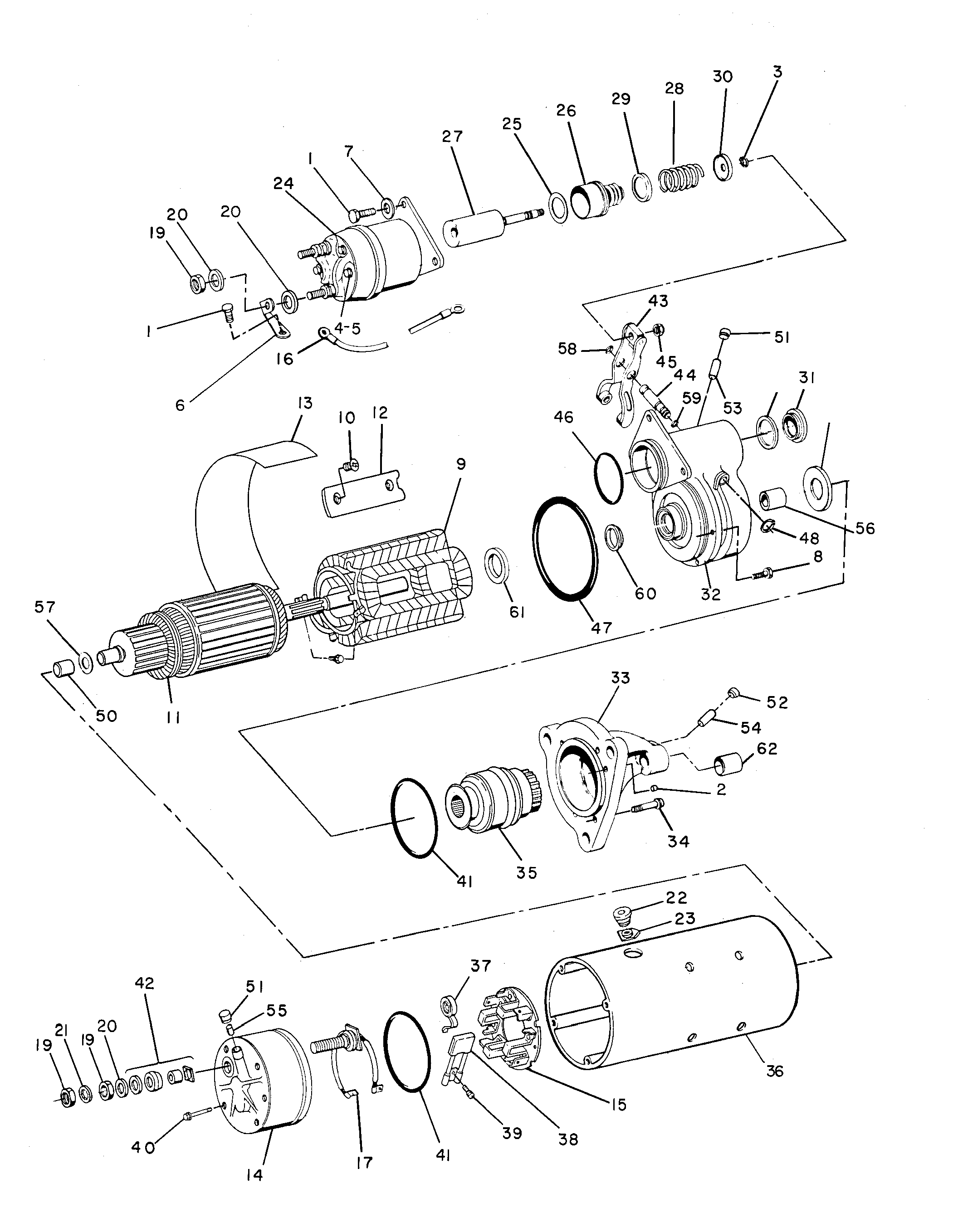

8C-3592 STARTING MOTOR GP-ELECTRICPART OF 9Y-7129 STARTING MOTOR GP-ELECTRIC
Group No: 8C-3592
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5S7349 | 1 BOLT (1/4-20X0.5-IN) | 4 | |
| 3T3434 | 2 PLUG | 6 | |
| 2H3429 | 3 RING-RETAINING | 1 | |
| 6V8378 | 4 NUT (10-32-THD) | 2 | |
| 8F1434 | 5 LOCKWASHER | 2 | |
| 7T3271 | 6 CONNECTOR | 1 | |
| 8T4205 | 7 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 0369823 | 8 BOLT (1/4-28X1-IN) | 5 | |
| 8T8568 | 9 COIL AS-FIELD | 1 | |
| 3F0379 | 10 SCREW-POLE SHOE (3/8-24-THD) | 8 | |
| 7T3275 | 11 ARMATURE AS (12-VOLT) | 1 | |
| 8H1141 | 12 SHOE-POLE | 4 | |
| 7T3454 | 13 INSULATOR | 1 | |
| 7T3279 | 14 HOUSING AS | 1 | |
| 8T8570 | 15 HOLDER AS-BRUSH | 1 | |
| 3T3422 | 16 WIRE AS | 1 | |
| 8T8566 | 17 TERMINAL AS | 1 | |
| 7L2894 | 18 GASKET | 1 | |
| 6V8188 | 19 NUT (1/2-13-THD) | 4 | |
| 7X0562 | 20 WASHER-HARD (13.5X19X0.8-MM THK) | 4 | |
| 8T0328 | 21 WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 7T3451 | 22 KIT-INSULATOR (STARTING MOTOR) | 1 | |
| 8T8569 | 23 INSULATOR-TERMINAL | 1 | |
| 3E5449 | 24 SOLENOID AS-STARTING MOTOR (12-VOLT) | 1 | |
| 0369821 | 25 WASHER | 1 | |
| 7T3269 | 26 BOOT | 1 | |
| 7T3270 | 27 PLUNGER AS | 1 | |
| 9M7609 | 28 SPRING (SHIFT LEVER) | 1 | |
| 4M1828 | 29 RETAINER-SPRING | 1 | |
| 4M1827 | 30 RETAINER-SPRING | 1 | |
| 4M1831 | 31 PLUG-LEVER HOUSING | 1 | |
| 3E7775 | 32 HOUSING AS | 1 | |
| 7T3974 | 33 HOUSING AS-DRIVE | 1 | |
| 7X3373 | 34 BOLT (5/16-18X0.88-IN) | 6 | |
| 6N3826 | 35 DRIVE AS-MOTOR | 1 | |
| 8T9885 | KIT-BRUSH (STARTING MOTOR) | 1 | |
| 7T3267 | KIT-BUSHING (STARTING MOTOR) | 1 | |
| 7T3268 | KIT-LEVER (STARTING MOTOR) | 1 | |
| 8T9884 | KIT-INSULATOR (STARTING MOTOR) | 1 |
