System And Components

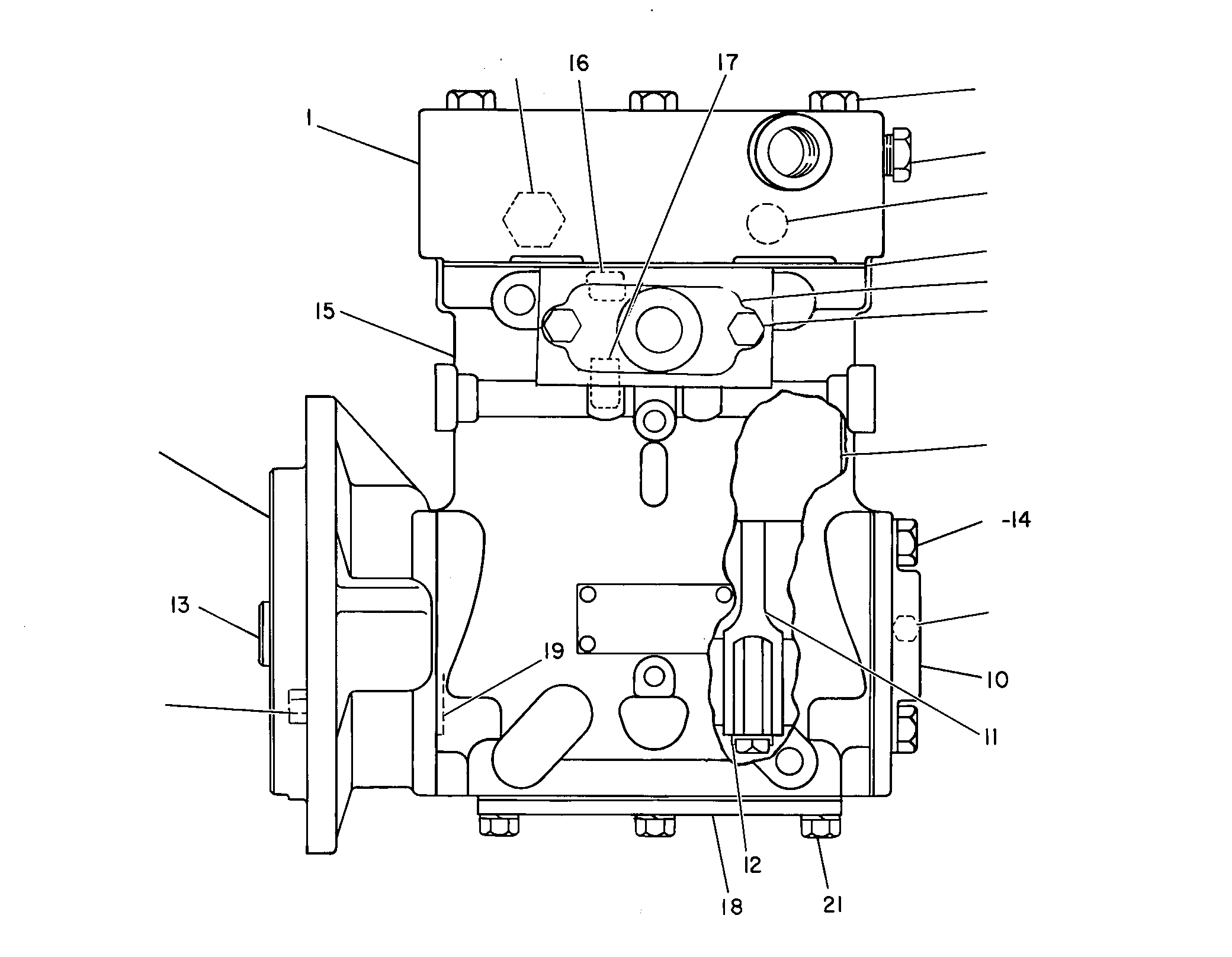

1W-7145 AIR COMPRESSOR GPS/N 9TL1-3029
Group No: 1W-7145
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N2097 | 1 HEAD AS-COMPRESSOR | 1 | |
| 3J5389 | 2 PLUG (EXTERNAL) | 2 | |
| 6N2098 | 3 GASKET-CYLINDER HEAD | 1 | |
| 9M0397 | 4 ADAPTER | 1 | |
| 8M7065 | GASKET (AIR INLET) | 1 | |
| 2B2695 | 5 BOLT (5/16-18X0.875-IN) | 2 | |
| 3B4505 | LOCKWASHER | 2 | |
| 2B0858 | 6 PLUG-PIPE | 1 | |
| 7N4837 | 7 PISTON AS-COMPRESSOR | 2 | |
| 1W2803 | PLUG | 2 | |
| 5P0060 | 8 BOLT (7/16-14X0.75-IN) | 4 | |
| 5M6214 | 9 PLUG (1/8-27 PTF) | 1 | |
| 6N2100 | 10 COVER AS-REAR | 1 | |
| 6N2106 | 11 ROD AS-CONNECTING | 2 | |
| 7N0243 | 12 LOCK-ROD BOLT | 2 | |
| 6N7564 | 13 CRANKSHAFT-AIR COMPRESSOR | 1 | |
| 3B4507 | 14 LOCKWASHER | 4 | |
| 8N7653 | 15 CRANKCASE GP-AIR COMPRESSOR | 1 | |
| 9M0381 | 16 INSERT-INLET VALVE | 2 | |
| 7N6172 | 17 BUSHING-COMPRESSOR | 2 | |
| 6N6949 | 18 COVER-CRANKCASE | 1 | |
| 6N0634 | GASKET-COVER | 1 | |
| 5M6509 | 19 SEAL-O-RING | 2 | |
| 0S1619 | 20 BOLT (3/8-16X3-IN) | 6 | |
| 0T0102 | 21 BOLT (3/8-16X0.625-IN) | 6 | |
| 3B4506 | LOCKWASHER | 6 | |
| 1W7119 | 22 ADAPTER AS | 1 | |
| 0T0768 | 23 BOLT (7/16-14X1.75-IN) | 4 | |
| 8N3666 | KIT-AIR COMPRESSOR | 1 | |
| 6N2109 | KIT-PISTON RING (AIR COMPRESSOR) | 1 | |
| 8N3665 | KIT-SEAL (AIR COMPRESSOR) | 4 | |
| 6I1220 | KIT-UNLOADER (AIR COMPRESSOR) | 1 |
