System And Components

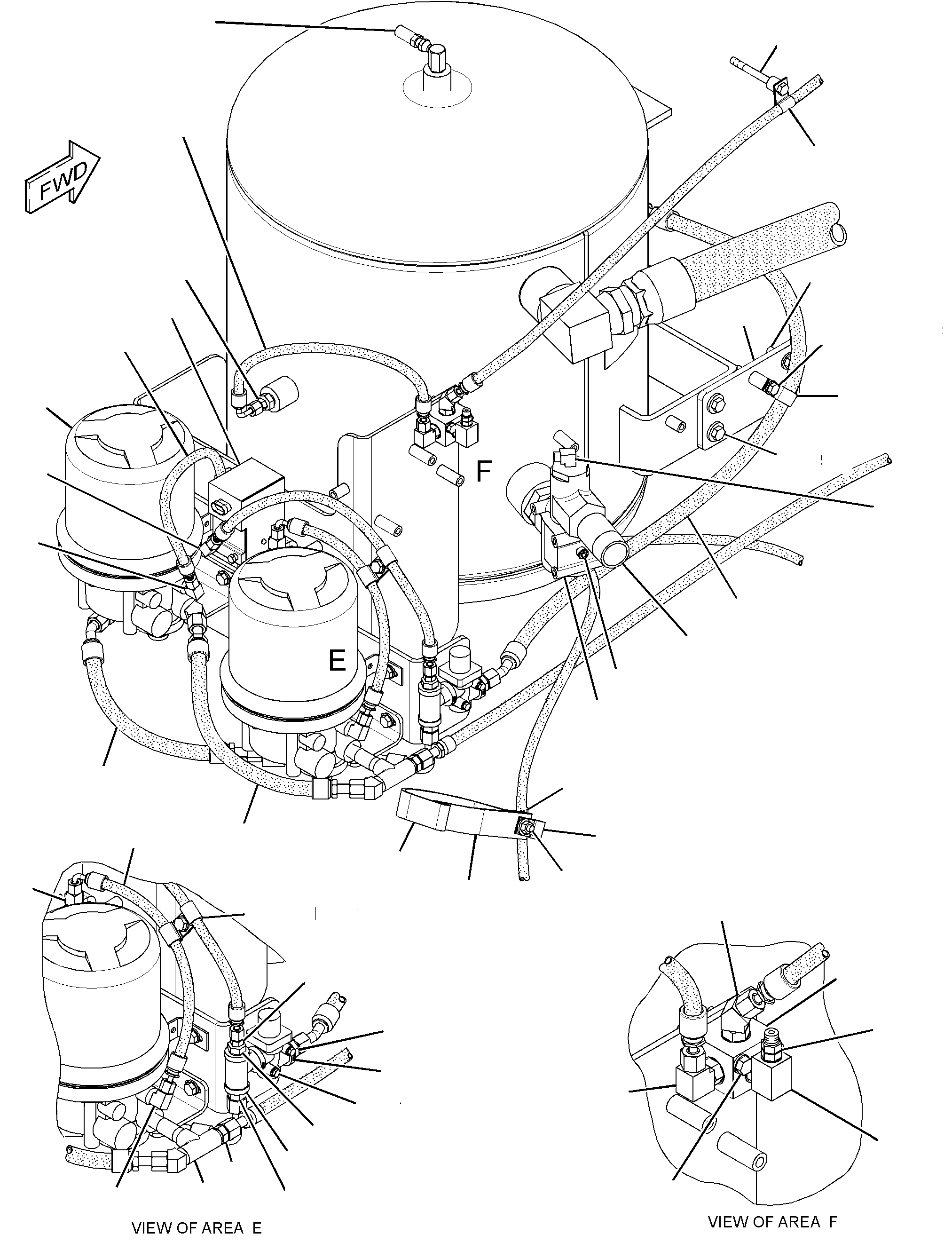

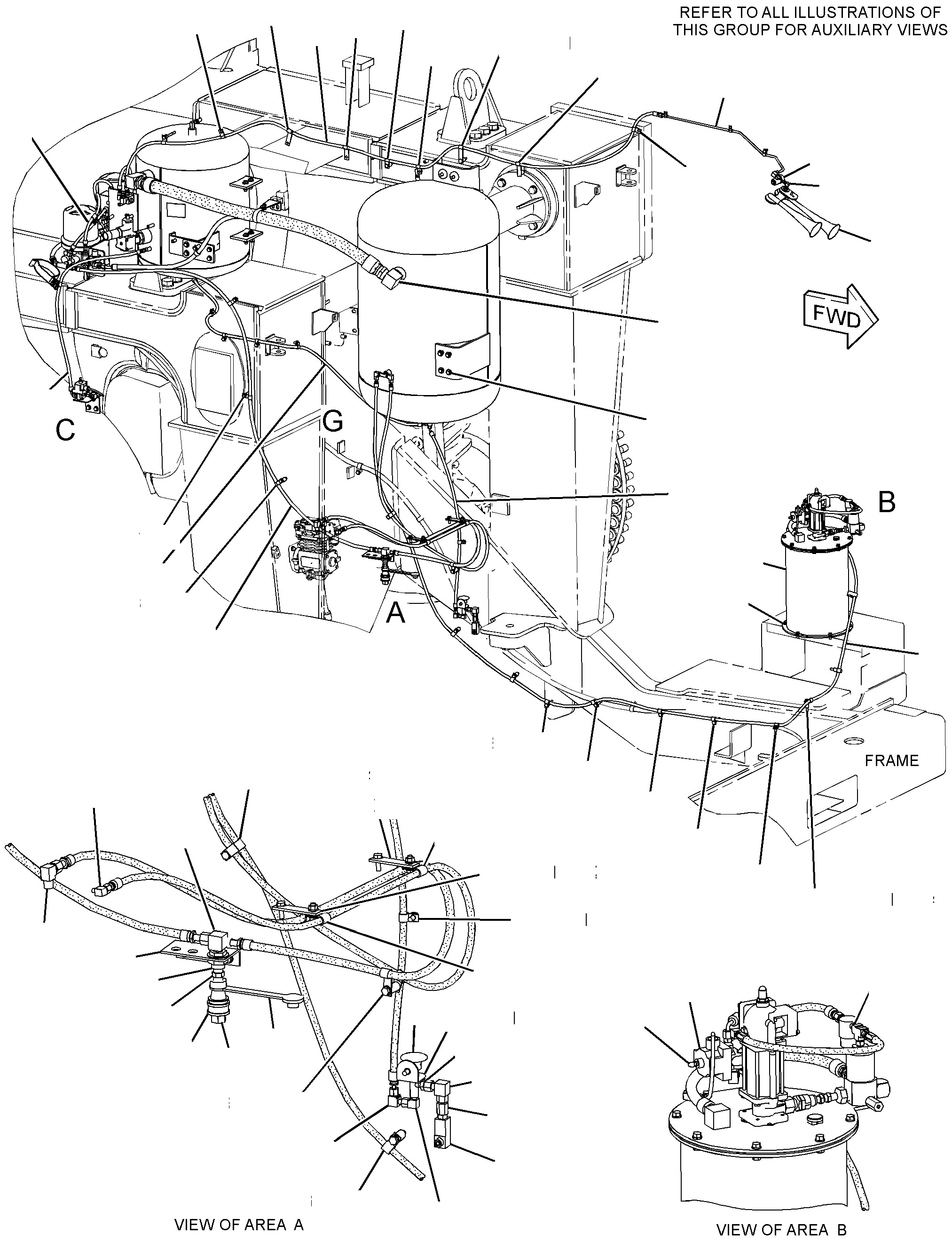

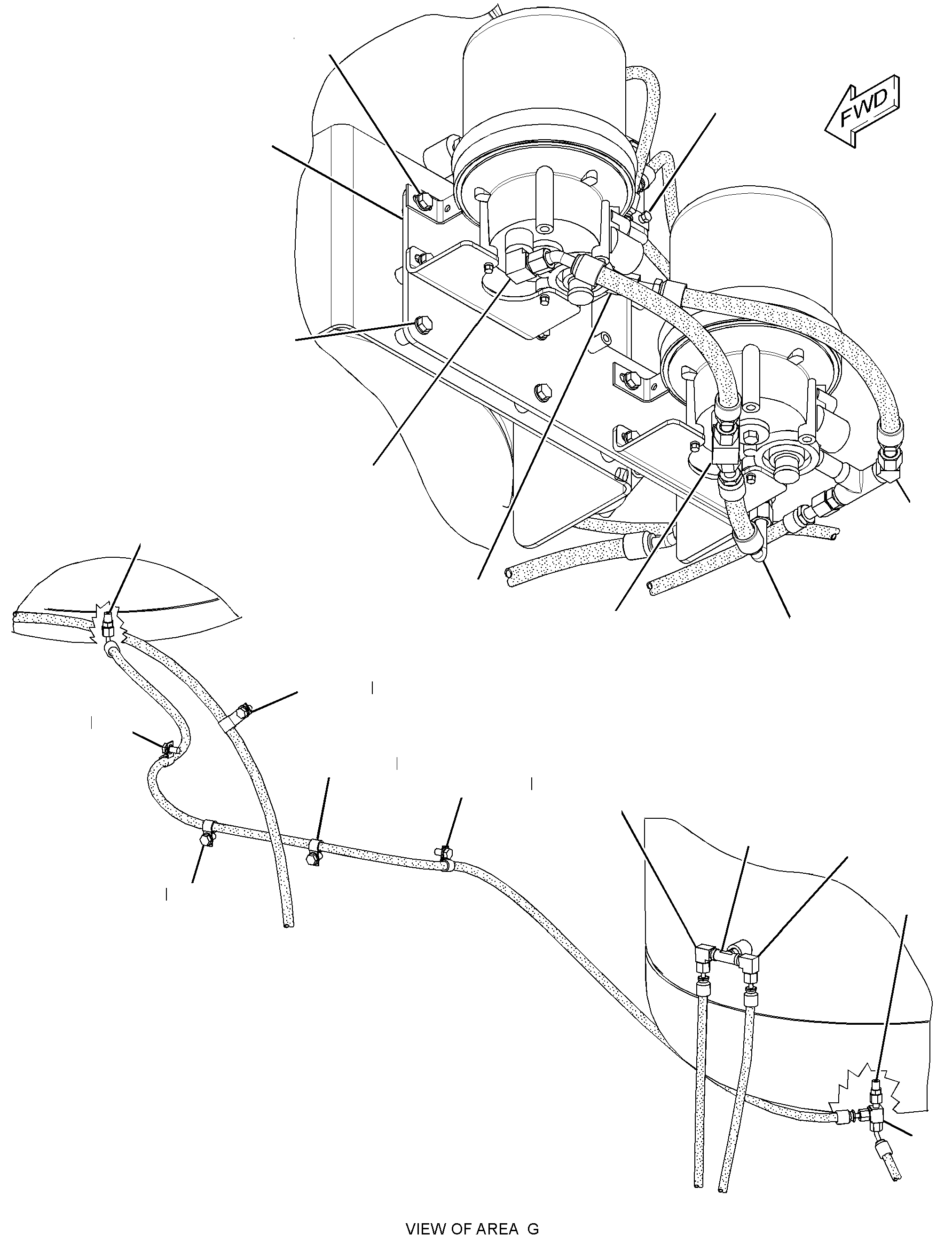

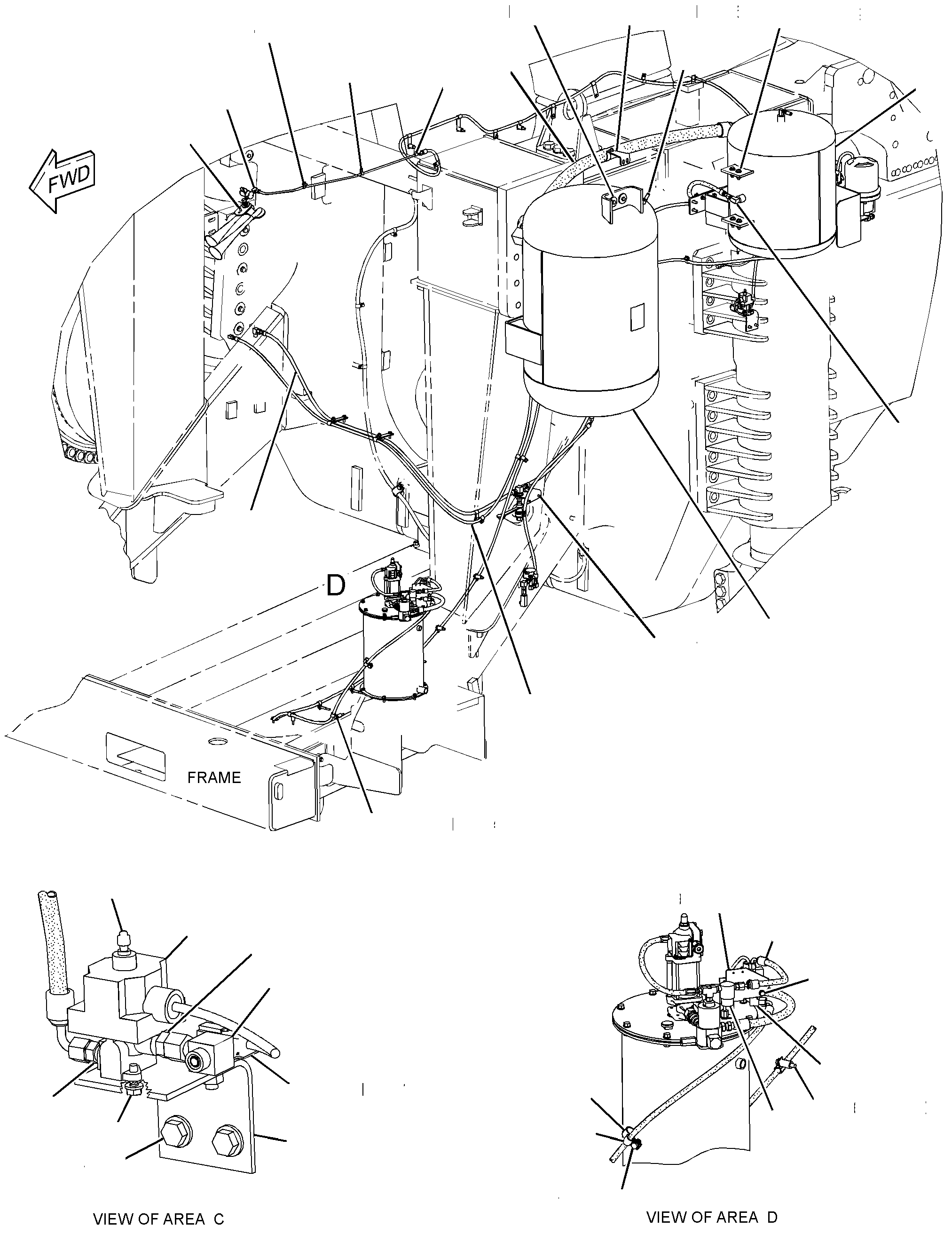

288-2628 LINES GP-AIR STARTINGS/N LAJ1-168
Group No: 288-2628
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1Y0413 | 1 TEE | 1 | |
| 3B8822 | 2 ELBOW | 1 | |
| 3D6370 | 3 ELBOW | 1 | |
| 3E2343 | 4 TEE | 2 | |
| 3R4825 | 5 VALVE GP-AIR CONTROL (AIR TANK DRAIN) | 1 | |
| 5C9762 | 6 MANIFOLD | 1 | |
| 5F5434 | 7 VALVE AS-VENT (AIR START) | 1 | |
| 5F5434 | 7A VALVE AS-VENT (AUTOLUBE) | 1 | |
| 7D5206 | 8 CAP-DUST | 1 | |
| 7D5208 | 9 FITTING (QUICK DISCONNECT, FEMALE) | 1 | |
| 8D4765 | 10 REGULATOR | 1 | |
| 8D9423 | 11 COUPLING | 1 | |
| 9C5344 | 12 SPACER (10.5X20X18-MM THK) | 1 | |
| 9D4049 | 13 HORN GP-AIR | 1 | |
| 9G7101 | 14 SPACER (11X20X30-MM THK) | 2 | |
| 0025299 | 15 TEE-PIPE | 1 | |
| 0332177 | 16 TEE-PIPE | 1 | |
| 0910081 | 17 SPACER (10.5X20X10-MM THK) | 1 | |
| 1159190 | 18 VALVE GP-RELAY (AIR STARTING MOTOR) | 1 | |
| 1322453 | 19 UNION | 1 | |
| 1488337 | 20 CONNECTOR AS | 8 | |
| 8C6866 | CONNECTOR | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1645597 | 21 CONNECTOR AS | 1 | |
| 8C6868 | CONNECTOR | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1837258 | 22 ELBOW AS | 3 | |
| 7X5331 | ELBOW | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1850008 | 23 VALVE GP-SOLENOID (24-VOLT)(AIR HORN) | 1 | |
| 1941986 | 24 AIR DRYER GP | 2 | |
| 1976355 | 25 ELBOW AS | 2 | |
| 3E7449 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1996290 | 26 ELBOW AS | 2 | |
| 2T2305 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2081628 | 27 ELBOW AS | 2 | |
| 2T1922 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2174184 | 28 VALVE AS-CONTROL (AIR DRYER) | 1 | |
| 2219576 | 29 VALVE GP-SOLENOID (24-VOLT)(LUBE) | 1 | |
| 2219576 | 29A VALVE GP-SOLENOID (24-VOLT)(AIR STARTING) | 1 | |
| 2219578 | KIT-VALVE | 1 | |
| 2343545 | 30 PLATE | 2 | |
| 2603192 | 31 HOSE AS | 1 | |
| 2681603 | 32 UNION AS | 1 | |
| 1085678 | UNION | 1 | |
| 3J7354 | SEAL-O-RING | 2 | |
| 2909541 | 33 RESERVOIR | 1 | |
| 4224506 | 34 RESERVOIR | 1 | |
| 2928224 | 35 BRACKET | 1 | |
| 2929086 | 36 PLATE | 1 | |
| 2935846 | 37 BRACKET | 1 | |
| 4763355 | 38 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2968658 | 39 HOSE AS | 1 | |
| 2972597 | 40 HOSE AS | 1 | |
| 2972872 | 41 HOSE AS | 1 | |
| 2972875 | 42 HOSE AS | 1 | |
| 3079418 | 43 HOSE AS | 1 | |
| 3080161 | 44 PUMP GP-LUBRICATION | 1 | |
| 3081394 | 45 HOSE AS | 1 | |
| 3228427 | 46 HOSE AS | 1 | |
| 3228428 | 47 HOSE AS | 1 | |
| 3229253 | 48 HOSE AS | 1 | |
| 3284568 | 49 PLATE AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 8T3851 | BOSS-WELD (M10X1.5X17.5-MM) | 1 | |
| 9B0523 | SPACER (0.53X0.75X1-IN THK) | 6 | |
| 3319716 | 50 HOSE AS | 1 | |
| 3319717 | 51 HOSE AS | 1 | |
| 3319718 | 52 HOSE AS | 1 | |
| 3319719 | 53 HOSE AS | 1 | |
| 3399752 | 54 PLATE | 1 | |
| 3405192 | 55 HOSE AS | 1 | |
| 3471411 | 56 VALVE-RELIEF | 1 | |
| 3471540 | 57 HOSE AS | 1 | |
| 3476643 | 58 TUBE AS | 1 | |
| 3480218 | 59 HOSE AS | 1 | |
| 3480835 | 60 HOSE AS | 1 | |
| 0026454 | 61 CONNECTOR | 1 | |
| 3B7738 | 62 FITTING | 1 | |
| 0308370 | 63 ADAPTER-PIPE | 1 | |
| 0908747 | 64 SPACER (11X19X32-MM THK) | 10 | |
| 1240174 | 65 CLIP (LOOP) | 7 | |
| 1305300 | 66 CLIP | 1 | |
| 1488351 | 67 ELBOW AS | 1 | |
| 6V9849 | ELBOW | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1488367 | 68 ELBOW AS | 2 | |
| 6V9850 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488368 | 69 ELBOW AS | 1 | |
| 6V8627 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1488389 | 70 ELBOW AS | 5 | |
| 7X0492 | ELBOW | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1488407 | 71 PLUG AS | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1503033 | 72 ELBOW AS | 1 | |
| 8T0164 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1505968 | 73 TEE AS | 1 | |
| 6V9835 | TEE | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 1591010 | 74 BRACKET | 1 | |
| 1694279 | 75 CONNECTOR AS | 3 | |
| 8C6872 | CONNECTOR | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1695862 | 76 ELBOW AS | 1 | |
| 8C6712 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1697386 | 77 CONNECTOR AS | 1 | |
| 1010387 | CONNECTOR | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1716731 | 78 CONNECTOR AS | 1 | |
| 8C6871 | CONNECTOR | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1732087 | 79 SPACER (11X20X28-MM THK) | 1 | |
| 2057299 | 80 CLIP (LOOP) | 2 | |
| 2681543 | 81 ELBOW AS | 2 | |
| 2T1925 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1L8432 | 82 FITTING | 1 | |
| 3E2315 | 83 ADAPTER-PIPE | 1 | |
| 3J1907 | 84 SEAL-O-RING | 1 | |
| 3L1258 | 85 NIPPLE-PIPE | 1 | |
| 3P9847 | 86 CLIP | 1 | |
| 4D7794 | 87 CLIP | 3 | |
| 4K8864 | 88 CLIP (LOOP) | 5 | |
| 4M5281 | 89 BOLT (1/4-20X0.75-IN) | 4 | |
| 5C2890 | 90 NUT (M6X1-THD) | 2 | |
| 5K4778 | 91 CLIP | 2 | |
| 5P1076 | 92 WASHER-HARD (13.5X30X4-MM THK) | 14 | |
| 5S7379 | 93 BOLT (3/8-16X0.875-IN) | 2 | |
| 6B5072 | 94 ADAPTER | 2 | |
| 6B9664 | 95 VALVE-AIR RELIEF | 2 | |
| 5240073 | VALVE-AIR RELIEF | 1 | |
| 6D3479 | 96 CLIP (LOOP) | 4 | |
| 6D4244 | 97 CLIP (LOOP) | 1 | |
| 6K1019 | 98 NIPPLE-PIPE | 1 | |
| 6K8178 | 99 CLIP (LOOP) | 4 | |
| 6V7349 | 100 ELBOW | 2 | |
| 6V7383 | 101 CLIP | 2 | |
| 6V8397 | 102 SEAL-O-RING | 1 | |
| 6V8398 | 103 SEAL-O-RING | 4 | |
| 7D5207 | 104 PLUG | 1 | |
| 7G8839 | 105 SPACER (13.5X57X6-MM THK) | 2 | |
| 7T8331 | 106 MOUNT AS | 2 | |
| 7W2033 | 107 CLIP (TAB) | 1 | |
| 7W2034 | 108 CLIP (SLOT) | 1 | |
| 7X7729 | 109 WASHER (11X25X3-MM THK) | 2 | |
| 8T1905 | 110 ELBOW | 1 | |
| 8T3844 | 111 BOLT (M6X1X70-MM) | 2 | |
| 8T4121 | 112 WASHER-HARD (11X21X2.5-MM THK) | 51 | |
| 8T4133 | 113 NUT (M10X1.5-THD) | 7 | |
| 8T4136 | 114 BOLT (M10X1.5X25-MM) | 11 | |
| 8T4137 | 115 BOLT (M10X1.5X20-MM) | 10 | |
| 8T4138 | 116 BOLT (M6X1X20-MM) | 2 | |
| 8T4183 | 117 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4184 | 118 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4185 | 119 BOLT (M10X1.5X50-MM) | 9 | |
| 8T4186 | 120 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4192 | 121 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4194 | 122 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4195 | 123 BOLT (M10X1.5X30-MM) | 9 | |
| 8T4198 | 124 BOLT (M10X1.5X100-MM) | 1 | |
| 8T4205 | 125 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 8T4223 | 126 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4224 | 127 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4244 | 128 NUT (M12X1.75-THD) | 4 | |
| 8T4896 | 129 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 8T4910 | 130 BOLT (M12X1.75X60-MM) | 2 | |
| 8T5005 | 131 BOLT (M10X1.5X70-MM) | 5 | |
| 8T6466 | 132 BOLT (M10X1.5X60-MM) | 8 | |
| 8T6764 | 133 PLUG-PIPE (1/8-27-THD) | 1 | |
| 8T6870 | 134 BOLT (M8X1.25X70-MM) | 2 | |
| 8T7547 | 135 BOLT (M8X1.25X30-MM) | 1 | |
| 9M8406 | 136 CLIP (LOOP) | 13 | |
| 9X8250 | 137 CLIP (LOOP) | 1 | |
| 9X8256 | 138 WASHER (6.6X12X2-MM THK) | 6 | |
| 1778847 | KIT-SEAL (RELAY VALVE) | 1 |
