System And Components

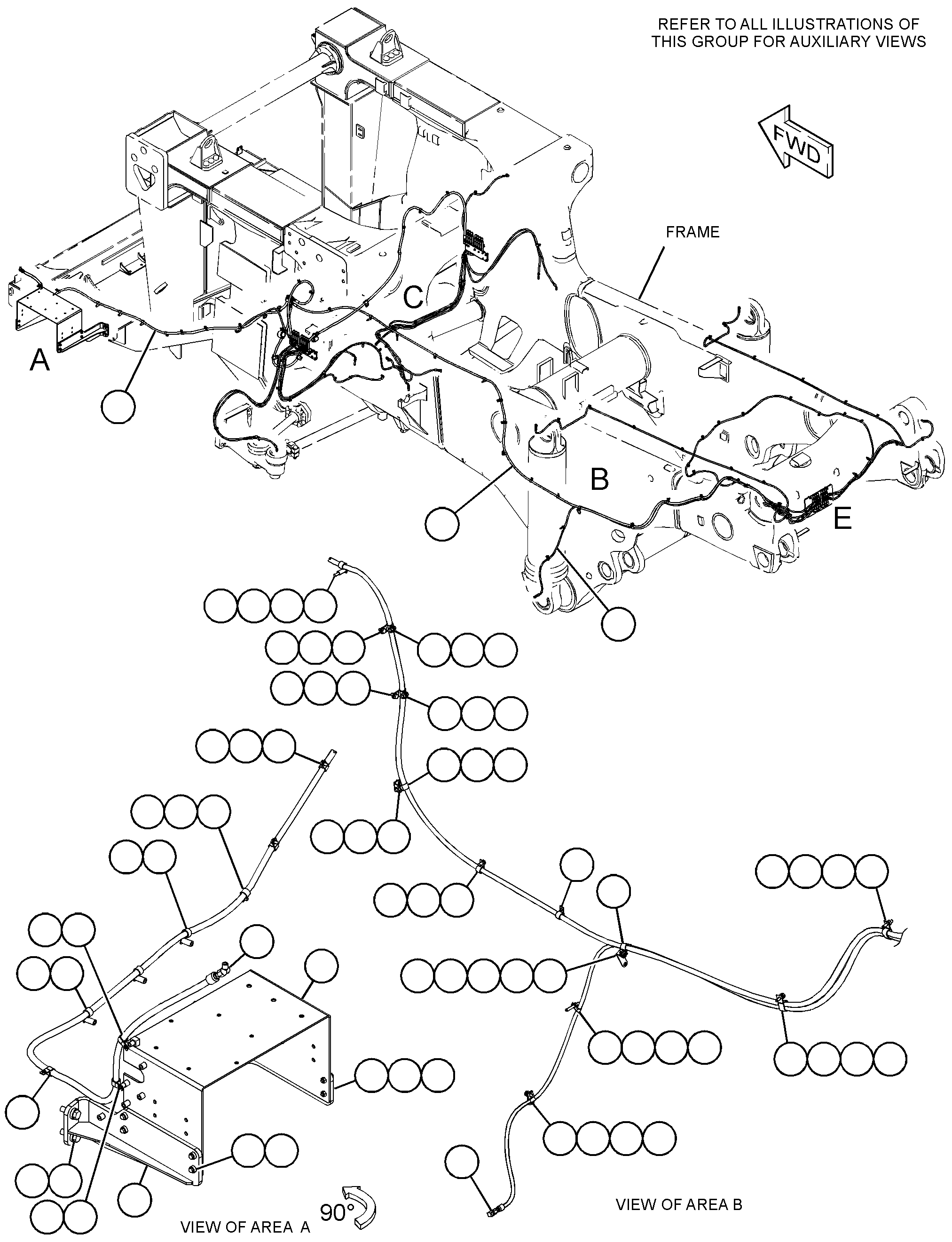

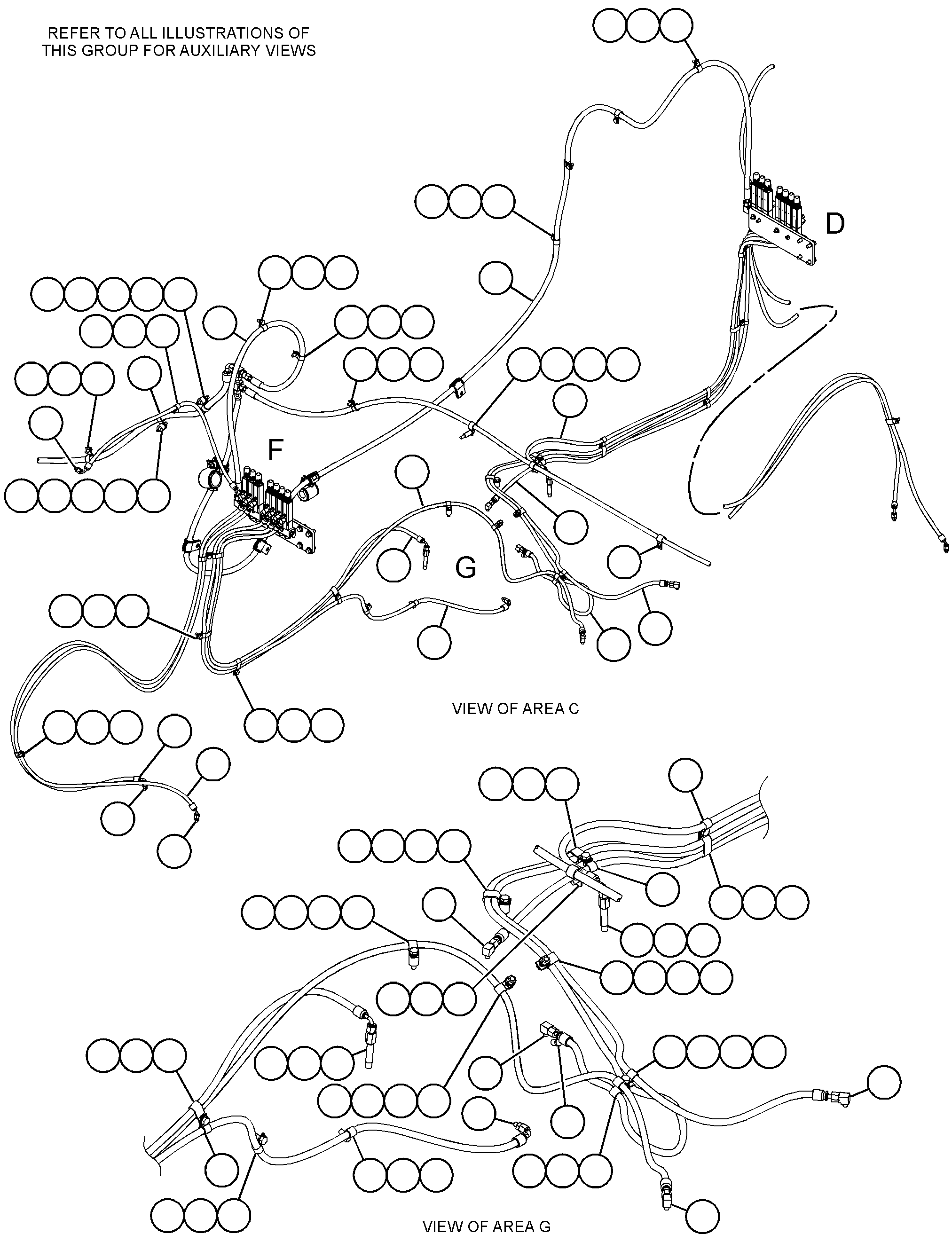

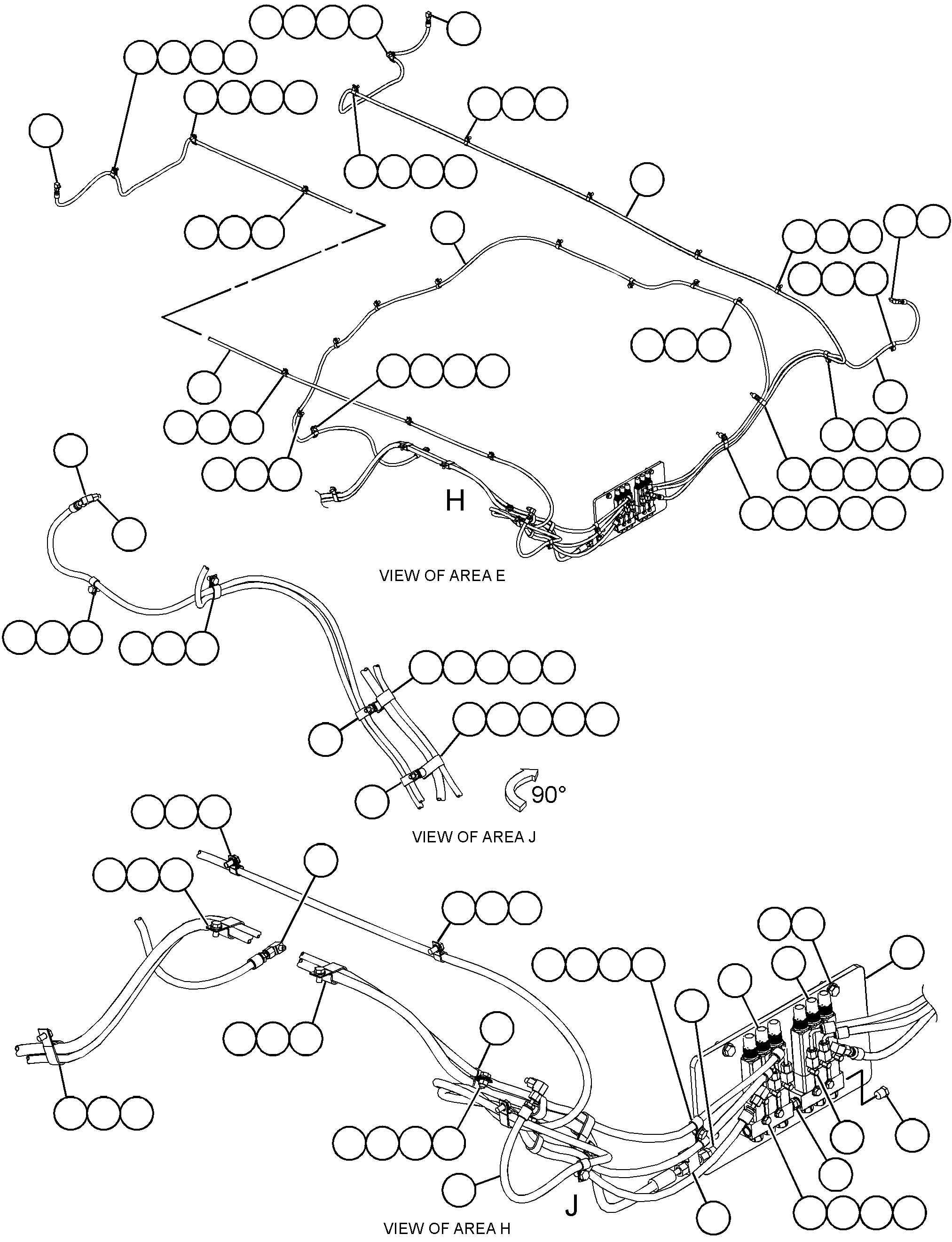

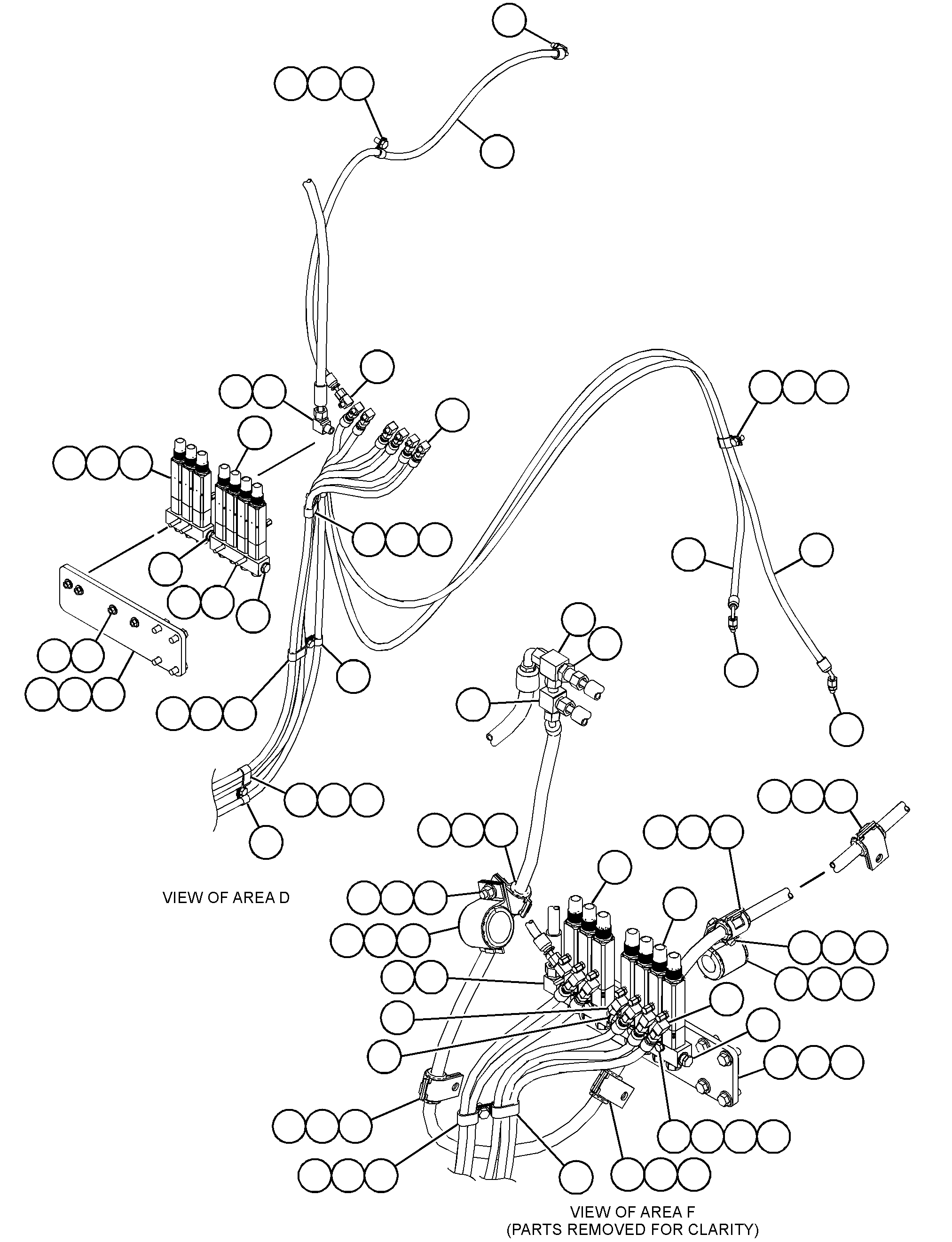

272-3252 LINES GP-CENTRAL LUBRICATIONS/N LAJ622-636
Group No: 272-3252
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8X8474 | 1 HOSE AS | 2 | |
| 1197724 | 2 HOSE AS | 1 | |
| 1243019 | 3 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1447901 | 4 HOSE AS | 1 | |
| 1488424 | 5 TEE AS | 1 | |
| 8T8902 | ADAPTER-TEE | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1590994 | 6 HOSE AS | 2 | |
| 1950882 | 7 BRACKET AS | 1 | |
| 1976453 | 8 BRACKET AS | 1 | |
| 2695348 | 9 VALVE GP-LUBE DISTRIBUTION (3-INJECTOR)(RH) | 4 | |
| 2695352 | 10 VALVE GP-LUBE DISTRIBUTION (4-INJECTOR)(LH) | 2 | |
| 2919654 | 11 PLATE | 2 | |
| 2932706 | 12 HOSE AS | 1 | |
| 3348714 | 13 HOSE AS | 1 | |
| 3348715 | 14 HOSE AS | 1 | |
| 3356128 | 15 HOSE AS | 1 | |
| 3440997 | 16 HOSE AS | 1 | |
| 3494591 | 17 PLATE | 1 | |
| 3784329 | 18 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 14 | |
| 7T1099 | LINK | 3 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 4 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 1 | |
| 0908247 | BLOCK (M10X1.5-MM) | 1 | |
| 4699239 | 19 HOSE AS | 1 | |
| 4926342 | 20 PLATE AS | 1 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 4926343 | 21 PLATE AS | 1 | |
| 0046683 | 22 FITTING | 3 | |
| 0919035 | 23 SPACER (11X25X20-MM THK) | 2 | |
| 1064175 | 24 BOLT (M20X2.5X60-MM) | 4 | |
| 1093001 | 25 STUD-TAPERLOCK (M10X1.5X65-MM) | 2 | |
| 1488320 | 26 CONNECTOR AS | 7 | |
| 8C6865 | CONNECTOR | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1488389 | 27 ELBOW AS | 30 | |
| 7X0492 | ELBOW | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1488427 | 28 TEE AS | 1 | |
| 8T6895 | TEE-UNION | 1 | |
| 6V8398 | SEAL-O-RING | 3 | |
| 1488444 | 29 TEE AS-SWIVEL | 1 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1976355 | 30 ELBOW AS | 1 | |
| 3E7449 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1984777 | 31 WASHER-HARD (11X25X10-MM THK) | 8 | |
| 1984781 | 32 WASHER-HARD (22X40X10-MM THK) | 4 | |
| 1S0994 | 33 CLIP (LOOP) | 17 | |
| 2032059 | 34 CONNECTOR AS | 1 | |
| 8C6869 | CONNECTOR | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2188326 | 35 HOSE AS | 2 | |
| 2310336 | 36 STUD-TAPERLOCK (M10X1.5X70-MM) | 5 | |
| 2812592 | 37 PIN-TAPERLOCK | 2 | |
| 2932700 | 38 HOSE AS | 1 | |
| 2937514 | 39 HOSE AS | 2 | |
| 2937549 | 40 HOSE AS | 2 | |
| 2A2677 | 41 SPACER (10.7X17.14X19.05-MM THK) | 2 | |
| 2R1939 | 42 CLIP (LOOP) | 10 | |
| 2T2396 | 43 ELBOW | 2 | |
| 3230208 | 44 HOSE AS | 2 | |
| 3293356 | 45 NUT (M12X1.75-THD) | 2 | |
| 3348716 | 46 HOSE AS | 2 | |
| 3445674 | 47 NUT (M8X1.25-THD) | 12 | |
| 3445675 | 48 NUT (M10X1.5-THD) | 16 | |
| 3J5390 | 49 PLUG (3/8-18-THD) | 3 | |
| 3W9670 | 50 BOSS | 4 | |
| 4D6466 | 51 CLIP | 11 | |
| 4J5477 | 52 SEAL-O-RING | 2 | |
| 4K8864 | 53 CLIP (LOOP) | 37 | |
| 4S6668 | 54 CLIP (LOOP) | 7 | |
| 5H7598 | 55 NIPPLE-PIPE | 2 | |
| 5M6213 | 56 PLUG-PIPE (1/4-18-THD) | 1 | |
| 5P4116 | 57 WASHER-HARD (8.8X20.5X2-MM THK) | 12 | |
| 5P4295 | 58 CLIP | 1 | |
| 5P7462 | 59 CLIP (SLOT) | 5 | |
| 5P7463 | 60 CLIP (TAB) | 5 | |
| 5P7468 | 61 CLIP (SLOT) | 1 | |
| 5P7469 | 62 CLIP (TAB) | 1 | |
| 5P7470 | 63 CLIP (SLOT) | 1 | |
| 5P7471 | 64 CLIP (TAB) | 1 | |
| 5P7703 | 65 GROMMET (52-MM ID) | 1 | |
| 5T6374 | 66 SPACER (11X20X40-MM THK) | 3 | |
| 6K6967 | 67 ADAPTER-PIPE | 2 | |
| 6K8178 | 68 CLIP (LOOP) | 1 | |
| 6V0683 | 69 GROMMET | 5 | |
| 6V1874 | 70 GROMMET (31-MM ID) | 1 | |
| 6V8398 | 71 SEAL-O-RING | 2 | |
| 6V9169 | 72 NUT (13/16-16-THD) | 1 | |
| 6V9828 | 73 CAP (ORFS) | 1 | |
| 7C8246 | 74 SPACER (10.5X20X24-MM THK) | 2 | |
| 8R0721 | 75 SPACER (11X16X35-MM THK) | 2 | |
| 8T1885 | 76 CLIP (SLOT) | 6 | |
| 8T1886 | 77 CLIP (TAB) | 6 | |
| 8T4121 | 78 WASHER-HARD (11X21X2.5-MM THK) | 88 | |
| 8T4136 | 79 BOLT (M10X1.5X25-MM) | 10 | |
| 8T4137 | 80 BOLT (M10X1.5X20-MM) | 56 | |
| 8T4139 | 81 BOLT (M12X1.75X30-MM) | 10 | |
| 8T4182 | 82 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4184 | 83 BOLT (M12X1.75X45-MM) | 2 | |
| 8T4186 | 84 BOLT (M10X1.5X40-MM) | 3 | |
| 8T4195 | 85 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4223 | 86 WASHER-HARD (13.5X25.5X3-MM THK) | 14 | |
| 8T4224 | 87 WASHER-HARD (8.8X16X2-MM THK) | 12 | |
| 8T6466 | 88 BOLT (M10X1.5X60-MM) | 2 | |
| 8T6776 | 89 ADAPTER | 2 | |
| 8T6869 | 90 BOLT (M8X1.25X60-MM) | 12 | |
| 9X8250 | 91 CLIP (LOOP) | 12 |
