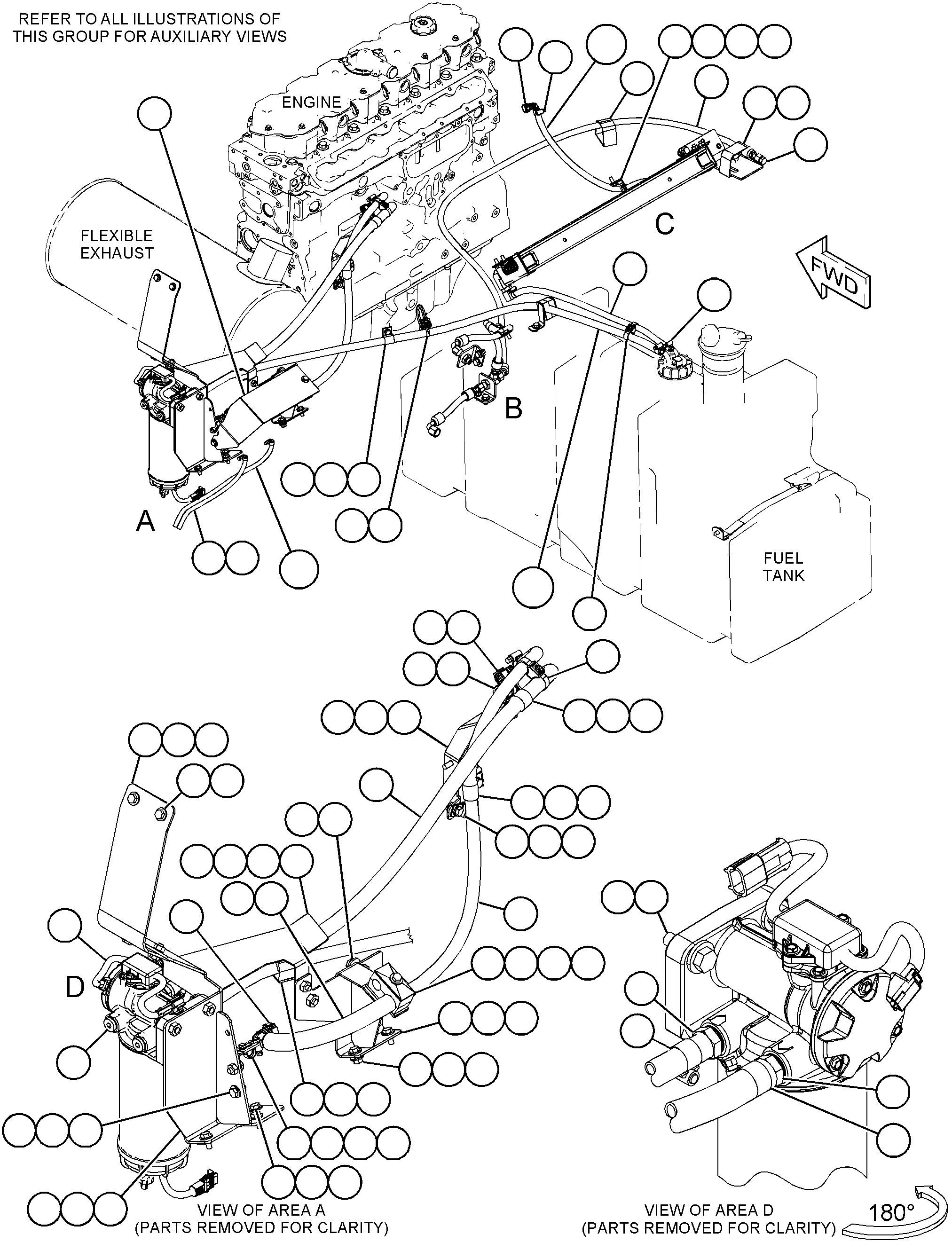

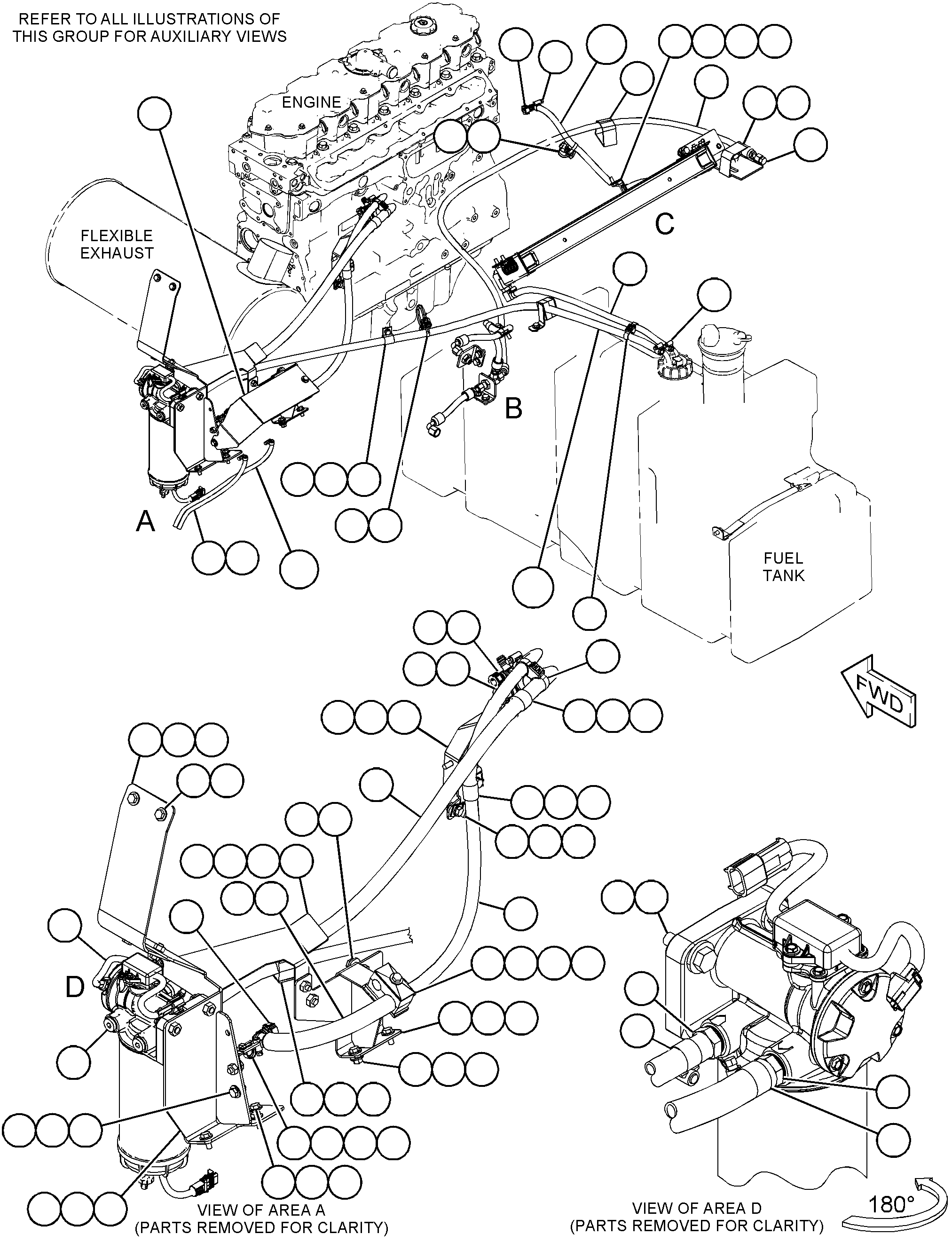

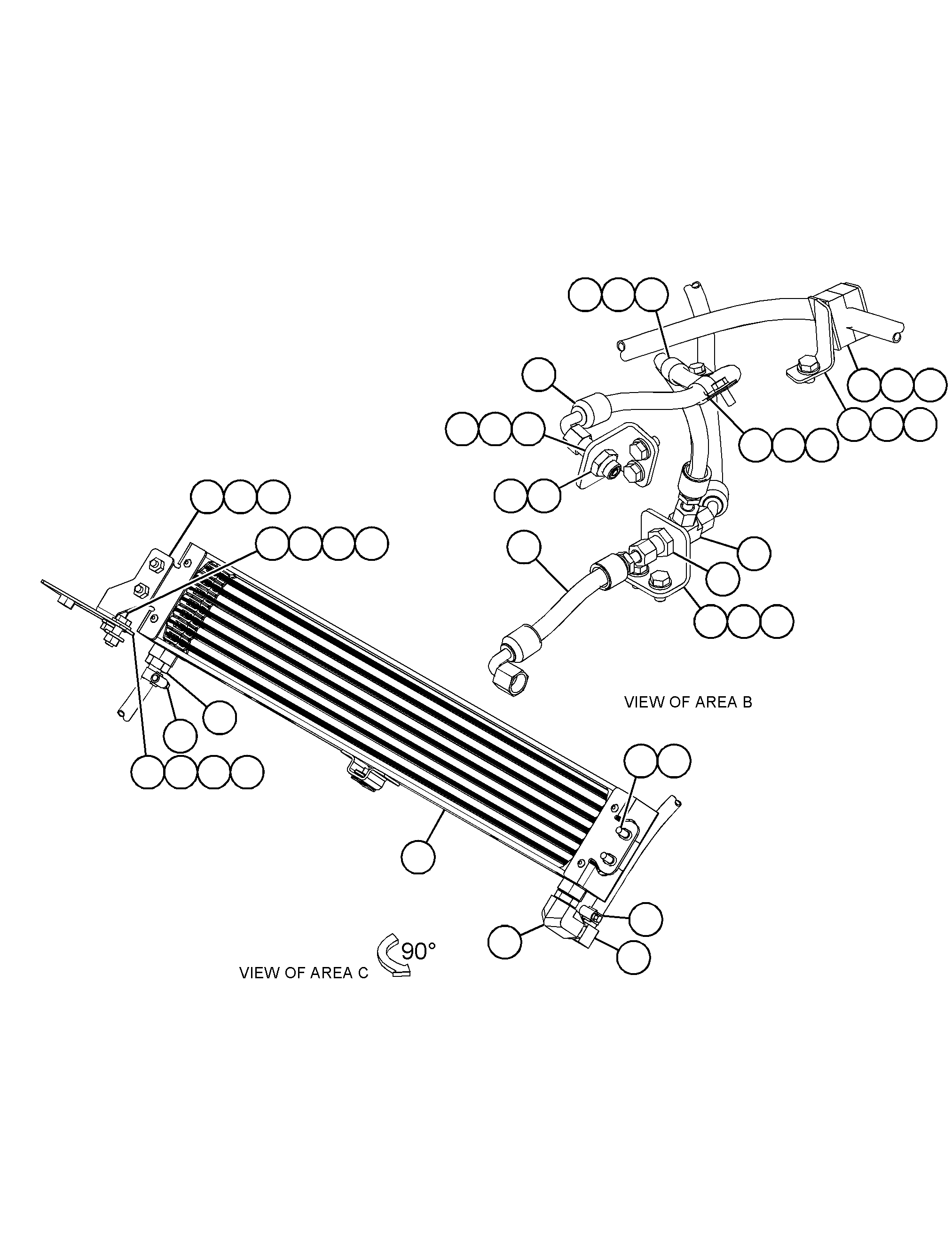

System And Components
424-9210 LINES GP-FUELS/N AC61-UP
Group No: 424-9210
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 6 | |
| 7V5628 | 2 PLATE (TOP) | 1 | |
| 1028705 | 3 PLATE (TOP) | 2 | |
| 2643518 | 4 CONNECTOR-RECEPTACLE | 1 | |
| 3343325 | 5 CORE AS-FUEL COOLER (FUEL TANK) | 1 | |
| 3540817 | 6 CONNECTOR-HOSE | 2 | |
| 3550632 | 7 CONNECTOR-SPECIAL | 1 | |
| 3644568 | 8 STRAP | 1 | |
| 3644569 | 9 STRAP | 1 | |
| 3913762 | 10 FILTER GP-WATER SEP & FUEL | 1 | |
| 3920777 | 11 CONNECTOR AS | 1 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 2287089 | SEAL-O-RING | 2 | |
| 4264125 | 12 ADAPTER AS | 1 | |
| 2287102 | SEAL-O-RING | 1 | |
| 4264124 | ADAPTER | 1 | |
| 4391861 | 13 ADAPTER AS | 1 | |
| 2287102 | SEAL-O-RING | 1 | |
| 4391816 | ADAPTER | 1 | |
| 4391871 | 14 ADAPTER AS | 1 | |
| 1424881 | CONNECTOR | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 4391887 | 15 ELBOW AS | 1 | |
| 1849114 | ELBOW | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 4391889 | 16 ELBOW AS | 1 | |
| 1292327 | ELBOW | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 4391891 | 17 ADAPTER AS | 1 | |
| 7X0820 | TEE | 1 | |
| 2287089 | SEAL-O-RING | 3 | |
| 4410556 | 18 BRACKET AS | 1 | |
| 4410557 | 19 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 4410558 | 20 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 1028706 | PLATE AS | 1 | |
| 4410559 | 21 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 4410560 | 22 SHIELD AS | 1 | |
| 1028706 | PLATE AS | 1 | |
| 4420622 | 23 BRACKET | 2 | |
| 4420623 | 24 HOSE AS | 1 | |
| 4420625 | 25 HOSE AS | 1 | |
| 4444945 | 26 HOSE AS | 1 | |
| 4452694 | 27 MAT-RUBBER | 1 | |
| 4540117 | 28 BRACKET | 1 | |
| 4663301 | 29 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4663302 | 30 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 4761972 | 31 PLATE | 1 | |
| 0672551 | 32 CLIP | 1 | |
| 1246257 | 33 CLAMP-HOSE | 2 | |
| 1325789 | 34 CLIP (LADDER) | 2 | |
| 1439157 | 35 CLAMP-DOUBLE | 2 | |
| 4V0611 | 36 CLAMP | 2 | |
| 1772215 | 37 STRAP-DUAL CLAMP | 2 | |
| 1P4278 | 38 CLAMP-HOSE | 2 | |
| 2006345 | 39 SADDLE-MOUNTING (DUAL SWIVEL) | 2 | |
| 3218612 | 40 PLUG AS | 1 | |
| 6V9508 | PLUG (11/16-16-THD) | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3293356 | 41 NUT (M12X1.75-THD) | 1 | |
| 3309724 | 42 PLUG AS-CONNECTOR | 2 | |
| 2287102 | SEAL-O-RING | 1 | |
| 2416158 | PLUG | 1 | |
| 3445674 | 43 NUT (M8X1.25-THD) | 4 | |
| 3445675 | 44 NUT (M10X1.5-THD) | 1 | |
| 3727169 | 45 SPACER (13X16.5X7-MM THK) | 1 | |
| 3S8664 | 46 CLIP | 2 | |
| 5P4116 | 47 WASHER-HARD (8.8X20.5X2-MM THK) | 22 | |
| 5P4961 | 48 CLAMP-HOSE | 8 | |
| 6D4244 | 49 CLIP (LOOP) | 1 | |
| 6V9168 | 50 NUT (11/16-16-THD) | 2 | |
| 7V5626 | 51 CLAMP | 2 | |
| 7X0818 | 52 BOLT (M8X1.25X45-MM) | 1 | |
| 7X7729 | 53 WASHER (11X25X3-MM THK) | 6 | |
| 8C8451 | 54 BOLT (M6X1X40-MM) | 2 | |
| 8T4121 | 55 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4137 | 56 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4139 | 57 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4189 | 58 BOLT (M8X1.25X20-MM) | 21 | |
| 8T4195 | 59 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4196 | 60 BOLT (M10X1.5X35-MM) | 2 | |
| 8T4200 | 61 BOLT (M8X1.25X16-MM) | 6 | |
| 8T4223 | 62 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 63 WASHER-HARD (8.8X16X2-MM THK) | 10 | |
| 8T6912 | 64 BOLT (M8X1.25X50-MM) | 1 | |
| 9M8406 | 65 CLIP (LOOP) | 2 | |
| 3478647 | 66 HOSE (106-CM) | ||
| 3478645 | 67 HOSE (54-CM) | ||
| 3478645 | 67A HOSE (79.5-CM) | ||
| 3478646 | 68 HOSE (109-5-CM) | ||
| 3478646 | 68A HOSE (166-CM) | ||
| 1602243 | 69 SLEEVE-ABRASION (8.7-IN) | ||
| 8C3681 | 70 HOSE-DRAIN (32.5-CM) | ||
| 8C3681 | 70A HOSE-DRAIN (43-CM) |
