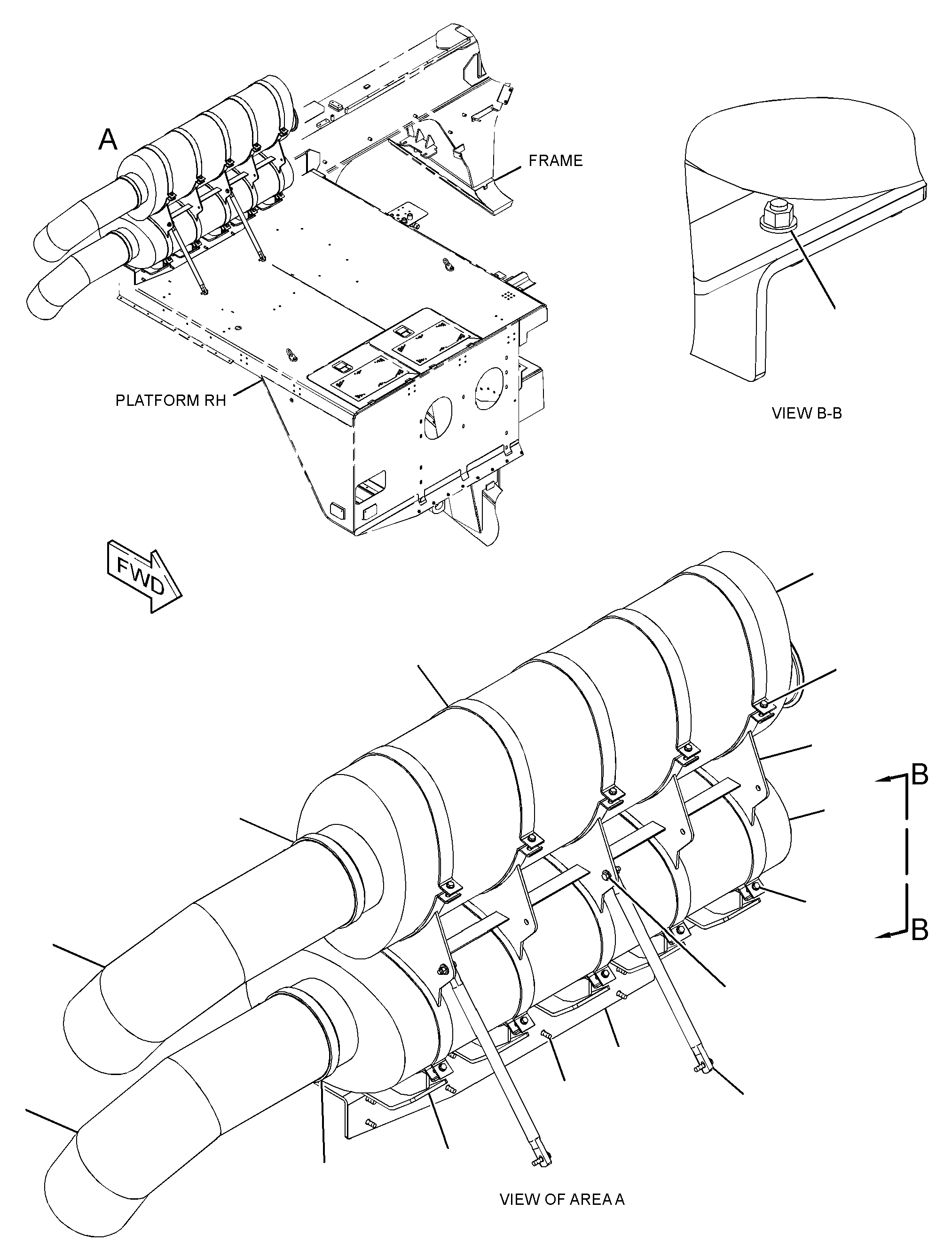

Assembly
100%

294-0849 MUFFLER GP -EXTRA QUIETS/N FDB1-583

Group No: 294-0849
Part NumberPart NameQty
26858121 BRACE2
28382562 MUFFLER AS2
29085763 PIPE-EXHAUST2
29376164 STRAP5
29376175 BRACKET AS5
8X3130STRAP1
2940850PLATE1
2940974PLATE1
29422316 BRACKET AS1
8X3130STRAP5
2937616STRAP5
2942406PLATE4
2942407PLATE4
2942896PLATE5
29428927 BRACKET AS1
2908575PLATE4
2942895PLATE1
5P10768 WASHER-HARD (13.5X30X4-MM THK)6
6N92989 CLAMP2
6V382310 BOLT (M12X1.75X60-MM)2
6V583911 WASHER (11X21X2.5-MM THK)40
6V584312 BOLT (M10X1.5X45-MM)20
6V768713 LOCKNUT (M12X1.75-THD)2
6V774414 LOCKNUT (M10X1.5-THD)20
8T418315 BOLT (M12X1.75X40-MM)28
8T419416 BOLT (M12X1.75X50-MM)4
8T422317 WASHER-HARD (13.5X25.5X3-MM THK)48
8T424418 NUT (M12X1.75-THD)22
