System And Components

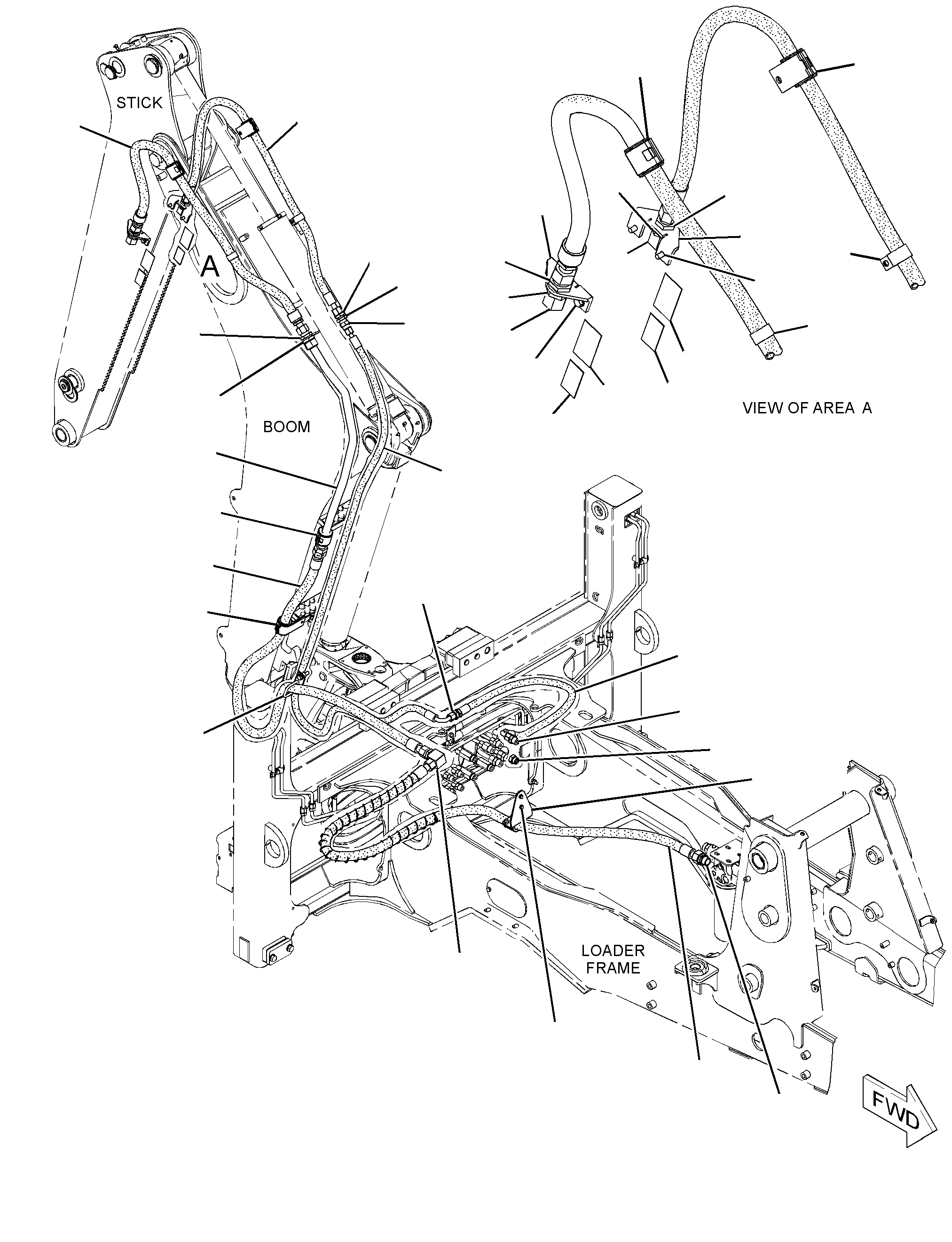

249-7921 LINES GP-BACKHOE AUXILIARYS/N SNL1-UP
Group No: 249-7921
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1076708 | 1 BRACKET (LH) | 1 | |
| 1091260 | 2 BRACKET (RH) | 1 | |
| 1237637 | 3 CAP | 2 | |
| 2259199 | 4 SPACER (13.5X22X14-MM THK) | 1 | |
| 2362972 | 5 HOSE AS | 1 | |
| 2418450 | 6 FILM-WARNING (HYD PRESS, READ OMM, INTL) | 2 | |
| 2520107 | 7 HOSE AS | 1 | |
| 2698249 | 8 CLIP (SLOT) | 1 | |
| 2698251 | 9 CLIP (TAB) | 1 | |
| 2760171 | 10 TUBE AS | 1 | |
| 2760172 | 11 HOSE AS | 1 | |
| 2814726 | 12 FILM-INSTRUCTION (OIL FLOW DIRECTION) | 2 | |
| 3031542 | 13 HOSE AS | 1 | |
| 2873933 | 14 HOSE AS | 1 | |
| 2873934 | 15 HOSE AS | 1 | |
| 2873936 | 16 BRACKET AS | 1 | |
| 2902431 | 17 BRACKET AS | 1 | |
| 1488333 | 18 CONNECTOR AS | 1 | |
| 8T7927 | CONNECTOR | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488341 | 19 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488408 | 20 PLUG AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 9S4183 | PLUG (1-1/16-12-THD) | 1 | |
| 1488414 | 21 REDUCER AS | 1 | |
| 6V8943 | REDUCER | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488455 | 22 UNION AS | 1 | |
| 6V8997 | UNION | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1503052 | 23 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1076709 | CONNECTOR | 1 | |
| 1503053 | 24 CONNECTOR AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1083872 | CONNECTOR | 1 | |
| 1645577 | 25 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V8984 | ELBOW | 1 | |
| 2169199 | 26 UNION AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 9X2317 | UNION | 1 | |
| 1M1462 | 27 CLIP | 1 | |
| 2P1293 | 28 LOCKNUT (1-3/16-12-THD) | 2 | |
| 5P7466 | 29 CLIP (SLOT) | 1 | |
| 5P7467 | 30 CLIP (TAB) | 1 | |
| 5P7468 | 31 CLIP (SLOT) | 2 | |
| 5P7469 | 32 CLIP (TAB) | 2 | |
| 5P7854 | 33 CLIP (LOOP) | 1 | |
| 5P8112 | 34 GROMMET | 1 | |
| 6V1874 | 35 GROMMET (31-MM ID) | 1 | |
| 6V8400 | 36 SEAL-O-RING | 1 | |
| 6V9170 | 37 NUT-BULKHEAD (1-14-THD) | 1 | |
| 6V9172 | 38 NUT (1-7/16-12-THD) | 3 | |
| 7D7233 | 39 CLIP (LOOP) | 1 | |
| 8T2525 | 40 GROMMET | 2 | |
| 8T4121 | 41 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4136 | 42 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4184 | 43 BOLT (M12X1.75X45-MM) | 1 | |
| 8T4223 | 44 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4224 | 45 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4908 | 46 BOLT (M8X1.25X25-MM) | 2 | |
| 9V5382 | 47 GROMMET | 1 |
