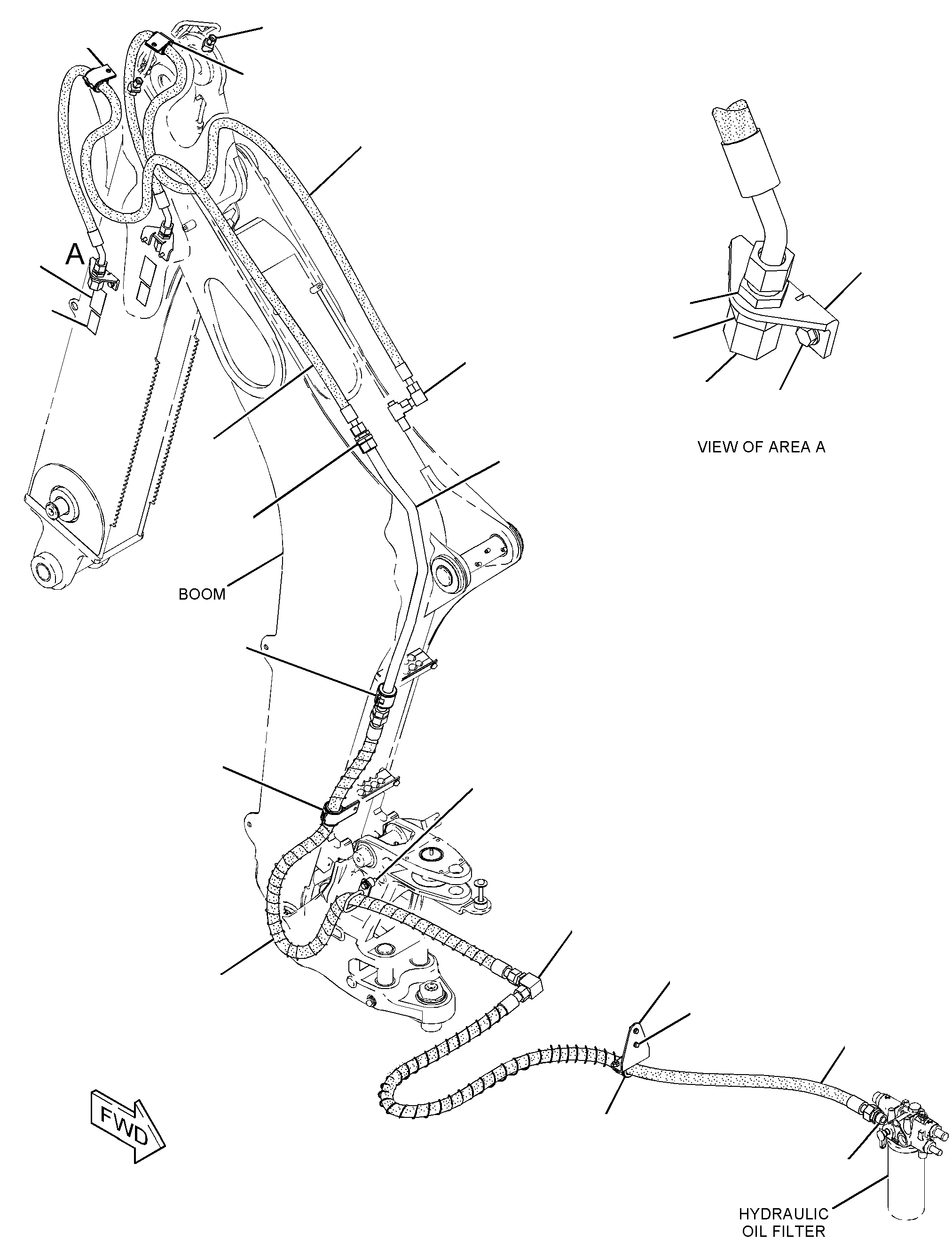

317-0924 LINES GP-BACKHOE AUXILIARY -EXTENDABLE STICKS/N SNL1-UP
Group No: 317-0924
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1091260 | 1 BRACKET | 2 | |
| 2284710 | 2 SPACER (13.8X30X20-MM THK) | 1 | |
| 2416226 | 3 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 2416225 | TEE | 1 | |
| 2418450 | 4 FILM-WARNING (HYD PRESS, READ OMM, INTL) | 2 | |
| 2698249 | 5 CLIP (SLOT) | 1 | |
| 2698251 | 6 CLIP (TAB) | 1 | |
| 2760171 | 7 TUBE AS | 1 | |
| 2814726 | 8 FILM-INSTRUCTION (OIL FLOW DIRECTION) | 2 | |
| 2873933 | 9 HOSE AS | 1 | |
| 2873934 | 10 HOSE AS | 1 | |
| 2873936 | 11 BRACKET AS | 1 | |
| 2902431 | 12 BRACKET AS | 1 | |
| 3122598 | 13 HOSE AS | 1 | |
| 3122599 | 14 HOSE AS | 1 | |
| 1237637 | 15 CAP | 2 | |
| 1488333 | 16 CONNECTOR AS | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T7927 | CONNECTOR | 1 | |
| 1488392 | 17 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 6V9853 | ELBOW | 1 | |
| 1503053 | 18 CONNECTOR AS | 2 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1083872 | CONNECTOR | 1 | |
| 1536241 | 19 ELBOW AS | 2 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8C8989 | ELBOW | 1 | |
| 1645577 | 20 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V8984 | ELBOW | 1 | |
| 1M1462 | 21 CLIP | 1 | |
| 2169199 | 22 UNION AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 9X2317 | UNION | 1 | |
| 2P1293 | 23 LOCKNUT (1-3/16-12-THD) | 2 | |
| 5P7466 | 24 CLIP (SLOT) | 2 | |
| 5P7467 | 25 CLIP (TAB) | 2 | |
| 5P7468 | 26 CLIP (SLOT) | 1 | |
| 5P7469 | 27 CLIP (TAB) | 1 | |
| 5P8112 | 28 GROMMET | 2 | |
| 6V9172 | 29 NUT (1-7/16-12-THD) | 2 | |
| 8T2525 | 30 GROMMET | 1 | |
| 8T4121 | 31 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4136 | 32 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4184 | 33 BOLT (M12X1.75X45-MM) | 1 | |
| 8T4223 | 34 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4224 | 35 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4908 | 36 BOLT (M8X1.25X25-MM) | 2 | |
| 8T7087 | 37 GROMMET (34-MM ID) | 1 | |
| 9V5382 | 38 GROMMET | 1 |
