System And Components
439-2111 LINES GP-FUELS/N LAJ659-UP
Group No: 439-2111

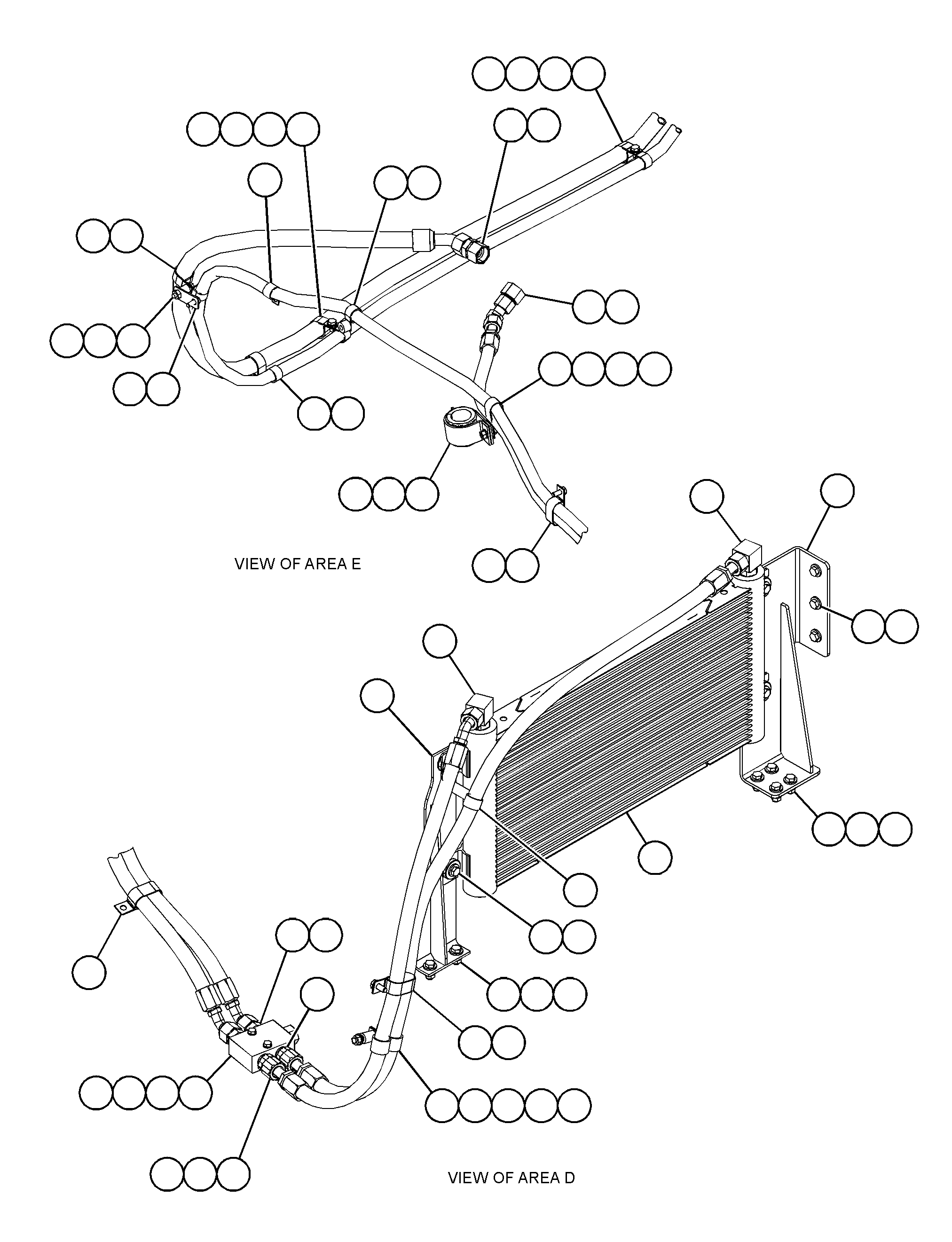

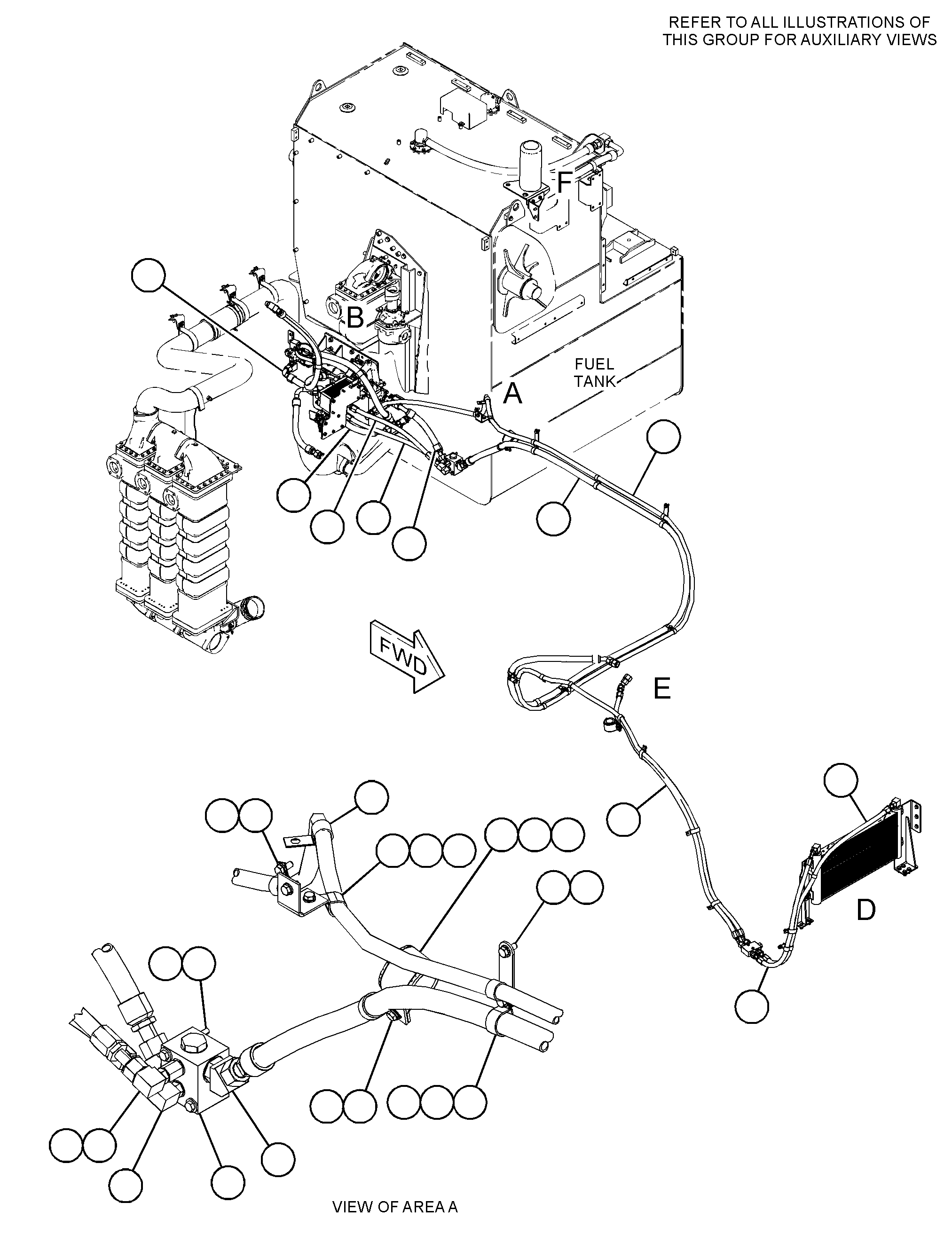

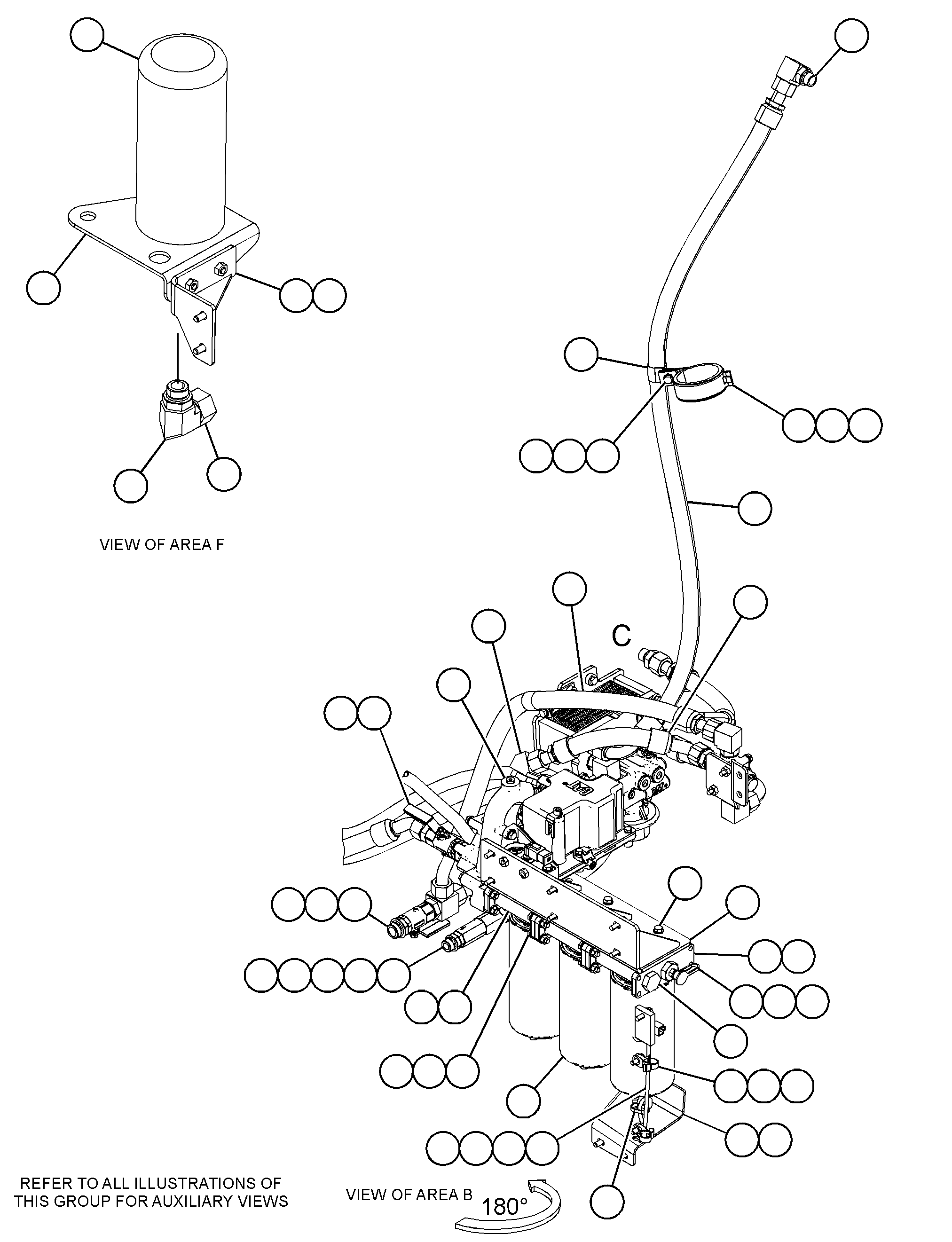

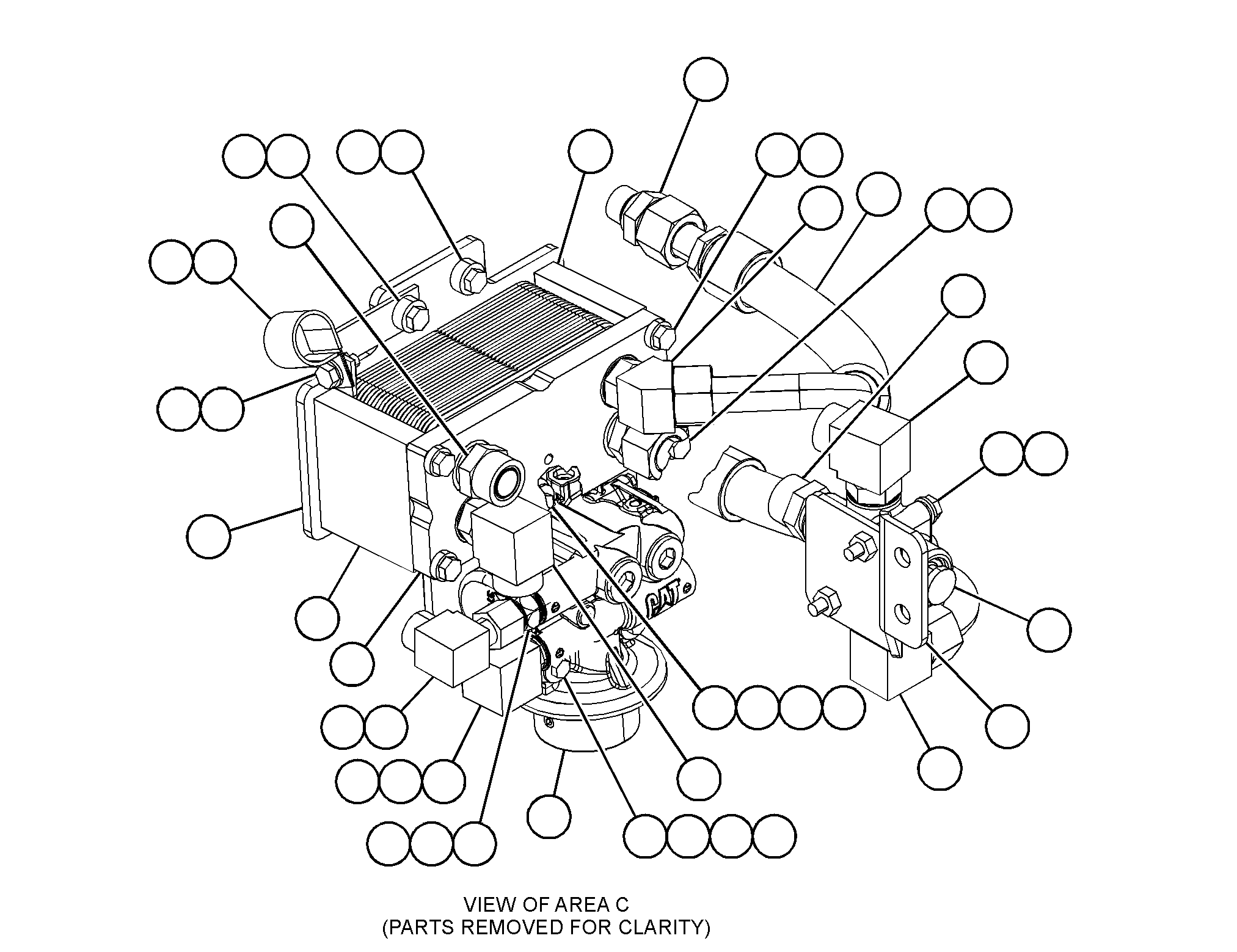

| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 1 | |
| 7K1181 | 2 STRAP-CABLE | 1 | |
| 8T9655 | 3 MOUNT-ISOLATION | 6 | |
| 1336934 | 4 SPACER (11X20X25-MM THK) | 1 | |
| 1495264 | 5 VALVE AS | 1 | |
| 1716723 | 6 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8T8899 | ELBOW | 1 | |
| 1782345 | 7 SENSOR GP-LIQUID LEVEL (WATER IN FUEL) | 1 | |
| 1882008 | 8 ELBOW AS | 1 | |
| 8T7970 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1911782 | 9 SPACER (8.5X12.7X38.2-MM THK) | 1 | |
| 1911783 | 10 SPACER (8.5X12.7X87.3-MM THK) | 2 | |
| 2790143 | 11 VALVE | 1 | |
| 2815934 | 12 ELBOW AS | 2 | |
| 6V9877 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 2899754 | 13 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3038195 | 14 PLATE AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3038196 | PLATE | 1 | |
| 3083405 | 15 CORE AS-OIL COOLER (HYDRAULIC) | 1 | |
| 3108716 | 16 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 3 | |
| 3196212 | 17 CONNECTOR AS | 2 | |
| 6V8714 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2287091 | 18 SEAL-O-RING | 1 | |
| 3196223 | 19 ELBOW AS | 3 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3211326 | 20 BASE AS-FILTER | 3 | |
| 3232268 | STUD-HOLLOW | 1 | |
| 3227970 | 21 BRACKET AS | 1 | |
| 5P2251 | GUSSET | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 3232542 | 22 BLOCK | 2 | |
| 3378235 | 23 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3380085 | 24 BRACKET | 1 | |
| 3574574 | 25 ADAPTER AS | 1 | |
| 8D8428 | ADAPTER | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3580360 | 26 CORE AS-OIL COOLER (HYDRAULIC) | 1 | |
| 3614742 | ISOLATOR | 4 | |
| 3696670 | 27 VALVE-CHECK | 1 | |
| 3915960 | 29 HOSE AS | 1 | |
| 6V9832 | 30 CAP (ORFS) | 2 | |
| 4156118 | 31 VALVE-THERMAL COMPENSATOR | 1 | |
| 4164703 | 32 PUMP GP-FUEL PRIMING (ELECTRIC) | 1 | |
| 4385386 | 33 FILTER AS-WATER SEP & FUEL (ULTRA HIGH EFFICIENCY) | 3 | |
| 4790856 | FILTER AS-WATER SEP & FUEL (ULTRA HIGH EFFICIENCY) | 3 | |
| 4517288 | 34 HOSE AS | 1 | |
| 4597737 | 35 BLOCK | 1 | |
| 4628880 | 36 HOSE AS | 1 | |
| 4628881 | 37 HOSE AS | 1 | |
| 4628886 | 38 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 4635421 | 39 PUMP GP-FUEL | 1 | |
| 4701666 | 40 HOSE AS | 1 | |
| 4701667 | 41 HOSE AS | 1 | |
| 4701669 | 42 HOSE AS | 1 | |
| 4701670 | 43 HOSE AS | 1 | |
| 4752685 | 44 HOSE AS | 1 | |
| 4752691 | 46 HOSE AS | 2 | |
| 4752692 | 47 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 4753356 | 48 HOSE AS | 1 | |
| 4760001 | 49 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 4760012 | 50 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 1273387 | BOSS (M10X1.5X80-MM) | 1 | |
| 4770052 | 51 HOSE AS | 1 | |
| 4832517 | 52 CLIP (LOOP) | 5 | |
| 5032810 | 53 HOSE AS | 1 | |
| 5051266 | 54 BRACKET AS | 1 | |
| 0673045 | 55 CLIP (LOOP) | 10 | |
| 1305300 | 56 CLIP | 1 | |
| 1488311 | 57 ADAPTER AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 8T1715 | ADAPTER | 1 | |
| 1488317 | 58 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8714 | CONNECTOR | 1 | |
| 1488362 | 59 ELBOW AS | 1 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488373 | 60 ELBOW AS | 1 | |
| 8C3364 | ELBOW | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1497738 | 61 CLIP (LOOP) | 2 | |
| 1576199 | 62 GROMMET | 1 | |
| 1594724 | 63 VALVE-BALL | 2 | |
| 1644227 | 64 CLIP | 2 | |
| 1765868 | 65 ADAPTER | 1 | |
| 1984777 | 66 WASHER-HARD (11X25X10-MM THK) | 8 | |
| 1R0755 | 67 FILTER-FUEL (ADVANCED EFFICIENCY) | 1 | |
| 2086135 | 68 CLIP (SLOT) | 1 | |
| 2086136 | 69 CLIP (TAB) | 1 | |
| 2153665 | 70 ELBOW | 1 | |
| 2256948 | 71 SEAL-O-RING | 6 | |
| 2287092 | 72 SEAL-O-RING | 6 | |
| 2287093 | 73 SEAL-O-RING | 1 | |
| 2385082 | 74 SEAL-O-RING | 1 | |
| 3717210 | 75 CONNECTOR | 1 | |
| 2815930 | 76 REDUCER AS | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 6V8946 | REDUCER | 1 | |
| 2815979 | 77 ELBOW AS | 3 | |
| 6V9007 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2M9780 | 78 SEAL-O-RING | 4 | |
| 3095133 | 79 PLUG AS | 1 | |
| 9S4181 | PLUG (1-5/16-12-THD) | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196219 | 80 ELBOW AS | 3 | |
| 6V9005 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196248 | 81 UNION AS | 1 | |
| 5P9560 | UNION | 1 | |
| 2385082 | SEAL-O-RING | 2 | |
| 3218649 | 82 VALVE AS-FLUID SAMPLING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3295515 | 83 TEE AS | 1 | |
| 6V8785 | TEE | 1 | |
| 2287093 | SEAL-O-RING | 2 | |
| 2385084 | SEAL-O-RING | 1 | |
| 2287105 | 84 SEAL-O-RING | 2 | |
| 3445675 | 85 NUT (M10X1.5-THD) | 4 | |
| 3E4353 | 86 WASHER-HARD (11X25X3-MM THK) | 2 | |
| 4392896 | 87 SPACER (11.5X20X30-MM THK) | 1 | |
| 4D7388 | 88 CLIP | 2 | |
| 4H1225 | 89 WASHER (11X22X6-MM THK) | 4 | |
| 5P7701 | 90 SEAL-O-RING | 1 | |
| 5P8182 | 91 GROMMET (46-MM ID) | 1 | |
| 2048000 | 92 MOUNTING-CABLE TIE | 2 | |
| 6V1572 | 93 CLIP (SLOT) | 1 | |
| 6V1573 | 94 CLIP (TAB) | 1 | |
| 6V1867 | 95 CLIP (SLOT) | 1 | |
| 6V1868 | 96 CLIP (TAB) | 1 | |
| 6V1869 | 97 GROMMET (65-MM ID) | 1 | |
| 6V3822 | 98 BOLT (M10X1.5X35-MM) | 1 | |
| 3095137 | 99 CONNECTOR AS | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 6V8640 | 100 CONNECTOR | 4 | |
| 7D7233 | 101 CLIP (LOOP) | 8 | |
| 6V9834 | 102 CAP | 1 | |
| 8T9085 | 103 BOLT (M10X1.5X150-MM) | 1 | |
| 7X2539 | 104 BOLT (M8X1.25X110-MM) | 2 | |
| 7X7729 | 105 WASHER (11X25X3-MM THK) | 13 | |
| 8C2926 | 106 BOLT (M10X1.5X140-MM) | 3 | |
| 4792171 | 107 BOLT AS | 26 | |
| 8T1718 | 108 ELBOW | 1 | |
| 8T4121 | 109 WASHER-HARD (11X21X2.5-MM THK) | 36 | |
| 8T4133 | 110 NUT (M10X1.5-THD) | 15 | |
| 8T4136 | 111 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4137 | 112 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4172 | 113 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4182 | 114 BOLT (M10X1.5X45-MM) | 12 | |
| 4792172 | 115 BOLT AS | 2 | |
| 0993001 | 116 CLIP | 1 | |
| 8T4186 | 117 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4195 | 118 BOLT (M10X1.5X30-MM) | 9 | |
| 8T4196 | 119 BOLT (M10X1.5X35-MM) | 8 | |
| 8T4198 | 120 BOLT (M10X1.5X100-MM) | 2 | |
| 2042281 | 121 STRAP-CABLE | 2 | |
| 8T4224 | 122 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T6466 | 123 BOLT (M10X1.5X60-MM) | 1 | |
| 8T6869 | 124 BOLT (M8X1.25X60-MM) | 3 | |
| 9N0869 | 126 WASHER-HARD (8.8X25.5X2-MM THK) | 6 | |
| 2860693 | 127 SPACER (11X25X18-MM THK) | 1 | |
| 3196249 | 128 PLUG AS | 3 | |
| 6V9511 | PLUG (1-3/16-12-THD) | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 3501571 | 129 BRACKET AS | 1 | |
| 8T4185 | 130 BOLT (M10X1.5X50-MM) | 1 |
