System And Components

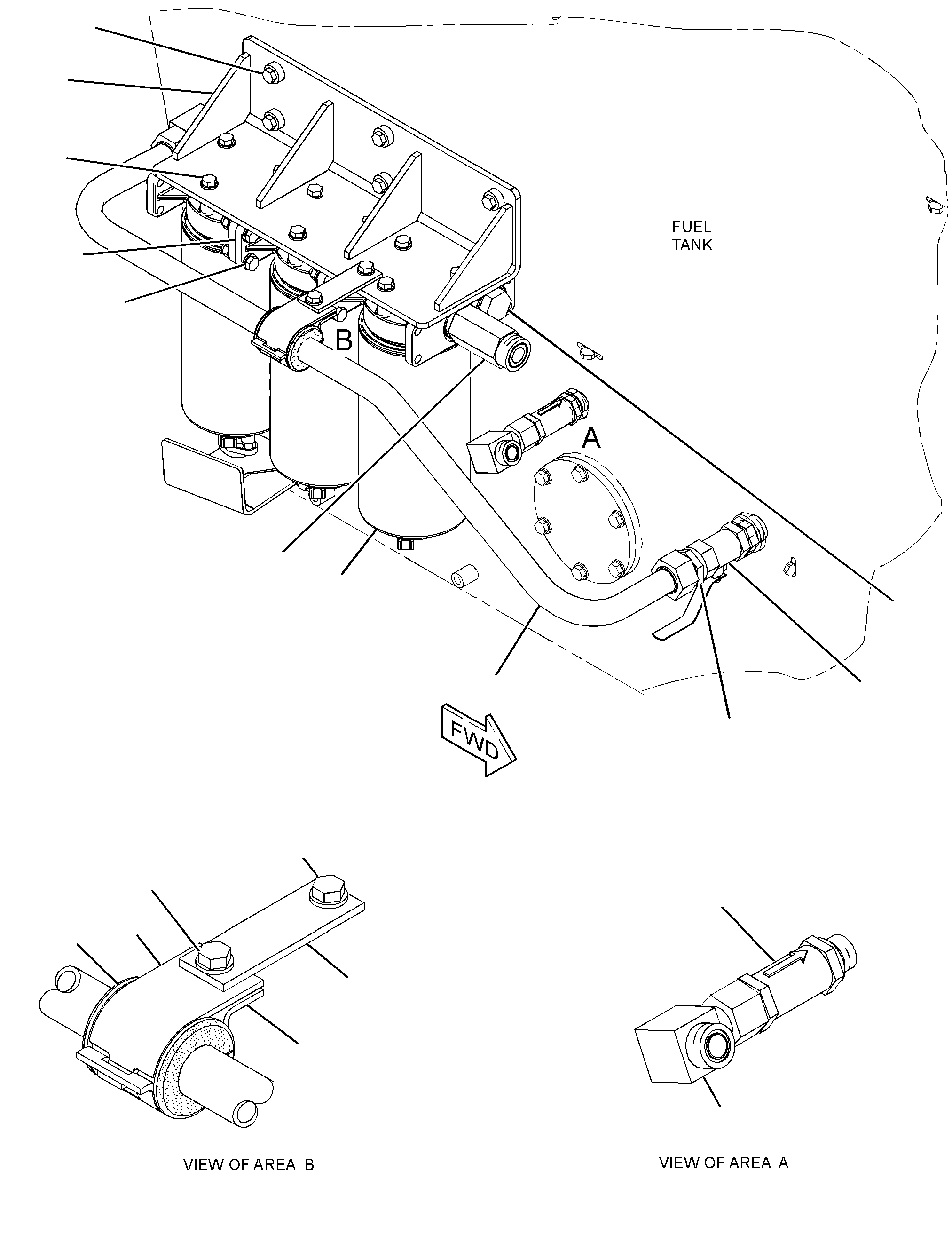

311-8657 LINES GP-FUEL FILTERS/N WSP1-111
Group No: 311-8657
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 1 | |
| 9T3752 | 2 VALVE-CHECK | 1 | |
| 1594724 | 3 VALVE-BALL | 1 | |
| 1782345 | 4 SENSOR GP-LIQUID LEVEL (WATER SEPARATOR) | 1 | |
| 2713571 | 5 PLATE | 1 | |
| 3085290 | 6 TUBE AS | 1 | |
| 3108716 | 7 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3221221 | 8 FILTER GP-WATER SEP & FUEL | 3 | |
| 3378235 | 9 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1305300 | 10 CLIP | 1 | |
| 1618021 | 11 CONNECTOR (O-RING) | 1 | |
| 1984777 | 12 WASHER-HARD (11X25X10-MM THK) | 6 | |
| 2256948 | 13 SEAL-O-RING | 4 | |
| 2287092 | 14 SEAL-O-RING | 1 | |
| 2287094 | 15 SEAL-O-RING | 3 | |
| 5P7468 | 16 CLIP (SLOT) | 1 | |
| 5P7469 | 17 CLIP (TAB) | 1 | |
| 5P7701 | 18 SEAL-O-RING | 6 | |
| 5P9085 | 19 CLIP (LOOP) | 1 | |
| 6V1874 | 20 GROMMET (31-MM ID) | 1 | |
| 6V5050 | 21 SEAL-O-RING | 1 | |
| 6V9853 | 22 ELBOW | 1 | |
| 8C3364 | 23 ELBOW | 1 | |
| 8T4121 | 24 WASHER-HARD (11X21X2.5-MM THK) | 32 | |
| 8T4133 | 25 NUT (M10X1.5-THD) | 9 | |
| 8T4136 | 26 BOLT (M10X1.5X25-MM) | 12 | |
| 8T4182 | 27 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4195 | 28 BOLT (M10X1.5X30-MM) | 1 | |
| 8T4196 | 29 BOLT (M10X1.5X35-MM) | 8 | |
| 8T7927 | 30 CONNECTOR | 1 | |
| 9S4181 | 31 PLUG (1-5/16-12-THD) | 1 | |
| 9S9334 | 32 PLUG (1-5/16-12-THD) | 1 |
