System And Components

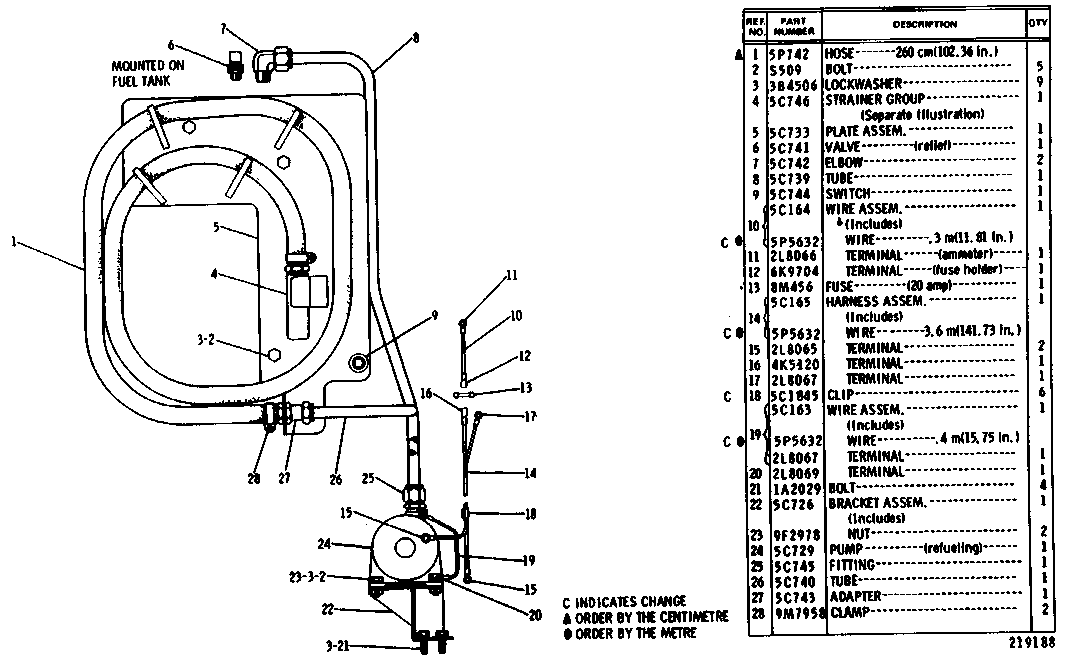

5C160 REFUELING PUMP GROUP--Type 15C746 Strainer parts are shown on Page 59. AN ATTACHMENT
Group No: 5C160
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P0742 | 1 HOSE 260 cm(102.36 in.) | NULL | |
| 0S0509 | 2 BOLT | 5 | |
| 3B4506 | 3 LOCKWASHER | 9 | |
| 5C0746 | 4 STRAINER GROUP | 1 | |
| 5C0733 | 5 PLATE ASSEM. | 1 | |
| 5C0741 | 6 VALVE (relief) | 1 | |
| 5C0742 | 7 ELBOW | 2 | |
| 5C0739 | 8 TUBE | 1 | |
| 5C0744 | 9 SWITCH | 1 | |
| 5C0164 | 10 WIRE ASSEM. | 1 | |
| 5P5632 | WIRE .3 m(11.81 in.) | NULL | |
| 2L8066 | 11 TERMINAL (ammeter) | 1 | |
| 6K9704 | 12 TERMINAL (fuse holder) | 1 | |
| 8M0456 | 13 FUSE (20 amp) | 1 | |
| 5C0165 | 14 HARNESS ASSEM. | 1 | |
| 5P5632 | WIRE 3.6 m(141.73 in.) | NULL | |
| 2L8065 | 15 TERMINAL | 2 | |
| 4K5120 | 16 TERMINAL | 1 | |
| 2L8067 | 17 TERMINAL | 1 | |
| 5C1845 | 18 CLIP | 6 | |
| 5C0163 | 19 WIRE ASSEM. | 1 | |
| 5P5632 | WIRE .4 m(15.75 in.) | NULL | |
| 2L8067 | TERMINAL | 1 | |
| 2L8069 | 20 TERMINAL | 1 | |
| 1A2029 | 21 BOLT | 4 | |
| 5C0726 | 22 BRACKET ASSEM. | 1 | |
| 9F2978 | 23 NUT | 2 | |
| 5C0729 | 24 PUMP (refueling) | 1 | |
| 5C0745 | 25 FITTING | 1 | |
| 5C0740 | 26 TUBE | 1 | |
| 5C0743 | 27 ADAPTER | 1 | |
| 9M7958 | 28 CLAMP | 2 |
