System And Components

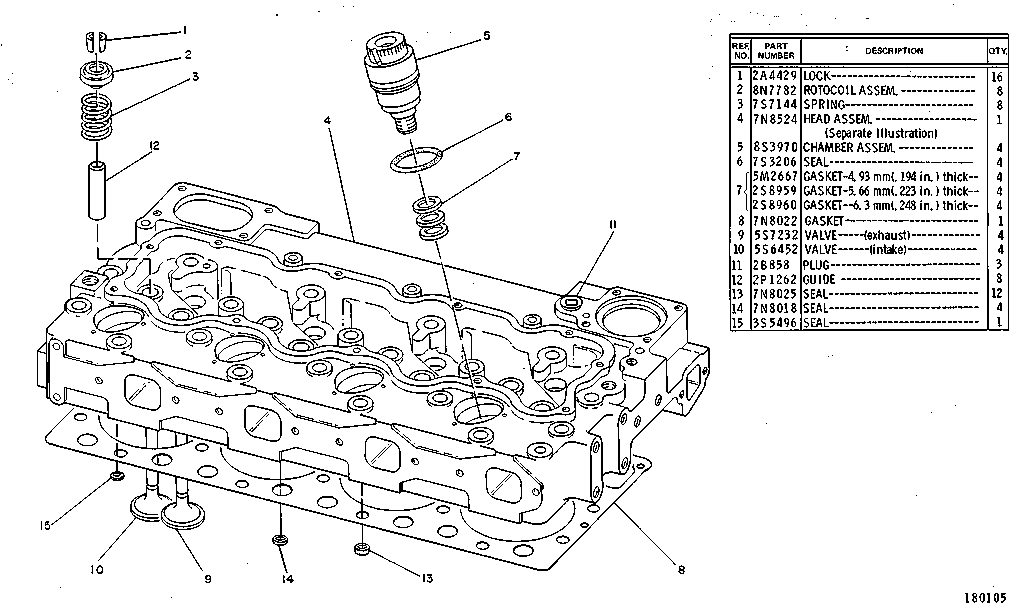

5C6194 CYLINDER HEAD GROUPENGINE SERIAL NO. 48V52799-UP. 7N8524 HEAD PARTS ARE SHOWN ON PAGE 15
Group No: 5C6194
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2A4429 | 1 LOCK | 16 | |
| 8N7782 | 2 ROTOCOIL ASSEM. | 8 | |
| 7S7144 | 3 SPRING | 8 | |
| 7N8524 | 4 HEAD ASSEM. | 1 | |
| 8S3970 | 5 CHAMBER ASSEM. | 4 | |
| 7S3206 | 6 SEAL | 4 | |
| 5M2667 | 7 GASKET 4.93 mm(.194 in.) thick | 4 | |
| 2S8959 | GASKET 5.66 mm(.223 in.) thick | 4 | |
| 2S8960 | GASKET 6.3 mm(.248 in.) thick | 4 | |
| 7N8022 | 8 GASKET | 1 | |
| 5S7232 | 9 VALVE (exhaust) | 4 | |
| 5S6452 | 10 VALVE (intake) | 4 | |
| 2B0858 | 11 PLUG | 3 | |
| 2P1262 | 12 GUIDE | 8 | |
| 7N8025 | 13 SEAL | 12 | |
| 7N8018 | 14 SEAL | 4 | |
| 3S5496 | 15 SEAL | 1 |
