System And Components

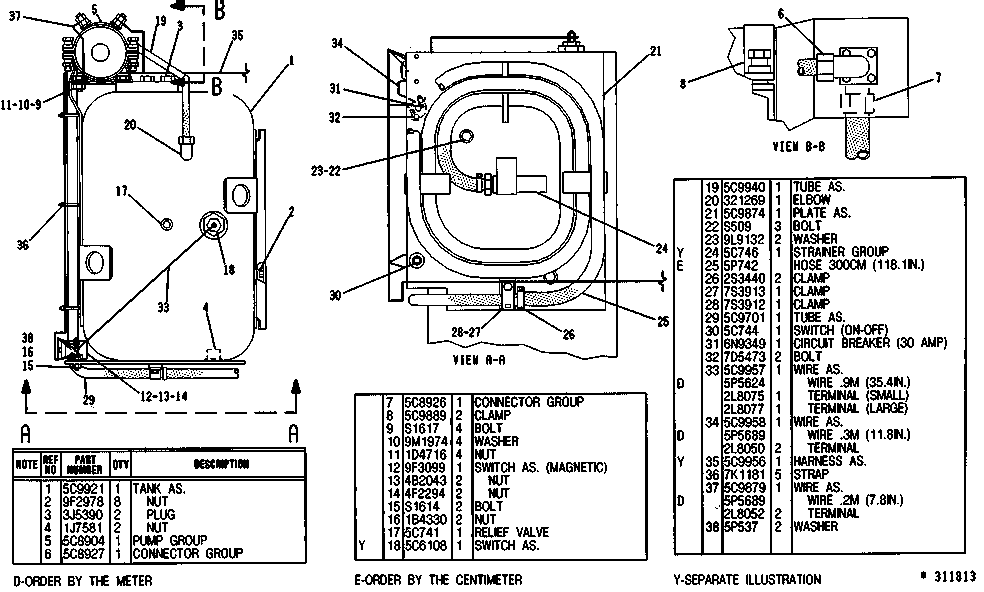

5C9941 REFUELING PUMP GROUP5C746 Strainer, 5C6108 Switch and 5C9956 Harness parts are shown on Pages 65, 66 and 67
Group No: 5C9941
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5C9921 | 1 TANK AS | 1 | |
| 9F2978 | 2 NUT-WELD | 8 | |
| 3J5390 | 3 PLUG | 2 | |
| 1J7581 | 4 NUT-WELD | 2 | |
| 5C8904 | 5 PUMP & MOTOR GP | 1 | |
| 5C8927 | 6 CONNECTOR GP | 1 | |
| 5C8926 | 7 CONNECTOR GP | 1 | |
| 5C9889 | 8 CLAMP | 2 | |
| 0S1617 | 9 BOLT | 4 | |
| 9M1974 | 10 WASHER | 4 | |
| 1D4716 | 11 NUT-FULL | 4 | |
| 9F3099 | 12 SWITCH AS (MAGNETIC) | 1 | |
| 4B2043 | 13 NUT | 2 | |
| 4F2294 | 14 NUT | 2 | |
| 0S1614 | 15 BOLT | 2 | |
| 1B4330 | 16 NUT | 2 | |
| 5C0741 | 17 RELIEF VALVE | 1 | |
| 5C6108 | 18 SWITCH AS | 1 | |
| 5C9940 | 19 TUBE AS | 1 | |
| 0321269 | 20 ELBOW-FLARED | 1 | |
| 5C9874 | 21 PLATE AS | 1 | |
| 0S0509 | 22 BOLT | 3 | |
| 9L9132 | 23 WASHER | 2 | |
| 5C0746 | 24 STRAINER GP | 1 | |
| 5P0742 | 25 HOSE (118.1IN.) | NULL | |
| 2S3440 | 26 CLAMP-HOSE | 2 | |
| 7S3913 | 27 CLIP (SLOT) | 1 | |
| 7S3912 | 28 CLIP (TAB) | 1 | |
| 5C9701 | 29 TUBE AS | 1 | |
| 5C0744 | 30 SWITCH (ON-OFF) | 1 | |
| 6N9349 | 31 CRCT BREAKER AS (30 AMP) | 1 | |
| 7D5473 | 32 BOLT-SOCKET HEAD | 2 | |
| 5C9957 | 33 WIRE AS | 1 | |
| 5P5624 | WIRE (35.4IN.) | NULL | |
| 2L8075 | TERMINAL (SMALL) | 1 | |
| 2L8077 | TERMINAL (LARGE) | 1 | |
| 5C9958 | 34 WIRE AS | 1 | |
| 5P5689 | WIRE (11.8IN.) | NULL | |
| 2L8050 | TERMINAL | 2 | |
| 5C9956 | 35 HARNESS AS | 1 | |
| 7K1181 | 36 STRAP-CABLE | 5 | |
| 5C9879 | 37 WIRE AS | 1 | |
| 5P5689 | WIRE (7.8IN.) | NULL | |
| 2L8052 | TERMINAL | 2 | |
| 5P0537 | 38 WASHER | 2 |
