System And Components
Assembly
100%

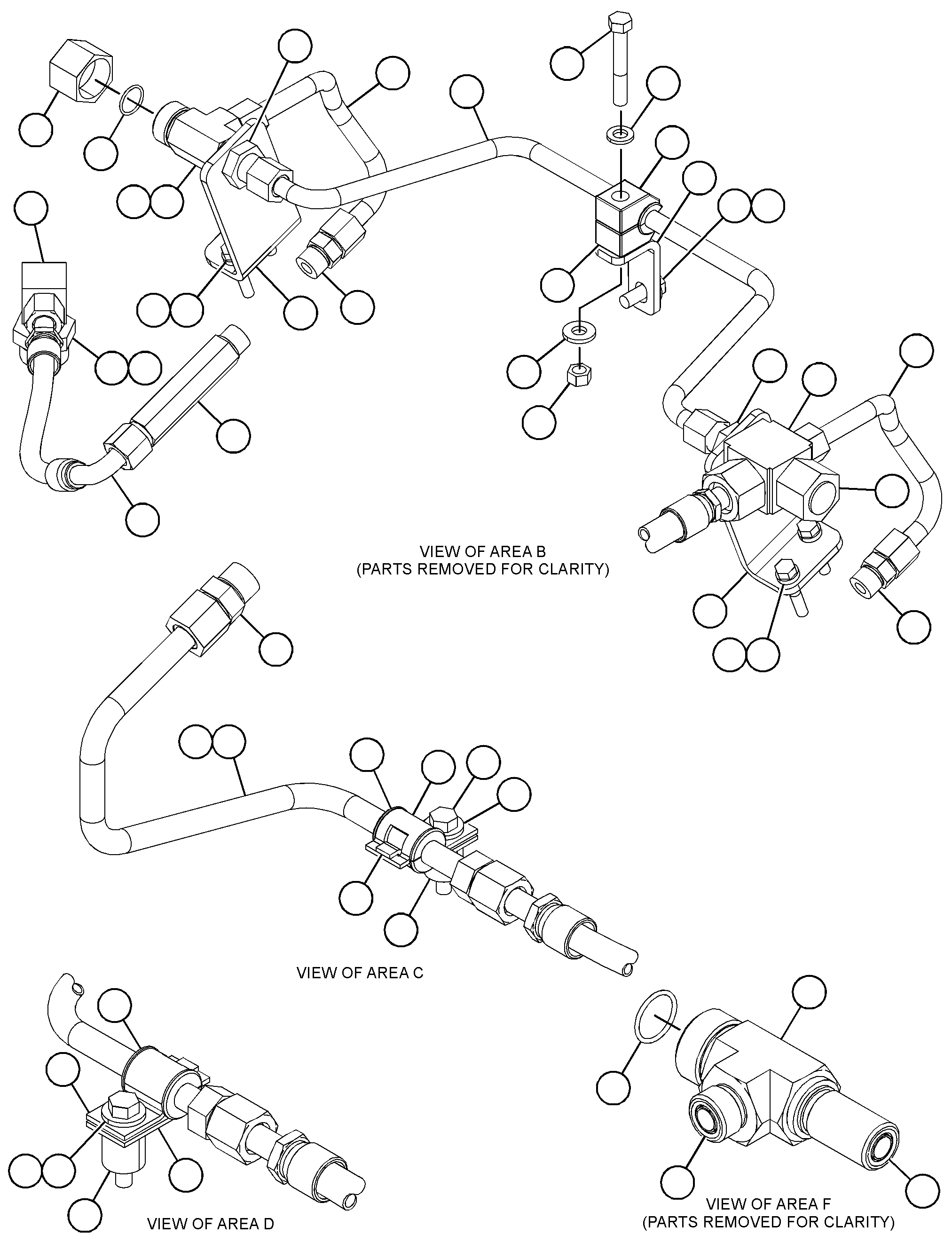

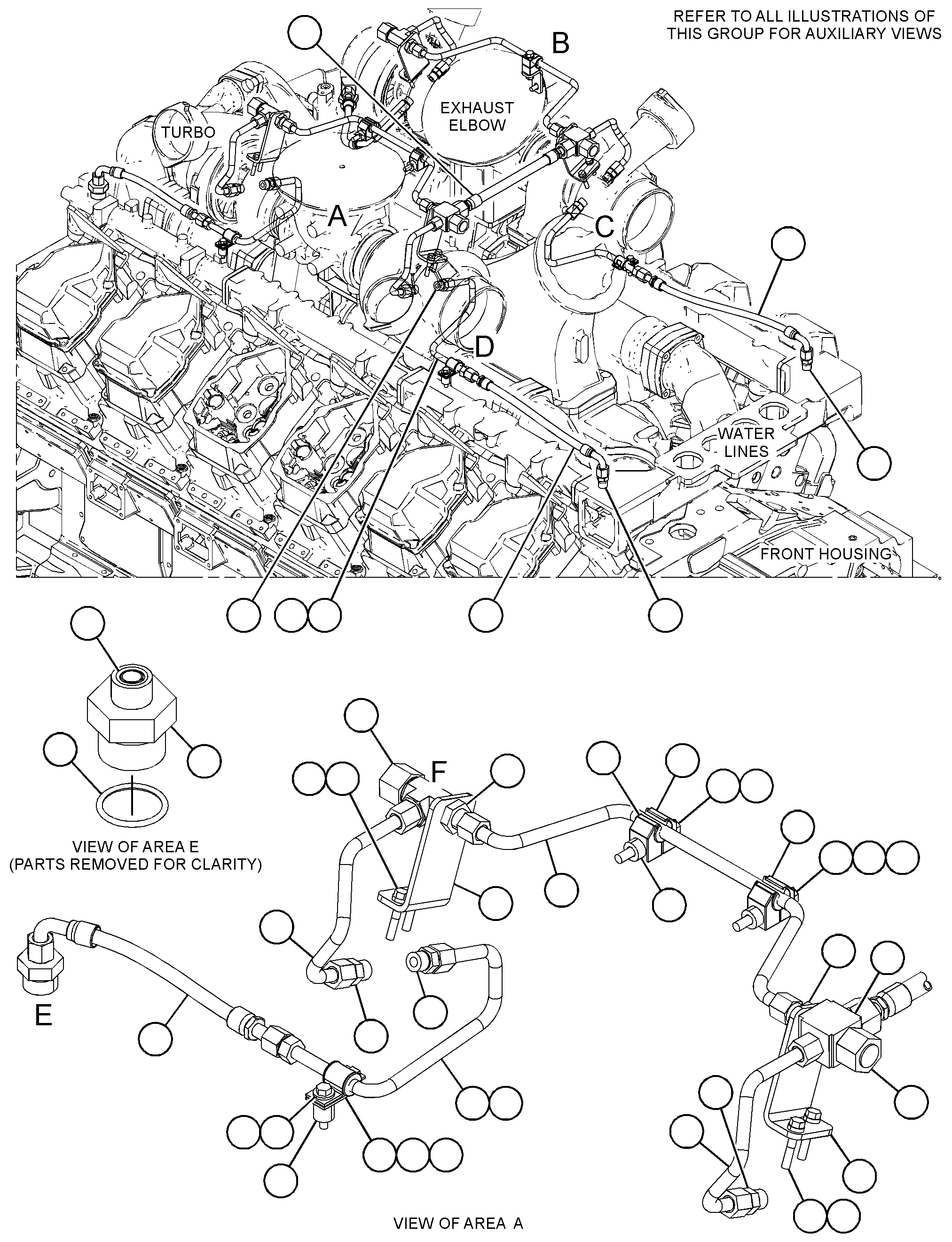

462-6396 LINES GP-TURBOCHARGER WATERS/N WHD1-UP

Group No: 462-6396
Part NumberPart NameQty
4P07071 CLAMP AS6
3078373GROMMET1
36505812 CONNECTOR AS7
6V6609SEAL-O-RING1
6V8639CONNECTOR1
1808424SEAL-O-RING1
37171743 ELBOW AS1
6V6609SEAL-O-RING1
6V8625ELBOW1
1808424SEAL-O-RING1
51008284 TUBE AS2
6V94895 TEE-BULKHEAD2
45016726 HOSE AS-WATER1
16401507 SPACER (9X20X20-MM THK)3
36646788 CONNECTOR AS2
8C6872CONNECTOR1
1808424SEAL-O-RING1
42161899 CONNECTOR AS1
6V6609SEAL-O-RING1
9X2304CONNECTOR1
1808424SEAL-O-RING1
521259810 HOSE AS1
450576711 BRACKET4
484954812 TUBE AS4
462639713 TUBE AS1
463617114 TUBE AS1
091008115 SPACER (10.5X20X10-MM THK)2
0L114316 BOLT (3/8-16X2.5-IN)1
488277517 ADAPTER AS2
1808424SEAL-O-RING2
2949072SEAL-O-RING2
4882774ADAPTER1
0S159418 BOLT (3/8-16X1-IN)1
510082919 TUBE AS1
0T057320 BOLT (3/8-16X2.75-IN)2
180842421 SEAL-O-RING8
1B957522 BOLT (5/16-18X1.56-IN)8
214104823 SPACER (8.8X16X4-MM THK)8
294907224 SEAL-O-RING2
519731625 HOSE AS2
353795726 GROMMET3
3E435227 WASHER-HARD (8.8X20.5X2.5-MM THK)3
4P902928 BRACKET1
5M289429 WASHER-HARD (10.2X18.5X2.5-MM THK)3
5P577730 ADAPTER-O-RING1
6V506431 SEAL-O-RING2
6V916932 NUT (13/16-16-THD)4
519731733 HOSE AS1
6V983234 CAP (ORFS)4
8T188735 CLIP (SLOT)3
8T188836 CLIP (TAB)3
9S875237 NUT-FULL (3/8-16-THD)1
9X645838 WASHER-HARD (10.2X22.5X3-MM THK)2
1H551439 BOLT (5/16-18X1.625-IN)3
9X840840 CONNECTOR1
