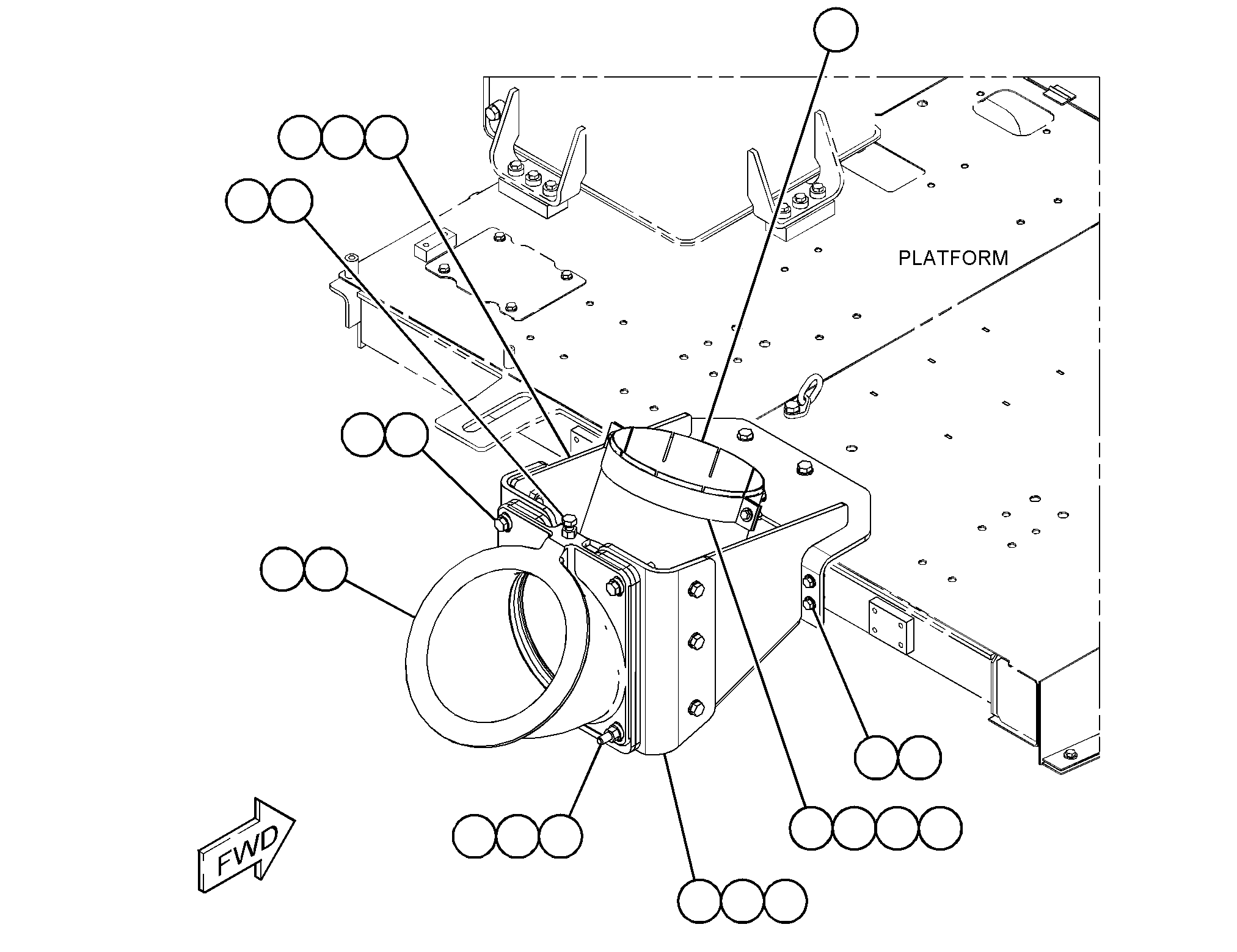

396-1309 PIPE GP-EXHAUST -PLATFORMS/N RTL1-UP
Group No: 396-1309
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4852786 | 1 CLAMP | 2 | |
| 1582317 | 2 ELBOW | 1 | |
| 4224733 | 3 BRACKET AS | 1 | |
| 4224738 | 4 TUBE AS | 1 | |
| 4243459 | 5 PLATE | 4 | |
| 4426161 | 6 BRACKET AS | 1 | |
| 1364182 | 7 BOLT (M16X2X100-MM) | 2 | |
| 1984780 | 8 WASHER-HARD (17.5X32X8-MM THK) | 4 | |
| 3429452 | 9 STUD-TAPERLOCK (M16X2X120-MM) | 2 | |
| 3E8017 | 10 LOCKNUT (M10X1.5-THD) | 2 | |
| 7X2553 | 11 BOLT (M16X2X40-MM) | 6 | |
| 7X7729 | 12 WASHER (11X25X3-MM THK) | 4 | |
| 8T4132 | 13 NUT (M16X2-THD) | 3 | |
| 8T4140 | 14 BOLT (M16X2X60-MM) | 1 | |
| 8T4186 | 15 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4193 | 16 BOLT (M16X2X50-MM) | 4 | |
| 8T4223 | 17 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4956 | 18 BOLT (M12X1.75X35-MM) | 4 | |
| 9X8257 | 19 WASHER (17.5X30X3.5-MM THK) | 10 |
