System And Components

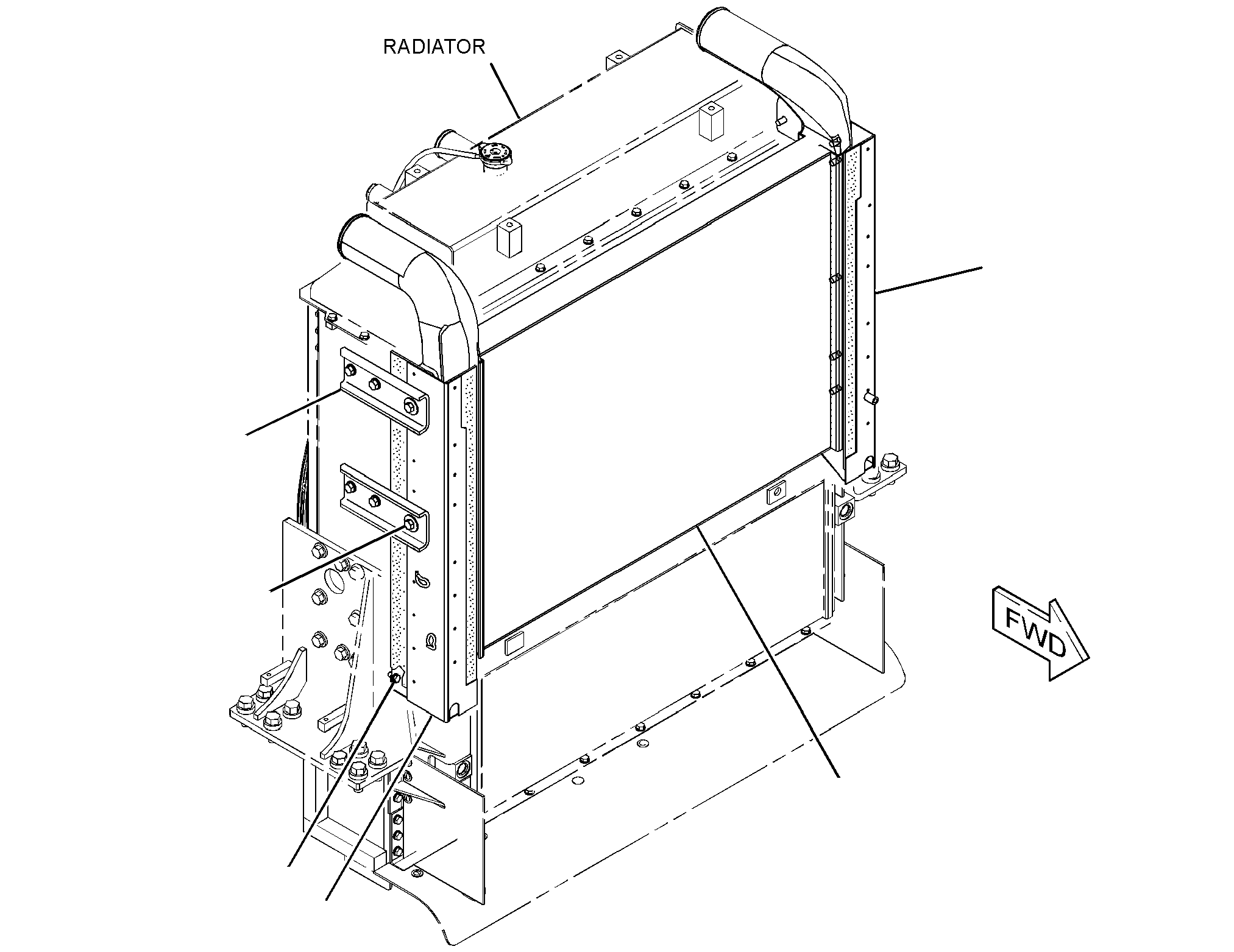

224-6416 AFTERCOOLER GP-AIRS/N 4YR1-UP; 89Z1-UP
Group No: 224-6416
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8D3786 | 1 MOUNTING | 4 | |
| 2319394 | 2 CORE AS-AFTERCOOLER | 1 | |
| 2537560 | 3 BRACKET | 4 | |
| 3337745 | 4 BAFFLE AS | 1 | |
| 5F7844 | BOSS (3/8-16-THD) | 1 | |
| 6C3678 | RIVET | 17 | |
| 1009992 | WASHER (4.8X25X2-MM THK) | 17 | |
| 3337744 | 5 BAFFLE AS | 1 | |
| 6C3678 | RIVET | 17 | |
| 7T1099 | LINK | 2 | |
| 1009992 | WASHER (4.8X25X2-MM THK) | 17 | |
| 5P2424 | 6 BOLT (1/2-13X2.25-IN) | 4 | |
| 7T9942 | 7 WASHER (13.5X49X11.75-MM THK) | 4 | |
| 8T4121 | 8 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 9 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4223 | 10 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4821 | 11 WASHER (13.5X40X3-MM THK) | 4 | |
| 8T8917 | 12 BOLT (1/2-13X1.25-IN) | 8 |
