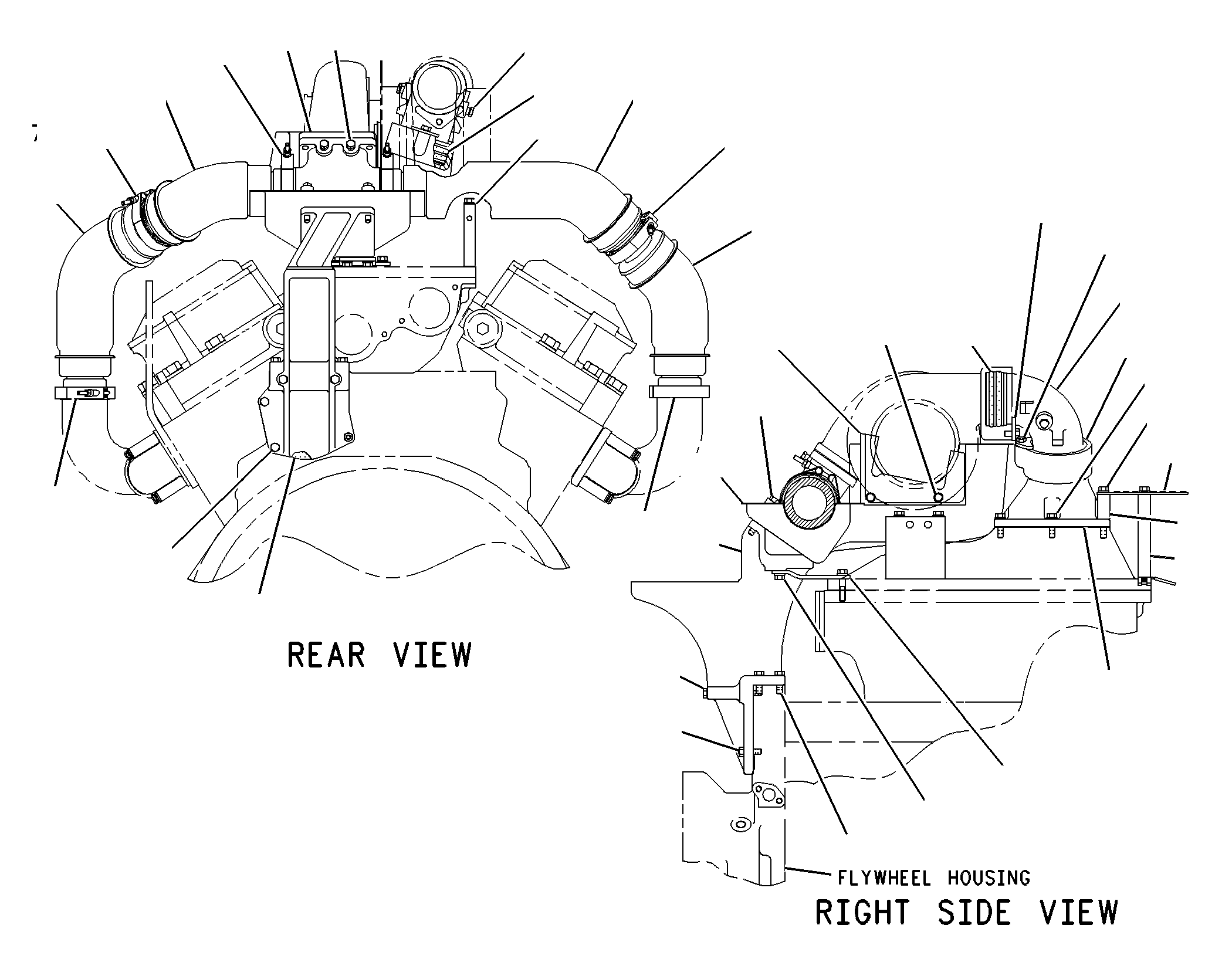

131-3269 LINES GP-AIRS/N 80M450-UP

Group No: 131-3269
Part NumberPart NameQty
7E32051 MANIFOLD-INLET1
3E74282 PLUG-PIPE (1/4-18 NPTF THD)2
8N08793 CLAMP4
12154594 TUBE AS-EXHAUST1
12154615 TUBE AS-EXHAUST1
8N08786 CLAMP2
1W04817 RING-EXHAUST SEAL2
10694088 SEAL-EXHAUST2
12154559 TUBE AS-EXHAUST1
121545710 TUBE AS-EXHAUST1
5M289411 WASHER (2.5MM THK)12
8N225812 SHIELD AS-BOTTOM1
6V5044NUT-WELD (5/16-18 THD)7
9M4136SPACER (12.7MM THK)5
1W618613 SHIELD AS1
6V5044NUT-WELD (5/16-18 THD)2
9M197414 WASHER-HARD (2MM THK)2
5P995915 BOLT (5/16-18X.5IN)2
8N257416 BRACKET1
0S159417 BOLT (3/8-16X1 IN)2
129941718 GASKET1
1W538019 ADAPTER1
7W591920 ELBOW-OUTLET1
4L833721 SEAL-O-RING (81MM ID)2
7W194422 RETAINER1
0S050923 BOLT (3/8-16X.75IN)2
5S118824 SEAL-O-RING (88.26 ID)2
5P275525 BOLT-HIGH TEMPERATURE (3/8-16X69.85MM)4
8T676526 PLUG-PIPE (1/4-18 NPTF THD)2
3B191527 BOLT (3/8-16X1.375IN)5
7W314528 PLATE1
2W962429 SUPPORT-TURBOCHARGER1
0S158830 BOLT (3/8-16X1.25IN)6
7W564831 GASKET-ACCESSORY DRIVE1
0S160832 BOLT (3/8-16X3.75IN)2
0L076533 STUD (3/8-16X1.75IN OAL)1
9S875234 NUT (3/8-16 THD)1
112514535 BRACKET1
0L135236 BOLT (3/8-16X3.25IN)3
1W630837 PLATE1
067984638 SPACER-PIPE3
8S794139 PIPE2
