System And Components

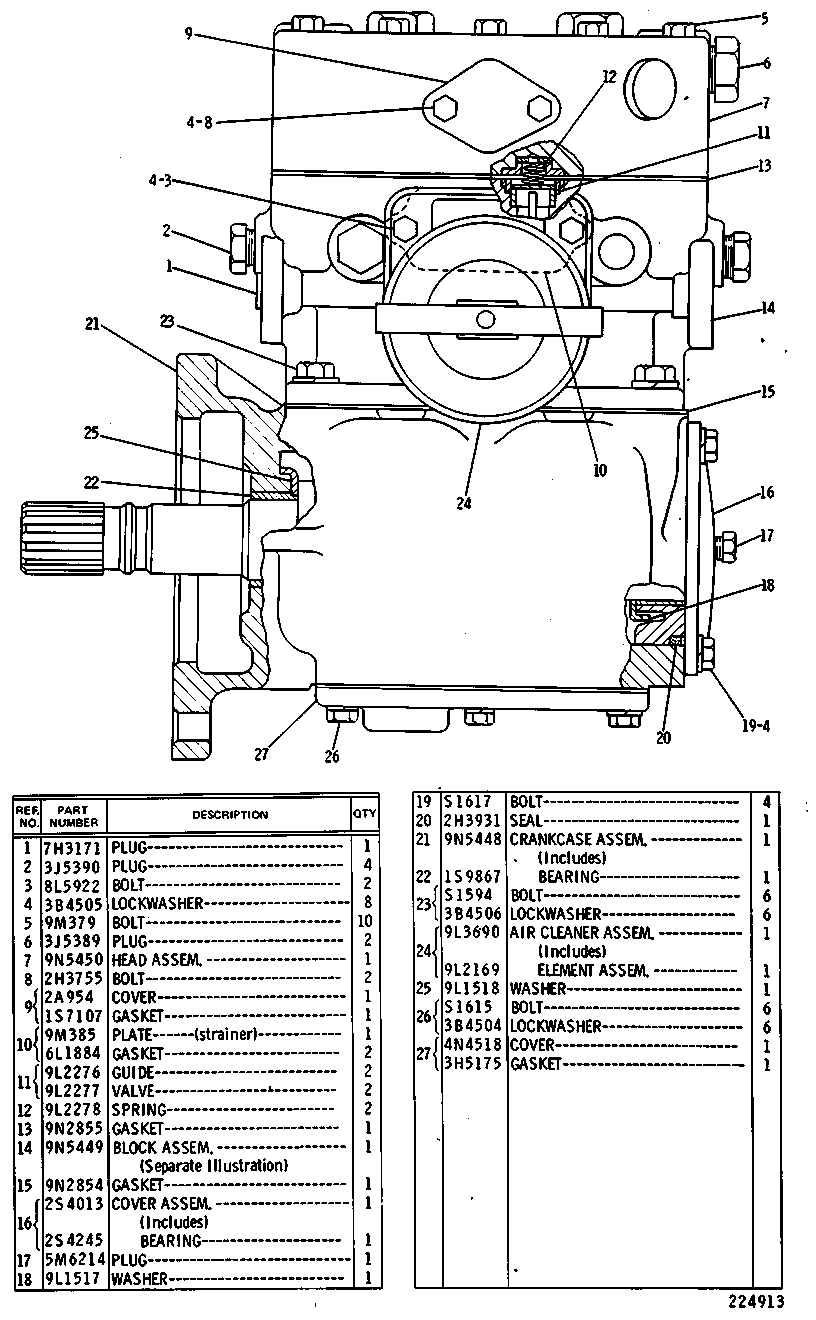

9N5447 AIR COMPRESSOR GROUPPart of 9N5453 Air Compressor Group shown on Page 285A
Group No: 9N5447
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7H3171 | 1 PLUG | 1 | |
| 3J5390 | 2 PLUG | 4 | |
| 8L5922 | 3 BOLT | 2 | |
| 3B4505 | 4 LOCKWASHER | 8 | |
| 9M0379 | 5 BOLT | 10 | |
| 3J5389 | 6 PLUG | 2 | |
| 9N5450 | 7 HEAD ASSEM. | 1 | |
| 2H3755 | 8 BOLT | 2 | |
| 2A0954 | 9 COVER | 1 | |
| 1S7107 | GASKET | 1 | |
| 9M0385 | 10 PLATE (strainer) | 1 | |
| 6L1884 | GASKET | 2 | |
| 9L2276 | 11 GUIDE | 2 | |
| 9L2277 | VALVE | 2 | |
| 9L2278 | 12 SPRING | 2 | |
| 9N2855 | 13 GASKET | 1 | |
| 9N5449 | 14 BLOCK ASSEM. | 1 | |
| 9N2854 | 15 GASKET | 1 | |
| 2S4013 | 16 COVER ASSEM. | 1 | |
| 2S4245 | BEARING | 1 | |
| 5M6214 | 17 PLUG | 1 | |
| 9L1517 | 18 WASHER | 1 | |
| 0S1617 | 19 BOLT | 4 | |
| 2H3931 | 20 SEAL | 1 | |
| 9N5448 | 21 CRANKCASE ASSEM. | 1 | |
| 1S9867 | 22 BEARING | 1 | |
| 0S1594 | 23 BOLT | 6 | |
| 3B4506 | LOCKWASHER | 6 | |
| 9L3690 | 24 AIR CLEANER ASSEM. | 1 | |
| 9L2169 | ELEMENT ASSEM. | 1 | |
| 9L1518 | 25 WASHER | 1 | |
| 0S1615 | 26 BOLT | 6 | |
| 3B4504 | LOCKWASHER | 6 | |
| 4N4518 | 27 COVER | 1 | |
| 3H5175 | GASKET | 1 |
