System And Components

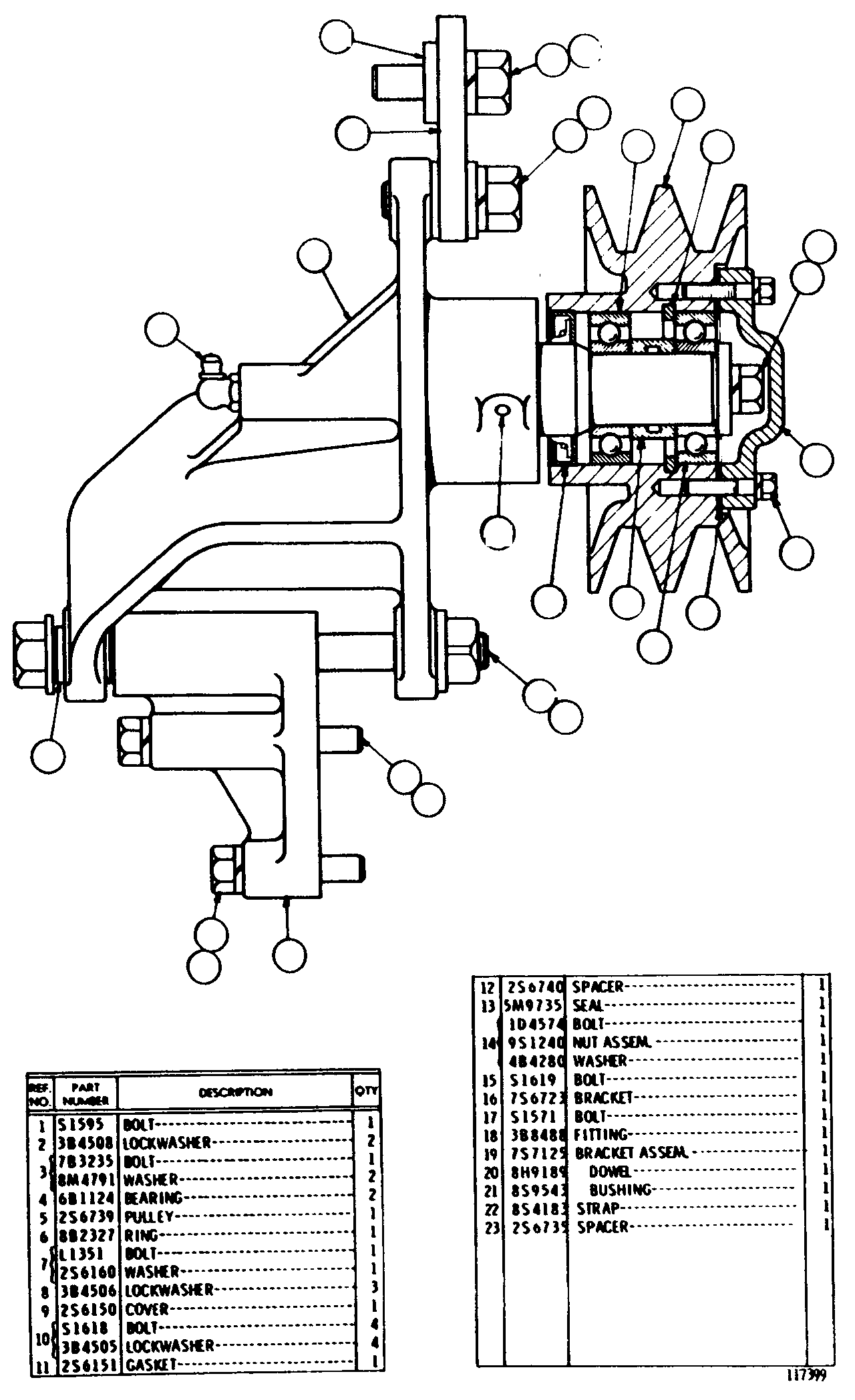

2P9558 BELT TIGHENER GROUPSerial No. 3N38169-Up
Group No: 2P9558
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S1595 | 1 BOLT | 1 | |
| 3B4508 | 2 LOCKWASHER | 2 | |
| 7B3235 | 3 BOLT | 1 | |
| 8M4791 | WASHER | 2 | |
| 6B1124 | 4 BEARING | 2 | |
| 2S6739 | 5 PULLEY | 1 | |
| 8B2327 | 6 RING | 1 | |
| 0L1351 | 7 BOLT | 1 | |
| 2S6160 | WASHER | 1 | |
| 3B4506 | 8 LOCKWASHER | 3 | |
| 2S6150 | 9 COVER | 1 | |
| 0S1618 | 10 BOLT | 4 | |
| 3B4505 | LOCKWASHER | 4 | |
| 2S6151 | 11 GASKET | 1 | |
| 2S6740 | 12 SPACER | 1 | |
| 5M9735 | 13 SEAL | 1 | |
| 1D4574 | 14 BOLT | 1 | |
| 9S1240 | NUT ASSEM. | 1 | |
| 4B4280 | WASHER | 1 | |
| 0S1619 | 15 BOLT | 1 | |
| 7S6723 | 16 BRACKET | 1 | |
| 0S1571 | 17 BOLT | 1 | |
| 3B8488 | 18 FITTING | 1 | |
| 7S7125 | 19 BRACKET ASSEM. | 1 | |
| 8H9189 | 20 DOWEL | 1 | |
| 8S9543 | 21 BUSHING | 1 | |
| 8S4183 | 22 STRAP | 1 | |
| 2S6735 | 23 SPACER | 1 |
