System And Components

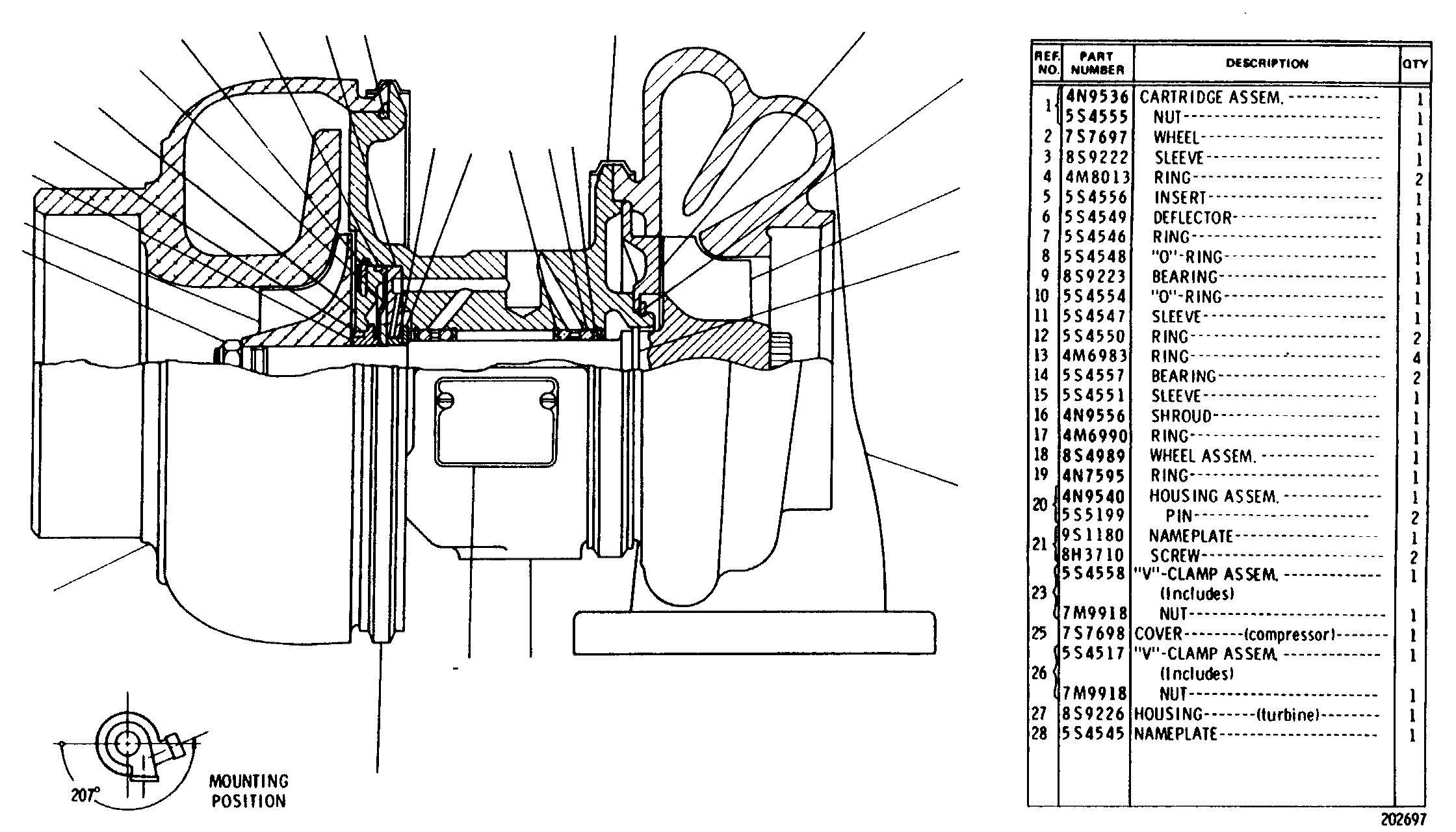

4N9554 TURBOCHARGER GROUPPart of 7S1701 Turbocharger Group shown on Page 138
Group No: 4N9554
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4N9536 | 1 CARTRIDGE ASSEM. | 1 | |
| 5S4555 | NUT | 1 | |
| 7S7697 | 2 WHEEL | 1 | |
| 8S9222 | 3 SLEEVE | 1 | |
| 4M8013 | 4 RING | 2 | |
| 5S4556 | 5 INSERT | 1 | |
| 5S4549 | 6 DEFLECTOR | 1 | |
| 5S4546 | 7 RING | 1 | |
| 5S4548 | 8 "O" RING | 1 | |
| 8S9223 | 9 BEARING | 1 | |
| 5S4554 | 10 "O" RING | 1 | |
| 5S4547 | 11 SLEEVE | 1 | |
| 5S4550 | 12 RING | 2 | |
| 4M6983 | 13 RING | 4 | |
| 5S4557 | 14 BEARING | 2 | |
| 5S4551 | 15 SLEEVE | 1 | |
| 4N9556 | 16 SHROUD | 1 | |
| 4M6990 | 17 RING | 1 | |
| 8S4989 | 18 WHEEL ASSEM. | 1 | |
| 4N7595 | 19 RING | 1 | |
| 4N9540 | 20 HOUSING ASSEM. | 1 | |
| 5S5199 | PIN | 2 | |
| 9S1180 | 21 NAMEPLATE | 1 | |
| 8H3710 | SCREW | 2 | |
| 5S4558 | 23 "V"-CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 7S7698 | 25 COVER (compressor) | 1 | |
| 5S4517 | 26 "V"-CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 8S9226 | 27 HOUSING (turbine) | 1 | |
| 5S4545 | 28 NAMEPLATE | 1 |
