System And Components

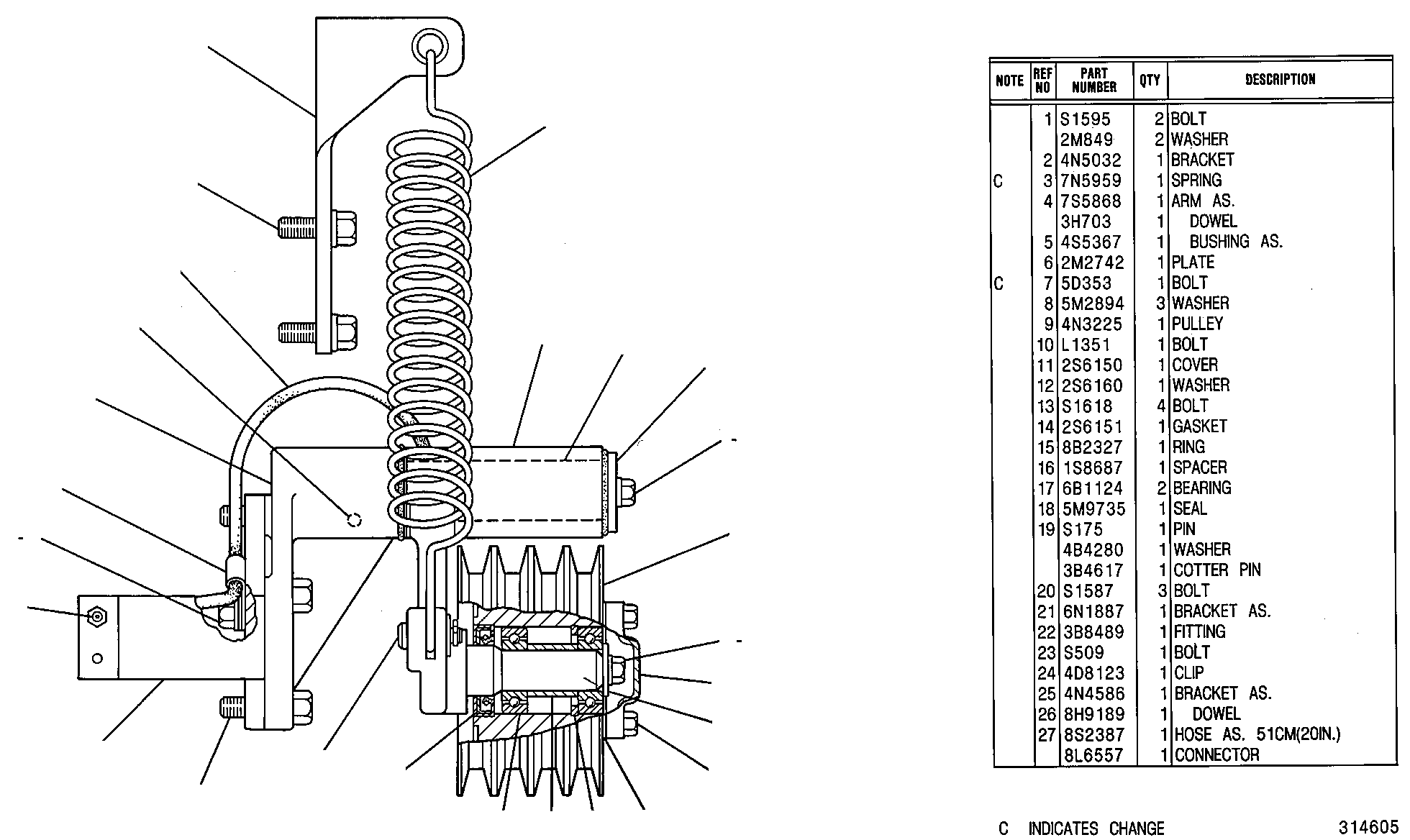

4N5034 BELT TIGHTENER GROUP
Group No: 4N5034
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S1595 | 1 BOLT | 2 | |
| 2M0849 | WASHER | 2 | |
| 4N5032 | 2 BRACKET | 1 | |
| 7N5959 | 3 SPRING | 1 | |
| 7S5868 | 4 ARM AS-TIGHTENER | 1 | |
| 3H0703 | DOWEL | 1 | |
| 4S5367 | 5 BUSHING AS | 1 | |
| 2M2742 | 6 PLATE-RETAINER | 1 | |
| 5D0353 | 7 BOLT-SELF LOCKING | 1 | |
| 5M2894 | 8 WASHER | 3 | |
| 4N3225 | 9 PULLEY-TIGHTENER | 1 | |
| 0L1351 | 10 BOLT | 1 | |
| 2S6150 | 11 COVER-PULLEY | 1 | |
| 2S6160 | 12 WASHER-HARD | 1 | |
| 0S1618 | 13 BOLT | 4 | |
| 2S6151 | 14 GASKET | 1 | |
| 8B2327 | 15 RING-RETAINER | 1 | |
| 1S8687 | 16 SPACER | 1 | |
| 6B1124 | 17 BALL BEARING | 2 | |
| 5M9735 | 18 SEAL-LIP TYPE | 1 | |
| 0S0175 | 19 PIN-CLEVIS | 1 | |
| 4B4280 | WASHER | 1 | |
| 3B4617 | COTTER | 1 | |
| 0S1587 | 20 BOLT | 3 | |
| 6N1887 | 21 BRACKET AS | 1 | |
| 3B8489 | 22 FITTING-GREASE | 1 | |
| 0S0509 | 23 BOLT | 1 | |
| 4D8123 | 24 CLIP | 1 | |
| 4N4586 | 25 BRACKET AS | 1 | |
| 8H9189 | 26 DOWEL | 1 | |
| 8S2387 | 27 HOSE AS-FLEXIBLE 51CM(20IN.) | 1 | |
| 8L6557 | CONNECTOR | 1 |
