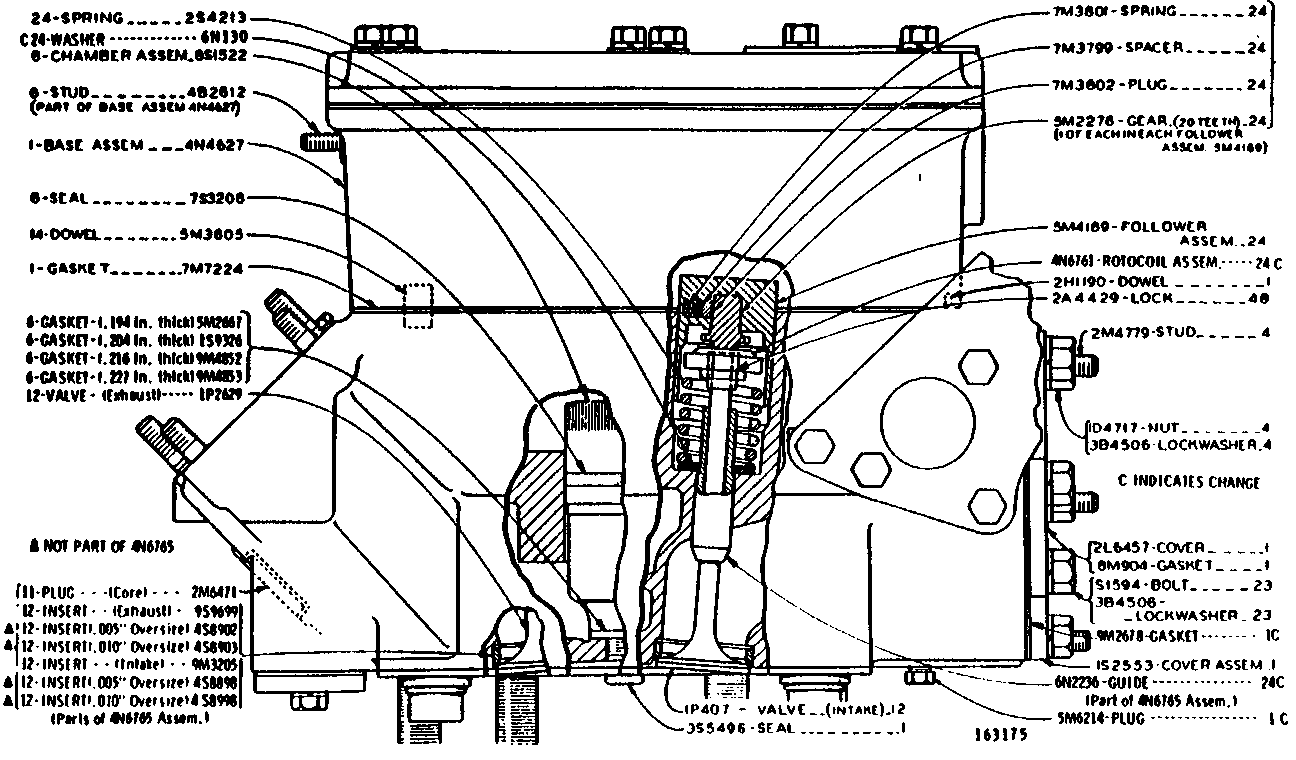

9S732 CYLINDER HEAD AND VALVE MECHANISM GROUP--End View--Part 2 of 2Serial No. 36H1241-Up and Engine Serial No. 52K1-Up

Group No: 9S732
Part NumberPart NameQty
2S4213SPRING24
6N0130WASHER24
8S1522CHAMBER ASSEM.6
4B2612STUD6
4N4627BASE ASSEM.1
7S3206SEAL6
5M3605DOWEL14
7M7224GASKET1
5M2667GASKET (.194 in. thick)6
1S9326GASKET (.204 in. thick)6
9M4852GASKET (.216 in. thick)6
9M4853GASKET (.227 in. thick)6
1P2629VALVE (Exhaust)12
2M6471PLUG (Core)11
9S9699INSERT (Exhaust)12
4S8902INSERT (.005" Oversize)12
4S8903INSERT (.010" Oversize)12
9M3205INSERT (Intake)12
4S8898INSERT (.005" Oversize)12
4S8998INSERT (.010" Oversize)12
1P0407VALVE (INTAKE)12
3S5496SEAL1
7M3801SPRING24
7M3799SPACER24
7M3802PLUG24
5M2276GEAR (20 TEETH)24
5M4169FOLLOWER ASSEM.24
4N6761ROTOCOIL ASSEM.24
2H1190DOWEL1
2A4429LOCK48
2M4779STUD4
1D4717NUT4
3B4506LOCKWASHER4
2L6457COVER1
8M0904GASKET1
0S1594BOLT23
3B4506LOCKWASHER23
9M2678GASKET1
1S2553COVER ASSEM.1
6N2236GUIDE24
5M6214PLUG1
