System And Components

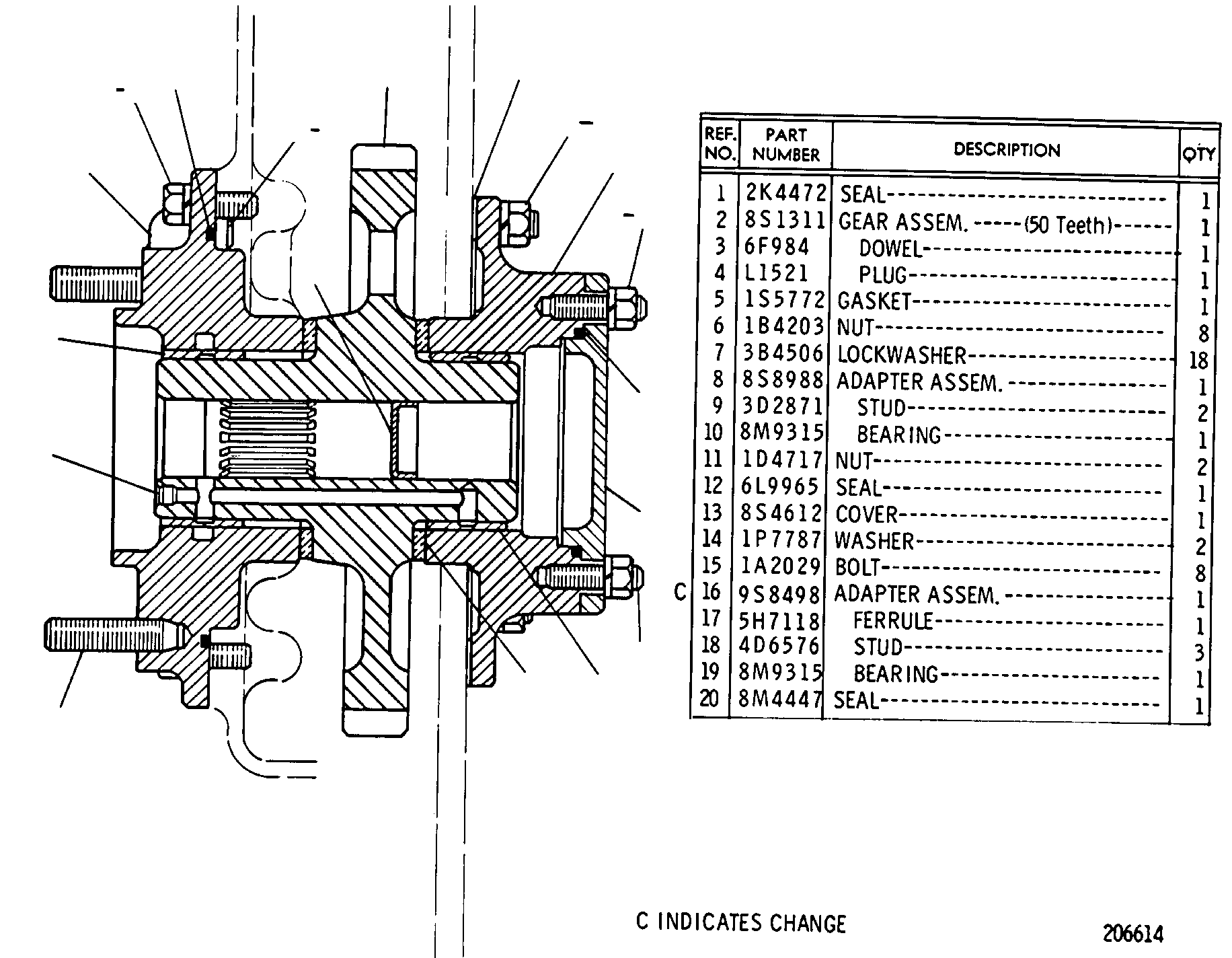

2S4244 AIR COMPRESSOR DRIVE GROUPSerial No. 65K985-Up, 67K605-Up and Engine Serial No. 73X1 to 73X1338 inclusive
Group No: 2S4244
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2K4472 | 1 SEAL | 1 | |
| 8S1311 | 2 GEAR ASSEM. (50 Teeth) | 1 | |
| 6F0984 | 3 DOWEL | 1 | |
| 0L1521 | 4 PLUG | 1 | |
| 1S5772 | 5 GASKET | 1 | |
| 1B4203 | 6 NUT | 8 | |
| 3B4506 | 7 LOCKWASHER | 18 | |
| 8S8988 | 8 ADAPTER ASSEM. | 1 | |
| 3D2871 | 9 STUD | 2 | |
| 8M9315 | 10 BEARING | 1 | |
| 1D4717 | 11 NUT | 2 | |
| 6L9965 | 12 SEAL | 1 | |
| 8S4612 | 13 COVER | 1 | |
| 1P7787 | 14 WASHER | 2 | |
| 1A2029 | 15 BOLT | 8 | |
| 9S8498 | 16 ADAPTER ASSEM. | 1 | |
| 5H7118 | 17 FERRULE | 1 | |
| 4D6576 | 18 STUD | 3 | |
| 8M9315 | 19 BEARING | 1 | |
| 8M4447 | 20 SEAL | 1 |
