System And Components

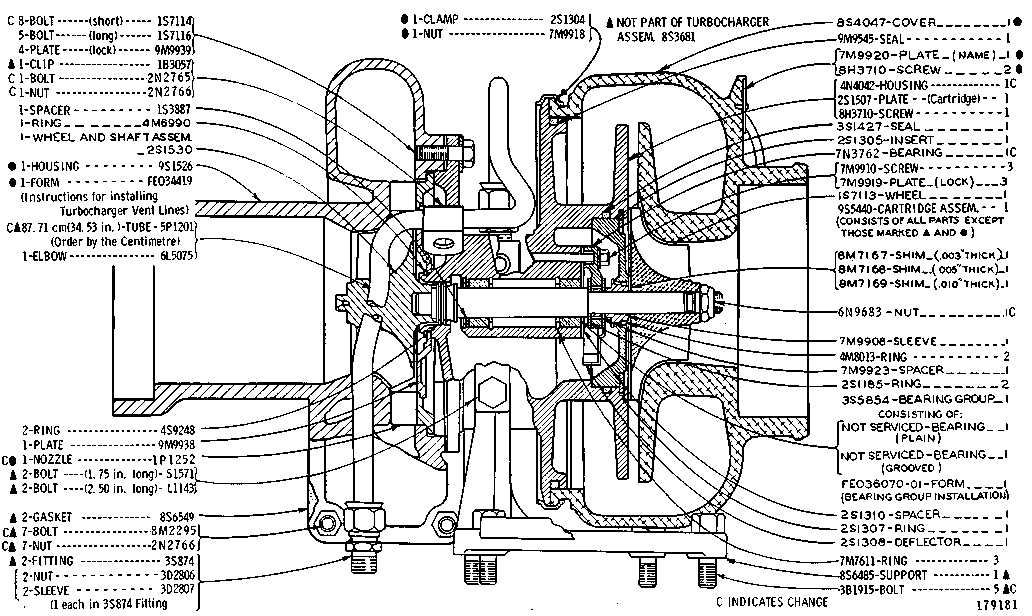

8S3681 TURBOCHARGER ASSEMBLY (2S3699 N/S)Serial No. 65K985-Up, 67K605-Up and Engine Serial No. 73X1 to 73X1339 inclusive
Group No: 8S3681
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1S7114 | BOLT (short) | 8 | |
| 1S7116 | BOLT (long) | 5 | |
| 9M9939 | PLATE (lock) | 4 | |
| 1B3057 | CLIP | 1 | |
| 2N2765 | BOLT | 1 | |
| 2N2766 | NUT | 1 | |
| 1S3887 | SPACER | 1 | |
| 4M6990 | RING | 1 | |
| 2S1530 | WHEEL AND SHAFT ASSEM. | 1 | |
| 9S1526 | HOUSING | 1 | |
| 5P1201 | 87.71 cm (34.53 in.) TUBE | NULL | |
| 6L5075 | ELBOW | 1 | |
| 4S9248 | RING | 2 | |
| 9M9938 | PLATE | 1 | |
| 1P1252 | NOZZLE | 1 | |
| 0S1571 | BOLT (1.75 in. long) | 2 | |
| 0L1143 | BOLT (2.50 in. long) | 2 | |
| 8S6549 | GASKET | 2 | |
| 8M2295 | BOLT | 7 | |
| 2N2766 | NUT | 7 | |
| 3S0874 | FITTING | 2 | |
| 3D2806 | NUT | 2 | |
| 3D2807 | SLEEVE | 2 | |
| 2S1304 | CLAMP | 1 | |
| 7M9918 | NUT | 1 | |
| 8S4047 | COVER | 1 | |
| 9M9545 | SEAL | 1 | |
| 7M9920 | PLATE (NAME) | 1 | |
| 8H3710 | SCREW | 2 | |
| 4N4042 | HOUSING | 1 | |
| 2S1507 | PLATE (Cartridge) | 1 | |
| 8H3710 | SCREW | 1 | |
| 3S1427 | SEAL | 1 | |
| 2S1305 | INSERT | 1 | |
| 7N3762 | BEARING | 1 | |
| 7M9910 | SCREW | 3 | |
| 7M9919 | PLATE (LOCK) | 3 | |
| 1S7113 | WHEEL | 1 | |
| 9S5440 | CARTRIDGE ASSEM. | 1 | |
| 8M7167 | SHIM (.003" THICK) | 1 | |
| 8M7168 | SHIM (.003" THICK) | 1 | |
| 8M7169 | SHIM (.010" THICK) | 1 | |
| 6N9683 | NUT | 1 | |
| 7M9908 | SLEEVE | 1 | |
| 4M8013 | RING | 2 | |
| 7M9923 | SPACER | 1 | |
| 2S1185 | RING | 2 | |
| 3S5854 | BEARING GROUP | 1 | |
| NOTSERVICED | BEARING | 1 | |
| NOTSERVICED | BEARING | 1 | |
| 2S1310 | SPACER | 1 | |
| 2S1307 | RING | 1 | |
| 2S1308 | DEFLECTOR | 1 | |
| 7M7611 | RING | 3 | |
| 8S6485 | SUPPORT | 1 | |
| 3B1915 | BOLT | 5 |
