System And Components

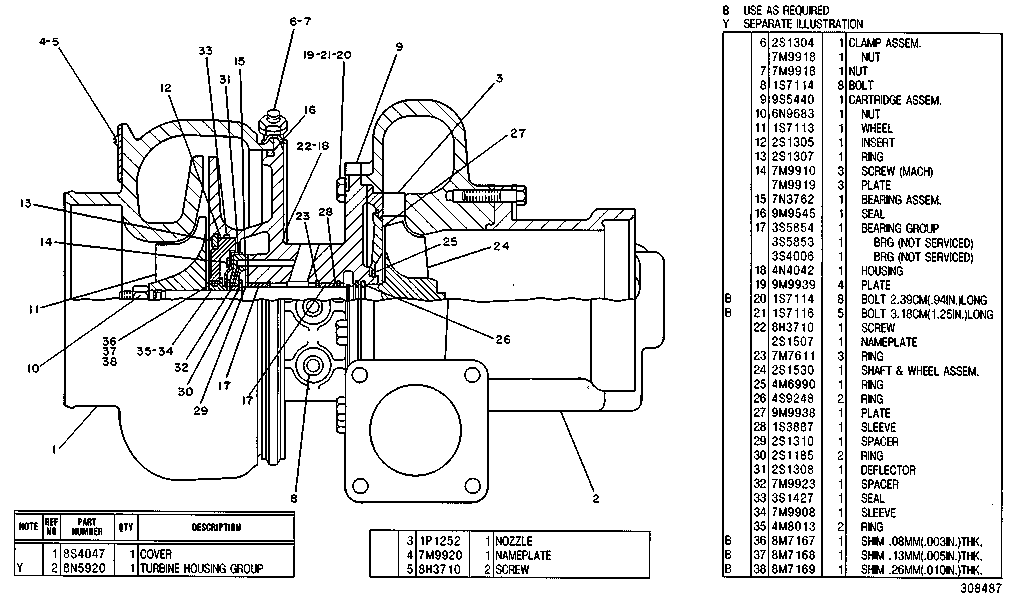

8N5918 TURBOCHARGER GROUPEngine Serial No. 73X1340-Up. Part of 2S3699 Turbocharger Group shown on Page 61A
Group No: 8N5918
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8S4047 | 1 COVER | 1 | |
| 8N5920 | 2 TURBINE HOUSING GROUP | 1 | |
| 1P1252 | 3 NOZZLE | 1 | |
| 7M9920 | 4 NAMEPLATE | 1 | |
| 8H3710 | 5 SCREW | 2 | |
| 2S1304 | 6 CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 7M9918 | 7 NUT | 1 | |
| 1S7114 | 8 BOLT | 8 | |
| 9S5440 | 9 CARTRIDGE ASSEM. | 1 | |
| 6N9683 | 10 NUT | 1 | |
| 1S7113 | 11 WHEEL | 1 | |
| 2S1305 | 12 INSERT | 1 | |
| 2S1307 | 13 RING | 1 | |
| 7M9910 | 14 SCREW (MACH) | 3 | |
| 7M9919 | PLATE | 3 | |
| 7N3762 | 15 BEARING ASSEM. | 1 | |
| 9M9545 | 16 SEAL | 1 | |
| 3S5854 | 17 BEARING GROUP | 1 | |
| 3S5853 | BRG (NOT SERVICED) | 1 | |
| 3S4006 | BRG (NOT SERVICED) | 1 | |
| 4N4042 | 18 HOUSING | 1 | |
| 9M9939 | 19 PLATE | 4 | |
| 1S7114 | 20 BOLT 2.39CM(.94IN.)LONG | 8 | |
| 1S7116 | 21 BOLT 3.18CM(1.25IN.)LONG | 5 | |
| 8H3710 | 22 SCREW | 1 | |
| 2S1507 | NAMEPLATE | 1 | |
| 7M7611 | 23 RING | 3 | |
| 2S1530 | 24 SHAFT & WHEEL ASSEM. | 1 | |
| 4M6990 | 25 RING | 1 | |
| 4S9248 | 26 RING | 2 | |
| 9M9938 | 27 PLATE | 1 | |
| 1S3887 | 28 SLEEVE | 1 | |
| 2S1310 | 29 SPACER | 1 | |
| 2S1185 | 30 RING | 2 | |
| 2S1308 | 31 DEFLECTOR | 1 | |
| 7M9923 | 32 SPACER | 1 | |
| 3S1427 | 33 SEAL | 1 | |
| 7M9908 | 34 SLEEVE | 1 | |
| 4M8013 | 35 RING | 2 | |
| 8M7167 | 36 SHIM .08MM(.003IN.)THK. | 1 | |
| 8M7168 | 37 SHIM .13MM(.005IN.)THK. | 1 | |
| 8M7169 | 38 SHIM .26MM(.010IN.)THK. | 1 |
