System And Components

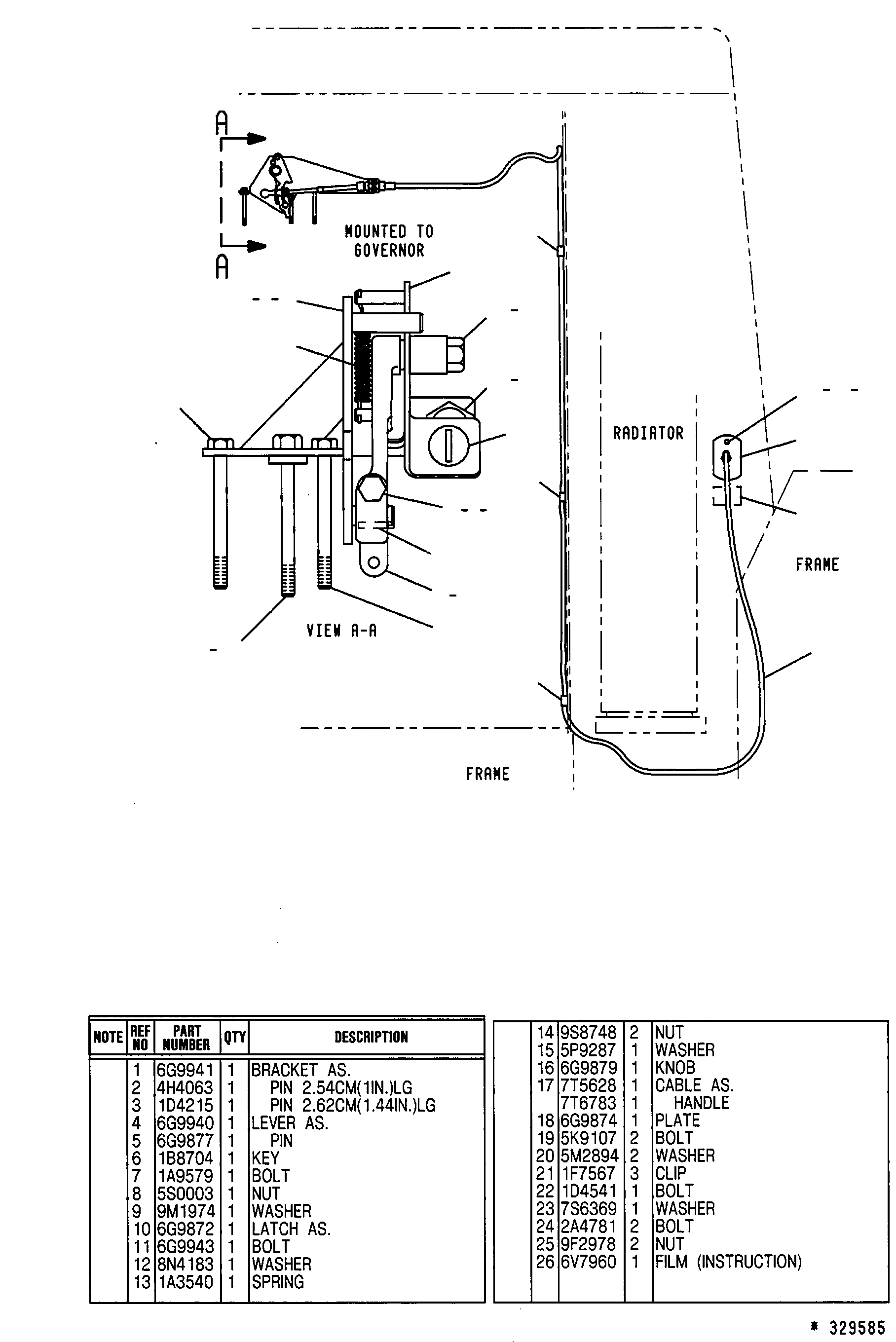

5T7166 MECHANICAL SHUT-OFF GROUP--FIELD INSTALLATION
Group No: 5T7166
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6G9941 | 1 BRACKET AS | 1 | |
| 4H4063 | 2 PIN (1IN.)LG | 1 | |
| 1D4215 | 3 PIN (1.44IN.)LG | 1 | |
| 6G9940 | 4 LEVER AS | 1 | |
| 6G9877 | 5 PIN | 1 | |
| 1B8704 | 6 KEY-WOODRUFF | 1 | |
| 1A9579 | 7 BOLT | 1 | |
| 5S0003 | 8 NUT-FULL | 1 | |
| 9M1974 | 9 WASHER | 1 | |
| 6G9872 | 10 LATCH AS | 1 | |
| 6G9943 | 11 BOLT-SHOULDER | 1 | |
| 8N4183 | 12 WASHER | 1 | |
| 1A3540 | 13 SPRING | 1 | |
| 9S8748 | 14 NUT-FULL | 2 | |
| 5P9287 | 15 WASHER-HARD | 1 | |
| 6G9879 | 16 KNOB | 1 | |
| 7T5628 | 17 CABLE AS | 1 | |
| 7T6783 | HANDLE | 1 | |
| 6G9874 | 18 PLATE | 1 | |
| 5K9107 | 19 BOLT-SELF LOCKING | 2 | |
| 5M2894 | 20 WASHER | 2 | |
| 1F7567 | 21 CLIP | 3 | |
| 1D4541 | 22 BOLT | 1 | |
| 7S6369 | 23 WASHER | 1 | |
| 2A4781 | 24 BOLT | 2 | |
| 9F2978 | 25 NUT-WELD | 2 | |
| 6V7960 | 26 FILM-INSTRUCTION (INSTRUCTION) | 1 |
