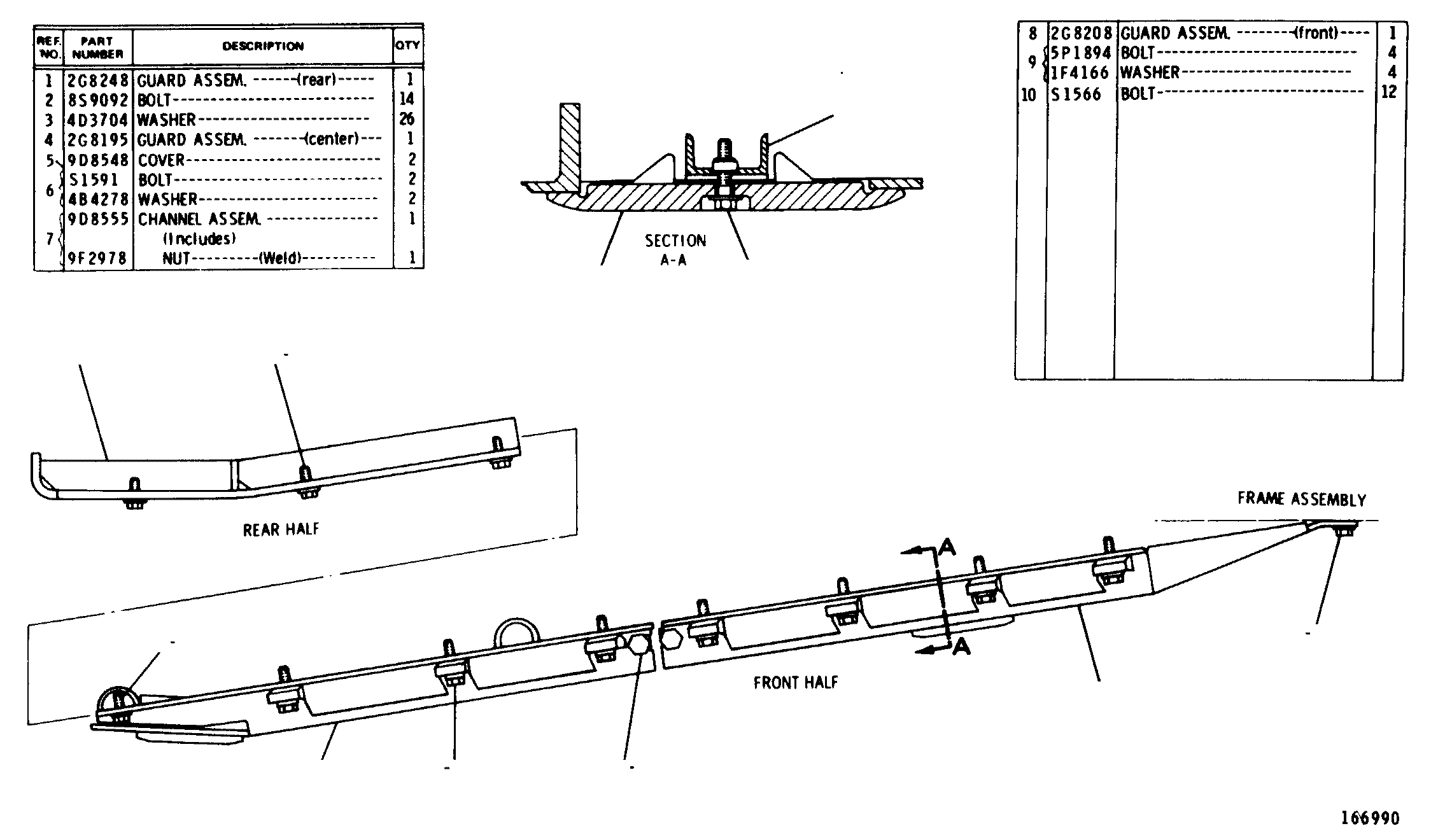

2G8235 CRANKCASE GUARD GROUPSerial No. 24W1520 to 1526, 1528 to 1530, 1533, 1535, 1536, 1538, 1540 to 1544, 1547 to 1552, 1555, 1556, 1558,

Group No: 2G8235
Part NumberPart NameQty
2G82481 GUARD ASSEM. (rear)1
8S90922 BOLT14
4D37043 WASHER26
2G81954 GUARD ASSEM. (center)1
9D85485 COVER2
0S15916 BOLT2
4B4278WASHER2
9D85557 CHANNEL ASSEM.1
9F2978NUT (Weld)1
2G82088 GUARD ASSEM. (front)1
5P18949 BOLT4
1F4166WASHER4
0S156610 BOLT12
