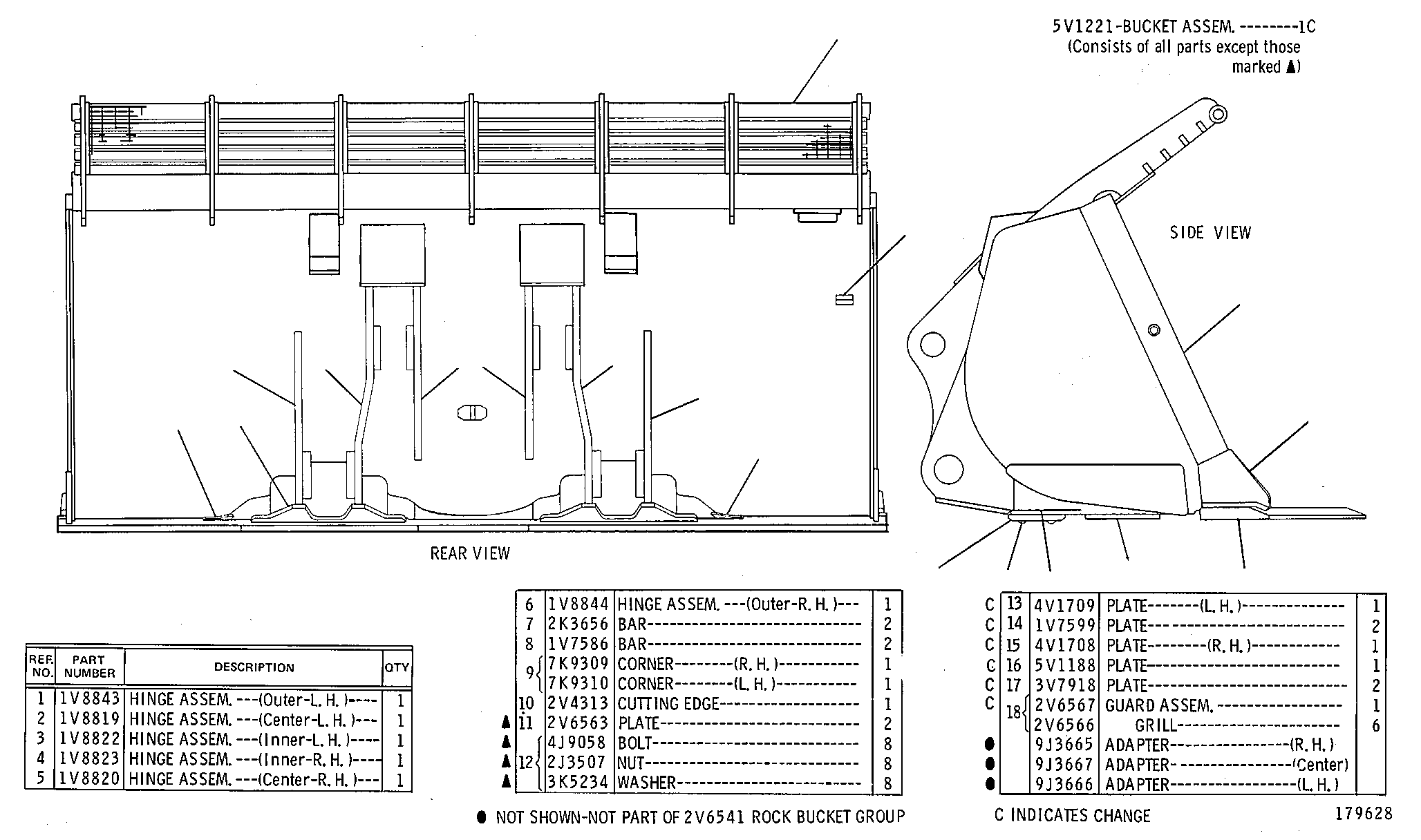

2V6541 ROCK BUCKET GROUP--Spade Nose--Without Teeth--5.35 Cubic Meter (7 Cubic Yard)--3645 mm (143.5 in.) Wide--Type 2AN ATTACHMENT

Group No: 2V6541
Part NumberPart NameQty
1V88431 HINGE ASSEM. (Outer-L.H.)1
1V88192 HINGE ASSEM. (Center-L.H.)1
1V88223 HINGE ASSEM. (Inner-L.H.)1
1V88234 HINGE ASSEM. (Inner-R.H.)1
1V88205 HINGE ASSEM. (Center-R.H.)1
1V88446 HINGE ASSEM. (Outer-R.H.)1
2K36567 BAR2
1V75868 BAR2
7K93099 CORNER (R.H.)1
7K9310CORNER (L.H.)1
2V431310 CUTTING EDGE1
2V656311 PLATE2
4J905812 BOLT8
2J3507NUT8
3K5234WASHER8
4V170913 PLATE (L.H.)1
1V759914 PLATE2
4V170815 PLATE (R.H.)1
5V118816 PLATE1
3V791817 PLATE2
2V656718 GUARD ASSEM.1
2V6566GRILL6
9J3665ADAPTER (R.H.)NULL
9J3667ADAPTER (Center)NULL
9J3666ADAPTER (L.H.)NULL
5V1221BUCKET ASSEM.1
