System And Components

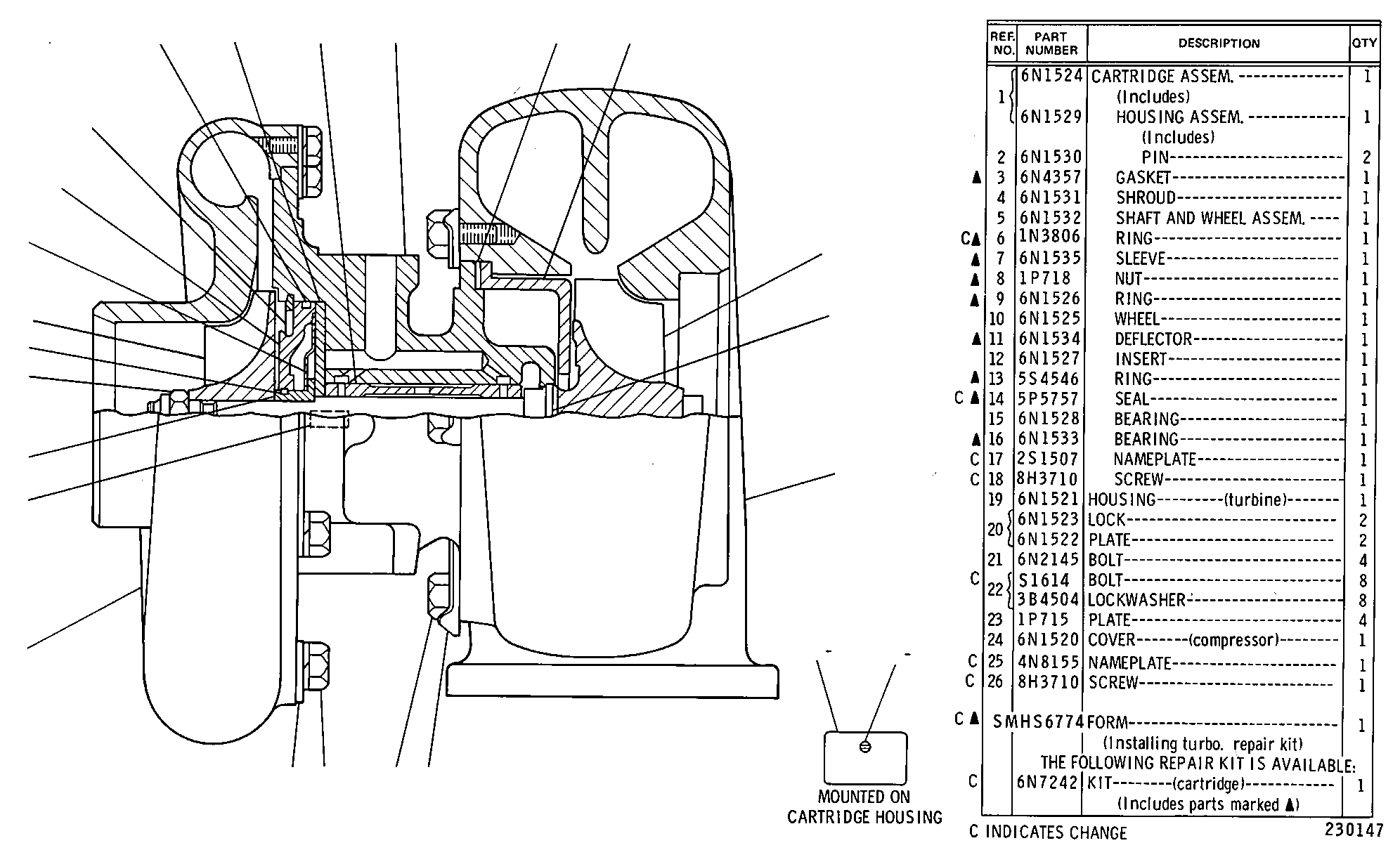

4N8969 TURBOCHARGER GROUPPart of 4N8970 Turbocharger Group shown on Page 41
Group No: 4N8969
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N1524 | 1 CARTRIDGE ASSEM. | 1 | |
| 6N1529 | HOUSING ASSEM. | 1 | |
| 6N1530 | 2 PIN | 2 | |
| 6N4357 | 3 GASKET | 1 | |
| 6N1531 | 4 SHROUD | 1 | |
| 6N1532 | 5 SHAFT AND WHEEL ASSEM. | 1 | |
| 1N3806 | 6 RING | 1 | |
| 6N1535 | 7 SLEEVE | 1 | |
| 1P0718 | 8 NUT | 1 | |
| 6N1526 | 9 RING | 1 | |
| 6N1525 | 10 WHEEL | 1 | |
| 6N1534 | 11 DEFLECTOR | 1 | |
| 6N1527 | 12 INSERT | 1 | |
| 5S4546 | 13 RING | 1 | |
| 5P5757 | 14 SEAL | 1 | |
| 6N1528 | 15 BEARING | 1 | |
| 6N1533 | 16 BEARING | 1 | |
| 2S1507 | 17 NAMEPLATE | 1 | |
| 8H3710 | 18 SCREW | 1 | |
| 6N1521 | 19 HOUSING (turbine) | 1 | |
| 6N1523 | 20 LOCK | 2 | |
| 6N1522 | PLATE | 2 | |
| 6N2145 | 21 BOLT | 4 | |
| 0S1614 | 22 BOLT | 8 | |
| 3B4504 | LOCKWASHER | 8 | |
| 1P0715 | 23 PLATE | 4 | |
| 6N1520 | 24 COVER (compressor) | 1 | |
| 4N8155 | 25 NAMEPLATE | 1 | |
| 8H3710 | 26 SCREW | 1 | |
| 6N7242 | KIT (cartridge) | 1 |
