System And Components

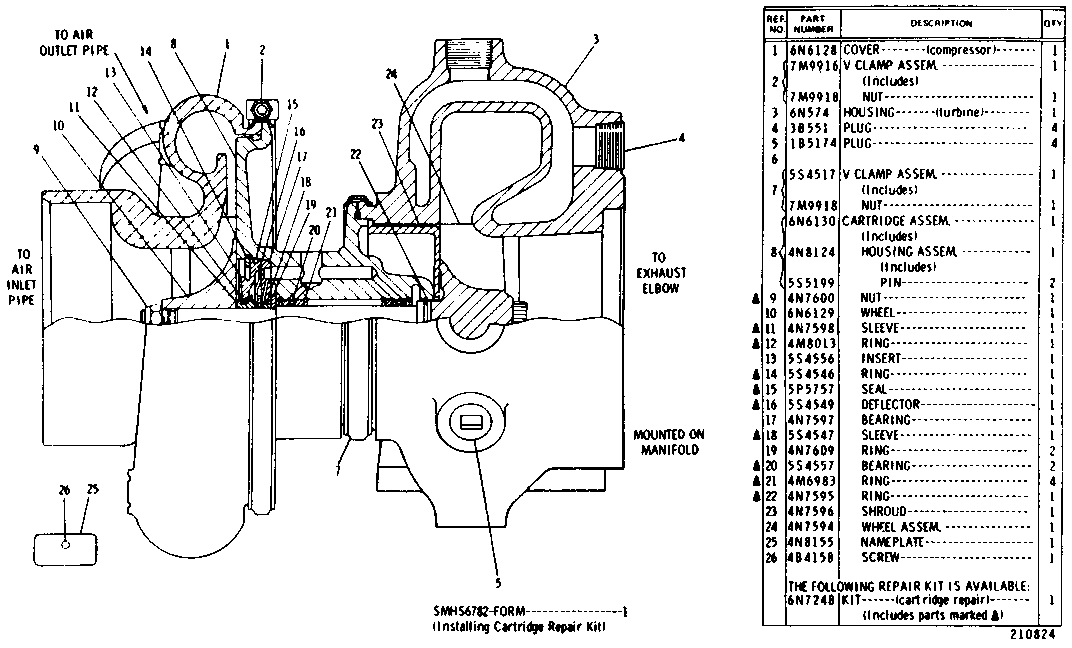

6N6132 TURBOCHARGER GROUPPart of 6N6312 Turbocharger Group shown on Page 59 & 5N2893 Marine Society Spare Parts
Group No: 6N6132
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N6128 | 1 COVER-COMPRESSOR | 1 | |
| 7M9916 | 2 CLAMP AS | 1 | |
| 7M9918 | 3 NUT-SELF LOCKING | 1 | |
| 6N0574 | 4 HOUSING-TURBINE | 1 | |
| 3B0551 | 5 PLUG-PIPE | 4 | |
| 1B5174 | 6 PLUG-PIPE | 4 | |
| 5S4517 | 7 CLAMP AS | 1 | |
| 7M9918 | NUT-SELF LOCKING | 1 | |
| 6N6130 | 8 CARTRIDGE AS | 1 | |
| 4N8124 | HOUSING AS-BEARING | 1 | |
| 5S5199 | PIN-GROOVE | 2 | |
| 4N7600 | 9 NUT-COMPRESSOR | 1 | |
| 6N6129 | 10 WHEEL-COMPRESSOR | 1 | |
| 4N7598 | 11 SLEEVE-FLINGER | 1 | |
| 4M8013 | 12 RING-PISTON | 1 | |
| 5S4556 | 13 INSERT | 1 | |
| 5S4546 | 14 RING-RETAINING | 1 | |
| 5P5757 | 15 SEAL-O-RING | 1 | |
| 5S4549 | 16 DEFLECTOR-OIL | 1 | |
| 4N7597 | 17 BEARING AS | 1 | |
| 5S4547 | 18 SLEEVE-SPACER | 1 | |
| 4N7609 | 19 RING-THRUST | 2 | |
| 5S4557 | 20 BEARING | 2 | |
| 4M6983 | 21 RING-RETAINING | 4 | |
| 4N7595 | 22 RING | 1 | |
| 4N7596 | 23 BACKPLATE-TURBINE | 1 | |
| 4N7594 | 24 WHEEL AS | 1 | |
| 4N8155 | 25 NAMEPLATE-TURBO | 1 | |
| 4B4158 | 26 SCREW | 1 | |
| 6N7248 | KIT-CARTRIDGE (INCL PARTS MARKED J) | 1 |
