System And Components

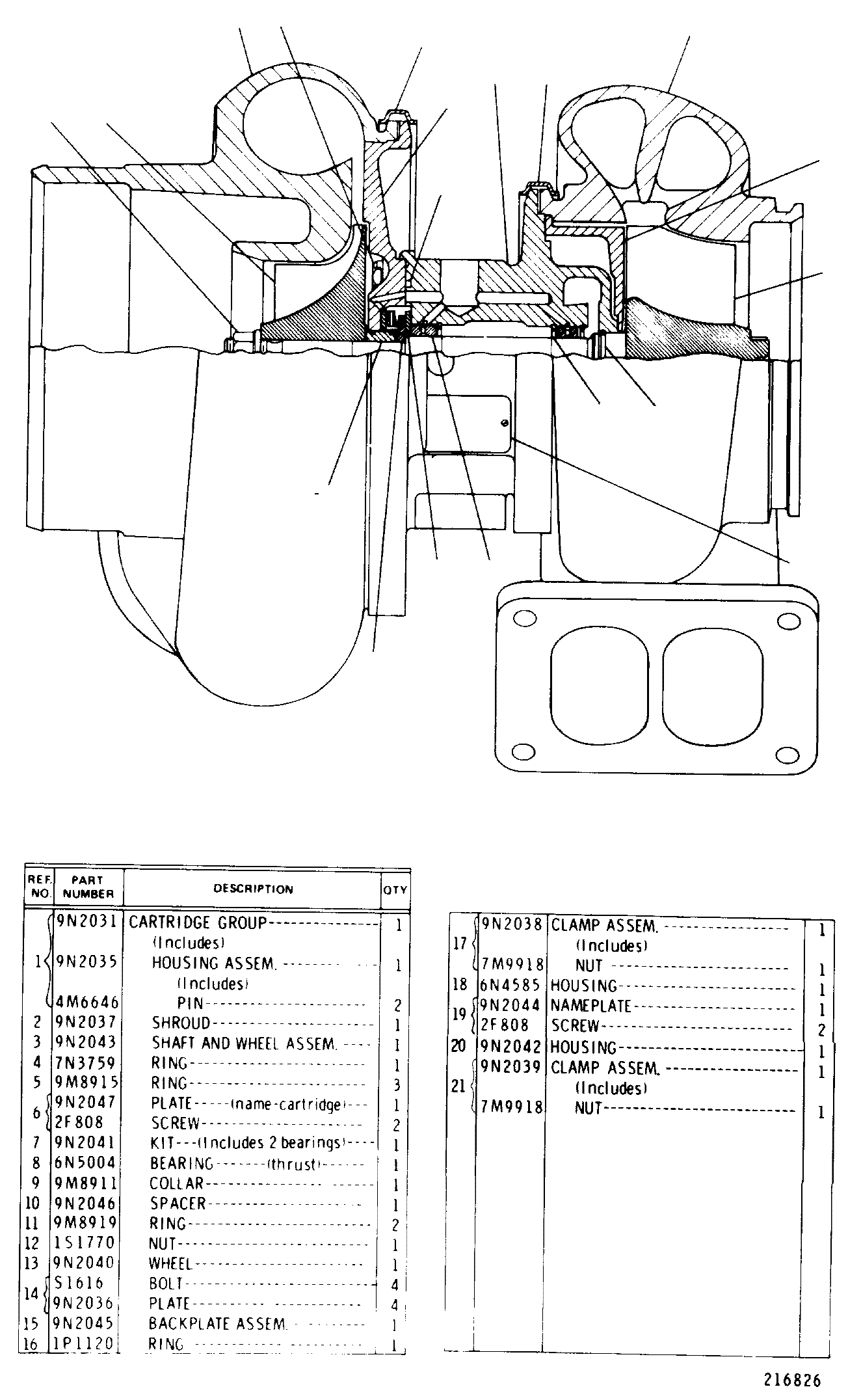

7N7098 BASIC TURBOCHARGER GROUP--Replaced by 6N2506 shown on Page 167Part of 7N7106 Turbocharger Group shown on Page 171A
Group No: 7N7098
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9N2031 | 1 CARTRIDGE GROUP | 1 | |
| 9N2035 | HOUSING ASSEM. | 1 | |
| 4M6646 | PIN | 2 | |
| 9N2037 | 2 SHROUD | 1 | |
| 9N2043 | 3 SHAFT AND WHEEL ASSEM. | 1 | |
| 7N3759 | 4 RING | 1 | |
| 9M8915 | 5 RING | 3 | |
| 9N2047 | 6 PLATE (name-cartridge) | 1 | |
| 2F0808 | SCREW | 2 | |
| 9N2041 | 7 KIT (Includes 2 bearings) | 1 | |
| 6N5004 | 8 BEARING (thrust) | 1 | |
| 9M8911 | 9 COLLAR | 1 | |
| 9N2046 | 10 SPACER | 1 | |
| 9M8919 | 11 RING | 2 | |
| 1S1770 | 12 NUT | 1 | |
| 9N2040 | 13 WHEEL | 1 | |
| 0S1616 | 14 BOLT | 4 | |
| 9N2036 | PLATE | 4 | |
| 9N2045 | 15 BACKPLATE ASSEM. | 1 | |
| 1P1120 | 16 RING | 1 | |
| 9N2038 | 17 CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 6N4585 | 18 HOUSING | 1 | |
| 9N2044 | 19 NAMEPLATE | 1 | |
| 2F0808 | SCREW | 2 | |
| 9N2042 | 20 HOUSING | 1 | |
| 9N2039 | 21 CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 |
