System And Components

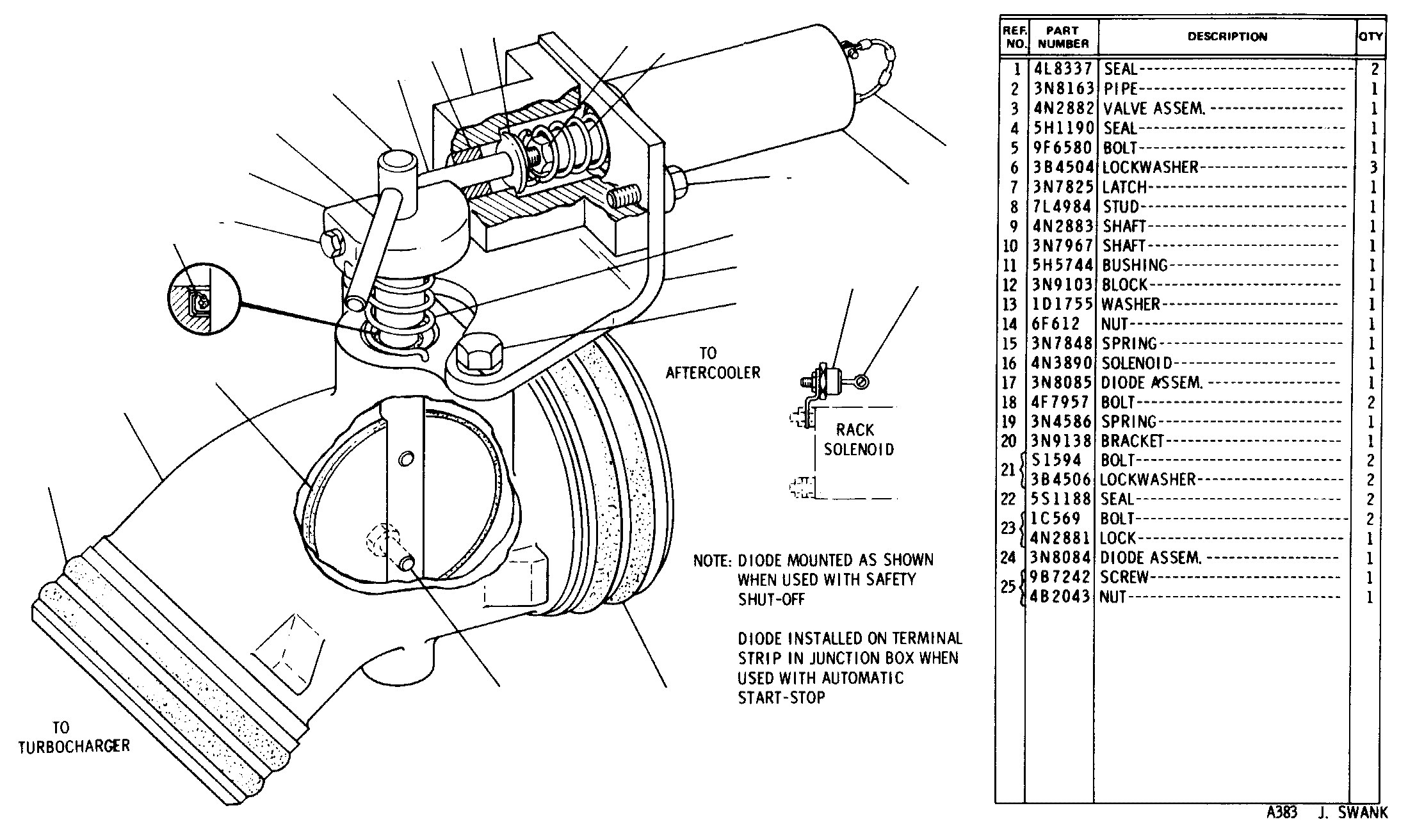

3N8164 AIR SHUT-OFF GROUP--24 Volt--Type 1Part of 3N8283 Overspeed and Air Shut-Off Group listed on Page 314
Group No: 3N8164
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4L8337 | 1 SEAL | 2 | |
| 3N8163 | 2 PIPE | 1 | |
| 4N2882 | 3 VALVE ASSEM. | 1 | |
| 5H1190 | 4 SEAL | 1 | |
| 9F6580 | 5 BOLT | 1 | |
| 3B4504 | 6 LOCKWASHER | 3 | |
| 3N7825 | 7 LATCH | 1 | |
| 7L4984 | 8 STUD | 1 | |
| 4N2883 | 9 SHAFT | 1 | |
| 3N7967 | 10 SHAFT | 1 | |
| 5H5744 | 11 BUSHING | 1 | |
| 3N9103 | 12 BLOCK | 1 | |
| 1D1755 | 13 WASHER | 1 | |
| 6F0612 | 14 NUT | 1 | |
| 3N7848 | 15 SPRING | 1 | |
| 4N3890 | 16 SOLENOID | 1 | |
| 3N8085 | 17 DIODE ASSEM. | 1 | |
| 4F7957 | 18 BOLT | 2 | |
| 3N4586 | 19 SPRING | 1 | |
| 3N9138 | 20 BRACKET | 1 | |
| 0S1594 | 21 BOLT | 2 | |
| 3B4506 | LOCKWASHER | 2 | |
| 5S1188 | 22 SEAL | 2 | |
| 1C0569 | 23 BOLT | 2 | |
| 4N2881 | LOCK | 1 | |
| 3N8084 | 24 DIODE ASSEM. | 1 | |
| 9B7242 | 25 SCREW | 1 | |
| 4B2043 | NUT | 1 |
