System And Components

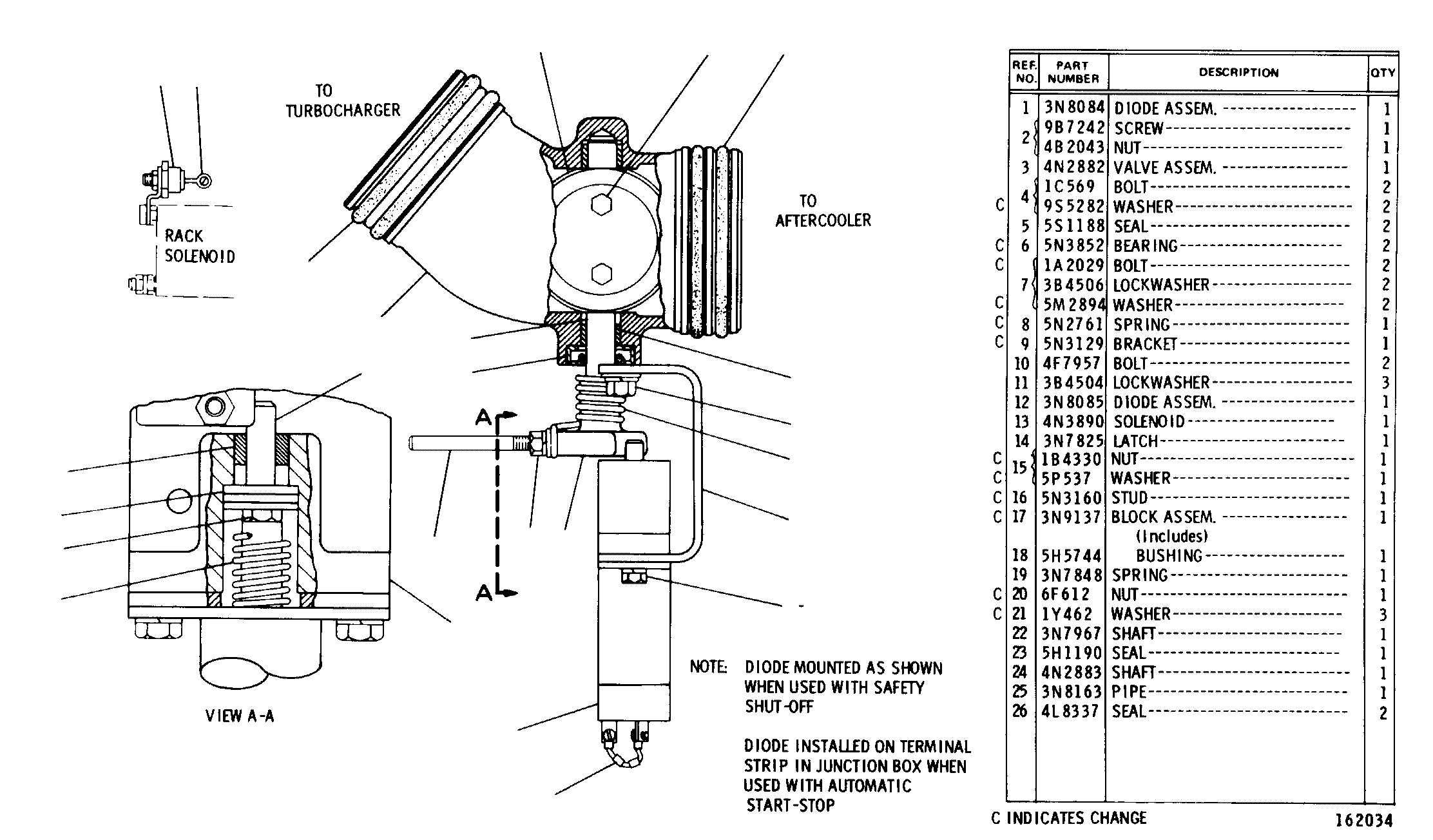

3N8164 AIR SHUT-OFF GROUP--24 Volt--Type 2Part of 3N8283 Overspeed and Air Shut-Off Group listed on Page 314
Group No: 3N8164
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3N8084 | 1 DIODE ASSEM. | 1 | |
| 9B7242 | 2 SCREW | 1 | |
| 4B2043 | NUT | 1 | |
| 4N2882 | 3 VALVE ASSEM. | 1 | |
| 1C0569 | 4 BOLT | 2 | |
| 9S5282 | WASHER | 2 | |
| 5S1188 | 5 SEAL | 2 | |
| 5N3852 | 6 BEARING | 2 | |
| 1A2029 | 7 BOLT | 2 | |
| 3B4506 | LOCKWASHER | 2 | |
| 5M2894 | WASHER | 2 | |
| 5N2761 | 8 SPRING | 1 | |
| 5N3129 | 9 BRACKET | 1 | |
| 4F7957 | 10 BOLT | 2 | |
| 3B4504 | 11 LOCKWASHER | 3 | |
| 3N8085 | 12 DIODE ASSEM. | 1 | |
| 4N3890 | 13 SOLENOID | 1 | |
| 3N7825 | 14 LATCH | 1 | |
| 1B4330 | 15 NUT | 1 | |
| 5P0537 | WASHER | 1 | |
| 5N3160 | 16 STUD | 1 | |
| 3N9137 | 17 BLOCK ASSEM. | 1 | |
| 5H5744 | 18 BUSHING | 1 | |
| 3N7848 | 19 SPRING | 1 | |
| 6F0612 | 20 NUT | 1 | |
| 1Y0462 | 21 WASHER | 3 | |
| 3N7967 | 22 SHAFT | 1 | |
| 5H1190 | 23 SEAL | 1 | |
| 4N2883 | 24 SHAFT | 1 | |
| 3N8163 | 25 PIPE | 1 | |
| 4L8337 | 26 SEAL | 2 |
