System And Components

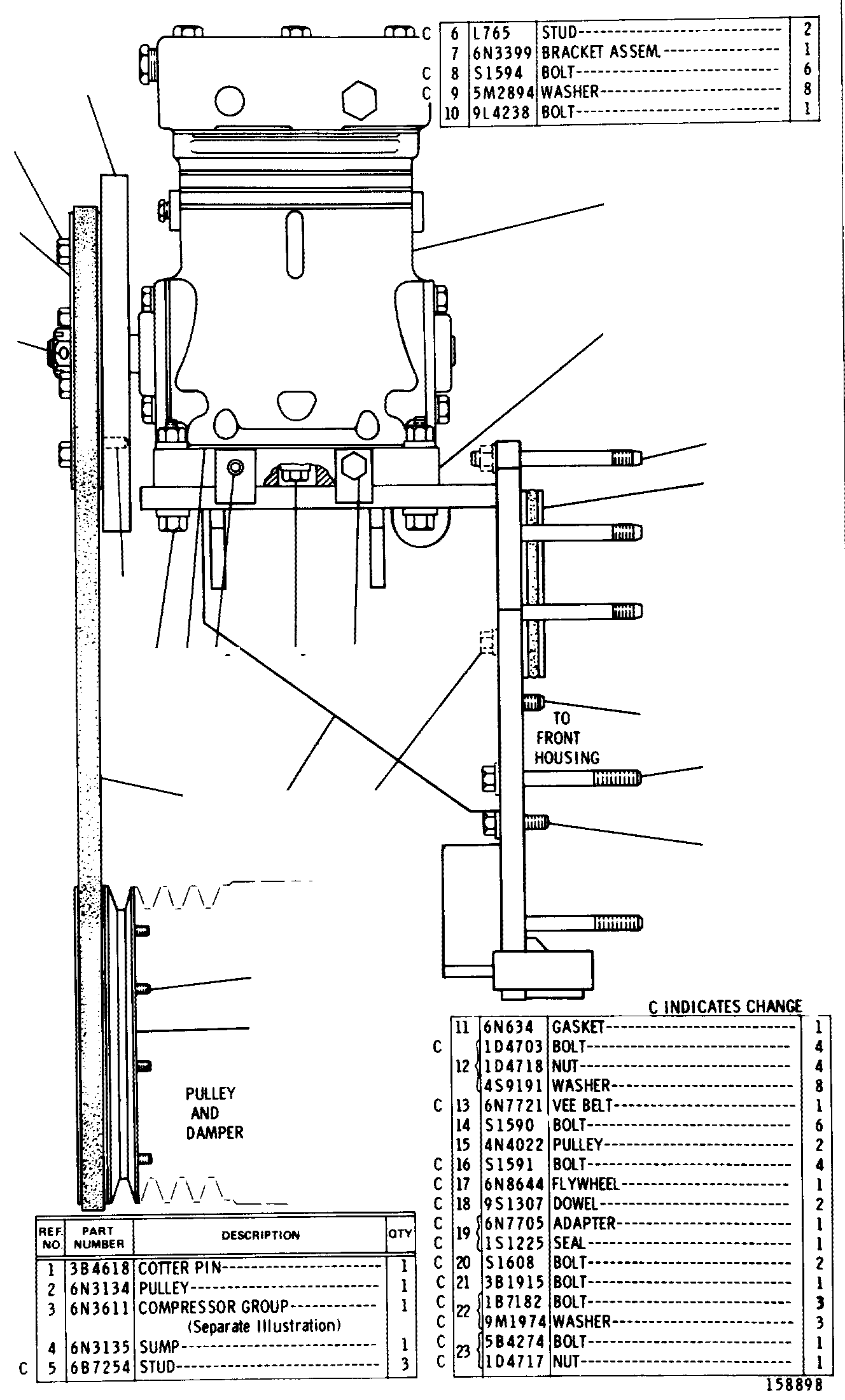

6N3325 AIR COMPRESSOR GROUP--Type 1Serial No. 67U1 to 67U1387 inclusive
Group No: 6N3325
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B4618 | 1 COTTER PIN | 1 | |
| 6N3134 | 2 PULLEY | 1 | |
| 6N3611 | 3 COMPRESSOR GROUP | 1 | |
| 6N3135 | 4 SUMP | 1 | |
| 6B7254 | 5 STUD | 3 | |
| 0L0765 | 6 STUD | 2 | |
| 6N3399 | 7 BRACKET ASSEM. | 1 | |
| 0S1594 | 8 BOLT | 6 | |
| 5M2894 | 9 WASHER | 8 | |
| 9L4238 | 10 BOLT | 1 | |
| 6N0634 | 11 GASKET | 1 | |
| 1D4703 | 12 BOLT | 4 | |
| 1D4718 | NUT | 4 | |
| 4S9191 | WASHER | 8 | |
| 6N7721 | 13 VEE BELT | 1 | |
| 0S1590 | 14 BOLT | 6 | |
| 4N4022 | 15 PULLEY | 2 | |
| 0S1591 | 16 BOLT | 4 | |
| 6N8644 | 17 FLYWHEEL | 1 | |
| 9S1307 | 18 DOWEL | 2 | |
| 6N7705 | 19 ADAPTER | 1 | |
| 1S1225 | SEAL | 1 | |
| 0S1608 | 20 BOLT | 2 | |
| 3B1915 | 21 BOLT | 1 | |
| 1B7182 | 22 BOLT | 3 | |
| 9M1974 | WASHER | 3 | |
| 5B4274 | 23 BOLT | 1 | |
| 1D4717 | NUT | 1 |
