System And Components

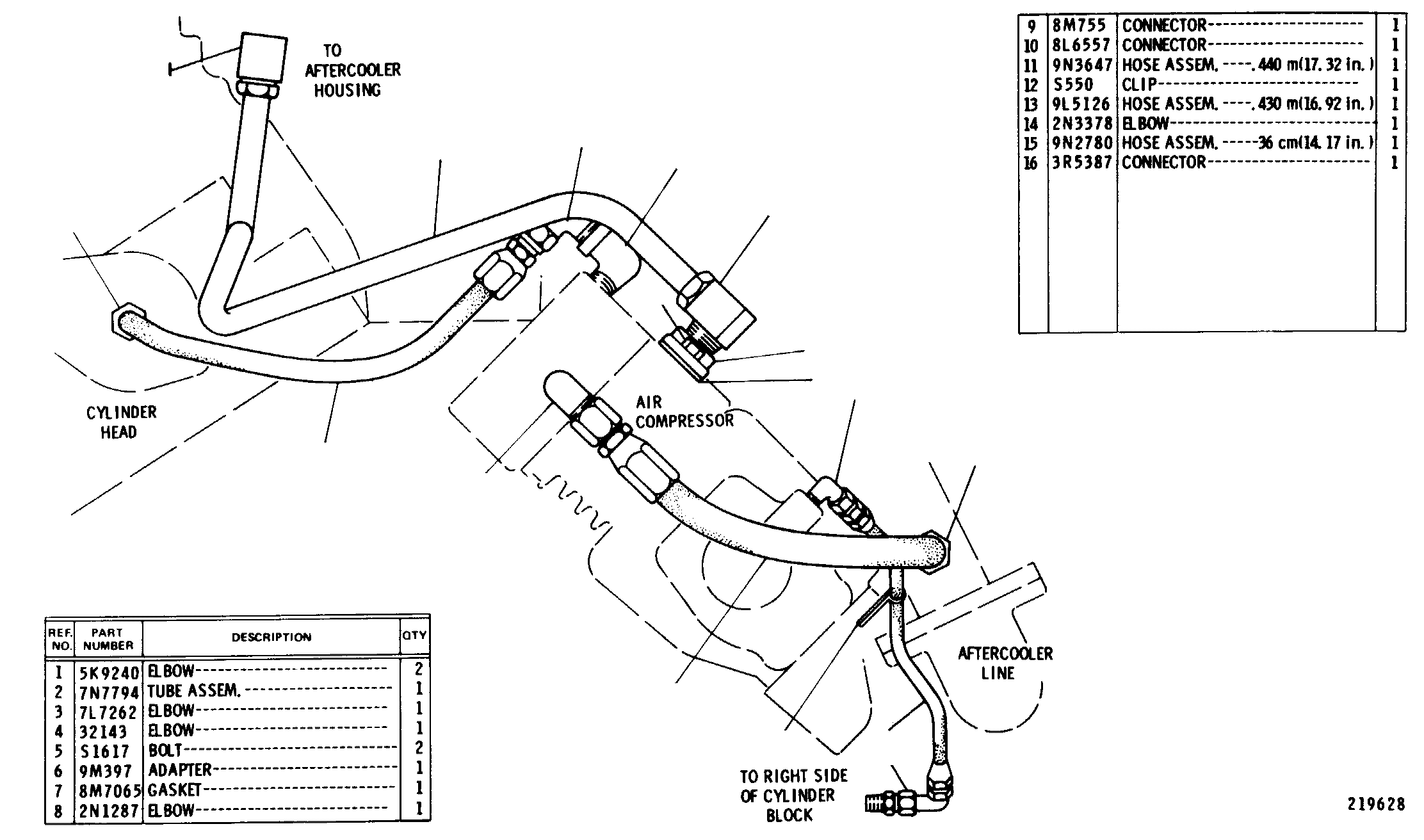

7N8230 AIR COMPRESSOR LINES GROUP--AftercooledSerial No. 67U1015-Up
Group No: 7N8230
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5K9240 | 1 ELBOW | 2 | |
| 7N7794 | 2 TUBE ASSEM. | 1 | |
| 7L7262 | 3 ELBOW | 1 | |
| 0032143 | 4 ELBOW | 1 | |
| 0S1617 | 5 BOLT | 2 | |
| 9M0397 | 6 ADAPTER | 1 | |
| 8M7065 | 7 GASKET | 1 | |
| 2N1287 | 8 ELBOW | 1 | |
| 8M0755 | 9 CONNECTOR | 1 | |
| 8L6557 | 10 CONNECTOR | 1 | |
| 9N3647 | 11 HOSE ASSEM. .440 m(17.32 in.) | 1 | |
| 0S0550 | 12 CLIP | 1 | |
| 9L5126 | 13 HOSE ASSEM. .430 m(16.92 in.) | 1 | |
| 2N3378 | 14 ELBOW | 1 | |
| 9N2780 | 15 HOSE ASSEM. 36 cm(14.17 in.) | 1 | |
| 3R5387 | 16 CONNECTOR | 1 |
