System And Components

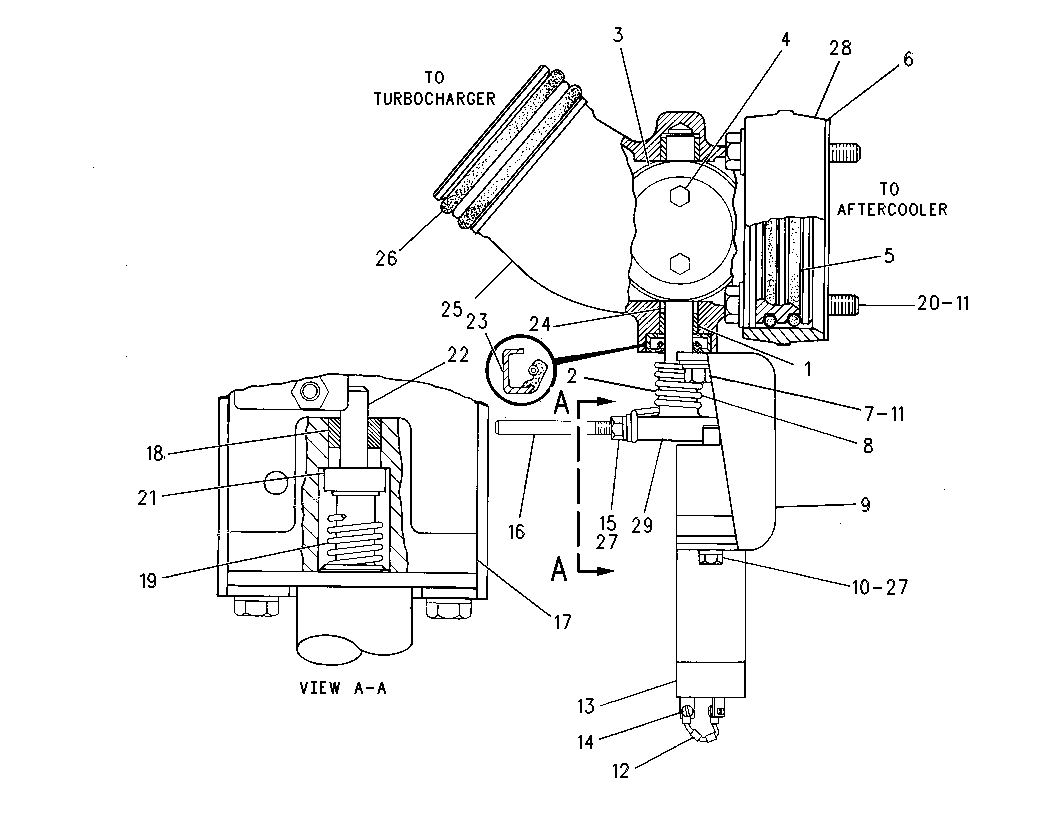

3N-8164 SHUTOFF GP-AIR24 VOLT
Group No: 3N-8164
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5N3852 | 1 BEARING | 2 | |
| 2L3605 | 2 PIN-SPRING | 1 | |
| 5N2829 | BUSHING-TERMINAL | 1 | |
| 4P8021 | 3 VALVE AS (AIR SHUTOFF) | 1 | |
| 8T5391 | 4 BOLT (5/16-18X0.5-IN) | 2 | |
| 8T4224 | WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 5S1188 | 5 SEAL-O-RING | 2 | |
| 2458342 | 6 GASKET | 1 | |
| 4L6454 | 7 BOLT (3/8-16X1-IN) | 2 | |
| 1354649 | 8 SPRING | 1 | |
| 1355348 | 9 BRACKET AS | 1 | |
| 1H3337 | 10 BOLT (1/4-20X0.875-IN) | 2 | |
| 8T4896 | 11 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 1W9070 | 12 DIODE AS | 1 | |
| 4N3890 | 13 SOLENOID AS (24-VOLT)(AIR SHUTOFF) | 1 | |
| 6V8362 | 14 SCREW-MACHINE (8-32X0.31-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8185 | 15 NUT (1/4-20-THD) | 1 | |
| 5N3160 | 16 STUD (1/4-20X2-IN) | 1 | |
| 5N5131 | 17 BLOCK AS | 1 | |
| 5H5744 | 18 BUSHING-TERMINAL | 1 | |
| 3N7848 | 19 SPRING | 1 | |
| 7X3186 | 20 BOLT (3/8-16X2.125-IN) | 4 | |
| 5N1703 | 21 SPACER (6.8X21X9.52-MM THK) | 1 | |
| 5N5129 | 22 SHAFT | 1 | |
| 5H1190 | 23 SEAL-LIP TYPE | 1 | |
| 4N2883 | 24 SHAFT-SHUTOFF | 1 | |
| 3N8163 | 25 PIPE-AIR TRANSFER | 1 | |
| 4L8337 | 26 SEAL-O-RING | 2 | |
| 8T4205 | 27 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 5N4983 | 28 ADAPTER | 1 | |
| 5N5662 | 29 LATCH | 1 |
