System And Components

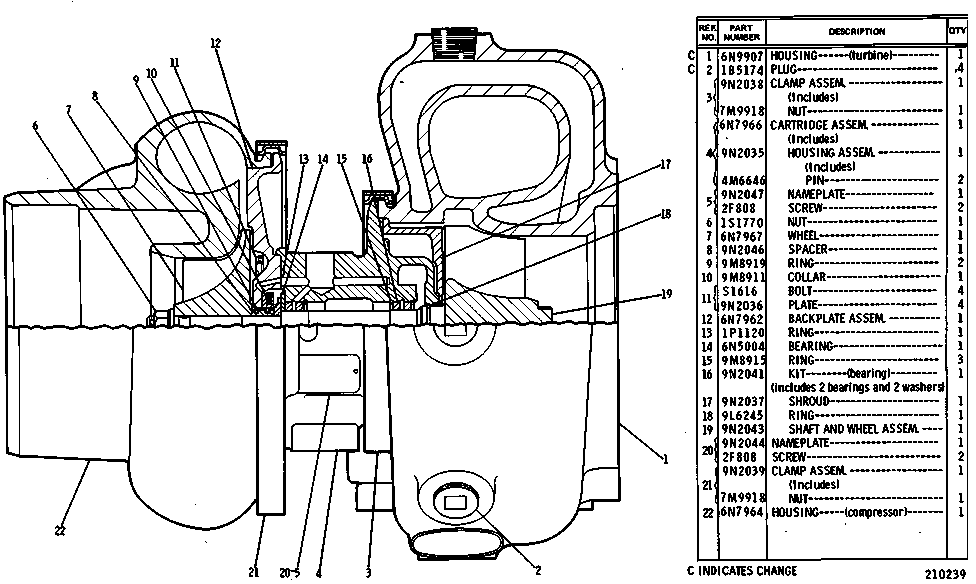

6N7963 TURBOCHARGER GROUPSerial No. 38S949-Up
Group No: 6N7963
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N9907 | 1 HOUSING AS-TURBINE | 1 | |
| 1B5174 | 2 PLUG-PIPE | 4 | |
| 9N2038 | 3 CLAMP AS | 1 | |
| 7M9918 | NUT-SELF LOCKING | 1 | |
| 6N7966 | 4 CARTRIDGE GP | 1 | |
| 9N2035 | HOUSING AS-CENTER | 1 | |
| 4M6646 | PIN-GROOVE | 2 | |
| 9N2047 | 5 NAMEPLATE-CARTRIDGE | 1 | |
| 2F0808 | SCREW | 2 | |
| 1S1770 | 6 LOCKNUT-TURBOCHARGER | 1 | |
| 6N7967 | 7 WHEEL-COMPRESSOR | 1 | |
| 9N2046 | 8 SPACER-THRUST | 1 | |
| 9M8919 | 9 RING-SEAL | 2 | |
| 9M8911 | 10 COLLAR-THRUST | 1 | |
| 0S1616 | 11 BOLT | 4 | |
| 9N2036 | PLATE-LOCK | 4 | |
| 6N7962 | 12 BACKPLATE AS | 1 | |
| 1P1120 | 13 RING-SEAL | 1 | |
| 6N5004 | 14 BEARING-THRUST | 1 | |
| 9M8915 | 15 RING-RETAINING | 3 | |
| 9N2041 | 16 KIT-BEARING | 1 | |
| 9N2037 | 17 SHROUD-TURBINE WHEEL | 1 | |
| 9L6245 | 18 RING-PISTON | 1 | |
| 9N2043 | 19 SHAFT & WHEEL AS | 1 | |
| 9N2044 | 20 NAMEPLATE | 1 | |
| 2F0808 | SCREW | 2 | |
| 9N2039 | 21 CLAMP AS | 1 | |
| 7M9918 | NUT-SELF LOCKING | 1 | |
| 6N7964 | 22 HOUSING-COMPRESSOR | 1 |
