System And Components

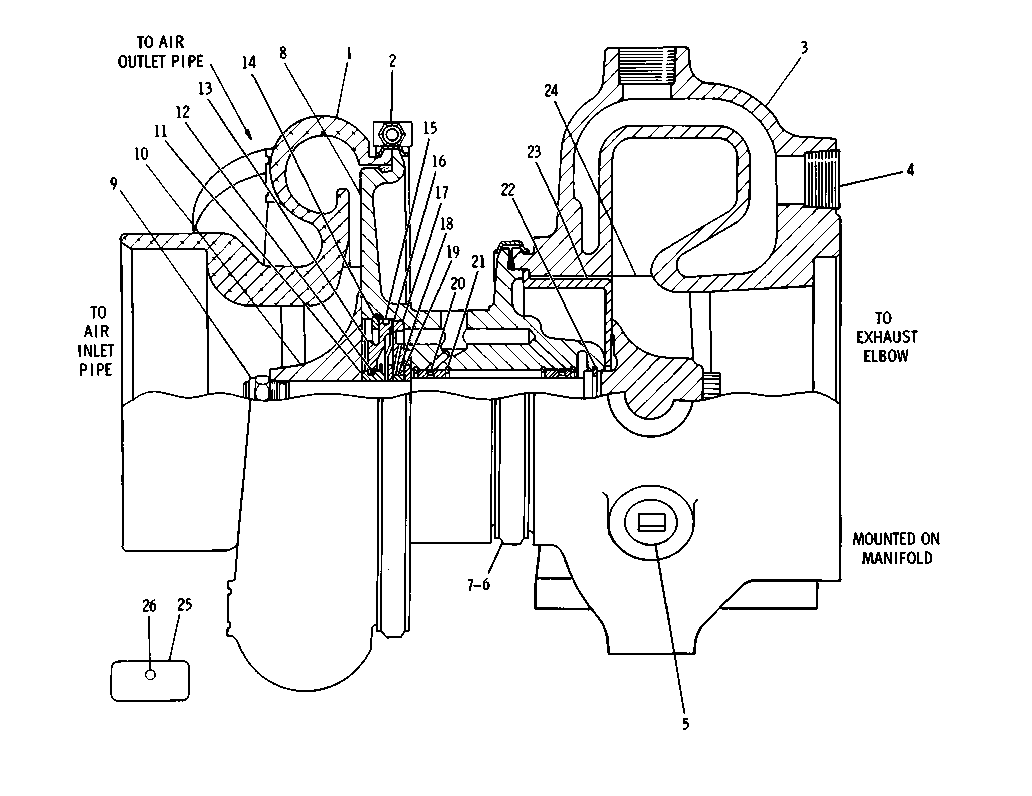

6N2020 TURBOCHARGER GROUPPart of 4N2767 Turbocharger Group shown on Page 165
Group No: 6N2020
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N3905 | 1 COVER-COMPRESSOR | 1 | |
| 7M9916 | 2 CLAMP AS | 1 | |
| 7M9918 | NUT-SELF LOCKING | 1 | |
| 7N6179 | 3 HOUSING AS-TURBINE | 1 | |
| 3B0551 | 4 PLUG-PIPE | 4 | |
| 1B5174 | 5 PLUG-PIPE | 4 | |
| 5S4517 | 6 CLAMP AS | 1 | |
| 7M9918 | 7 NUT-SELF LOCKING | 1 | |
| 6N3902 | 8 CARTRIDGE GP | 1 | |
| 4N8124 | HOUSING AS-BEARING | 1 | |
| 5S5199 | PIN-GROOVE | 1 | |
| 7N0239 | 9 NUT-TURBO COMPRESSOR | 1 | |
| 7N7724 | 10 WHEEL-COMPRESSOR | 1 | |
| 4N7598 | 11 SLEEVE-FLINGER | 1 | |
| 4M8013 | 12 RING-PISTON | 1 | |
| 5S4556 | 13 INSERT | 1 | |
| 5S4546 | 14 RING-RETAINING | 1 | |
| 5P5757 | 15 SEAL-O-RING | 1 | |
| 5S4549 | 16 DEFLECTOR-OIL | 1 | |
| 4N7597 | 17 BEARING AS | 1 | |
| 5S4547 | 18 SLEEVE-SPACER | 1 | |
| 4N7609 | 19 RING-THRUST | 2 | |
| 5S4557 | 20 BEARING | 2 | |
| 4M6983 | 21 RING-RETAINING | 4 | |
| 7N2856 | 22 RING-SEAL | 1 | |
| 4N7596 | 23 BACKPLATE-TURBINE | 1 | |
| 4N7594 | 24 WHEEL AS | 1 | |
| 2S1507 | 25 NAMEPLATE | 1 | |
| 8H3710 | 26 SCREW-TAPPING | 1 | |
| 2W0727 | KIT-CARTRIDGE (REPAIR) | 1 |
