System And Components

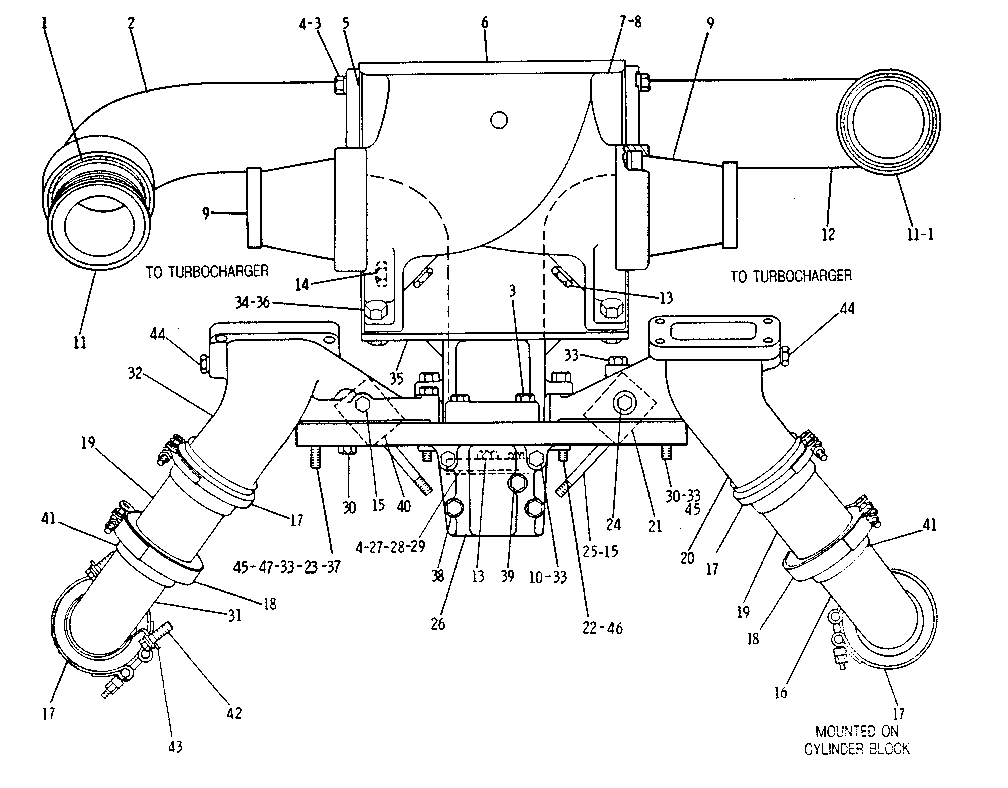

8N8623 AIR LINES GROUPSerial No. 38S12934-Up
Group No: 8N8623
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P5700 | 1 SEAL | 8 | |
| 4N8523 | 2 PIPE | 1 | |
| 1A2029 | 3 BOLT | 10 | |
| 5M2894 | 4 WASHER | 14 | |
| 4N1320 | 5 GASKET | 2 | |
| 3N3368 | 6 PIPE | 1 | |
| 7N9667 | 7 ELBOW | 1 | |
| 4N1828 | 8 GASKET | 1 | |
| 7N2277 | 9 COUPLING | 2 | |
| 0S1608 | 10 BOLT 95.3MM(3.8IN.)LG. | 2 | |
| 4N1849 | 11 PIPE | 2 | |
| 4N8677 | 12 PIPE | 1 | |
| 3J5389 | 13 PLUG | 3 | |
| 5M6213 | 14 PLUG | 3 | |
| 1A5183 | 15 BOLT 120MM(4.75IN.)LG. | 3 | |
| 2W0892 | 16 TUBE | 1 | |
| 8N0879 | 17 CLAMP | 4 | |
| 8N0878 | 18 CLAMP | 2 | |
| 8N0886 | SEAL | 2 | |
| 8N0887 | 19 TUBE | 2 | |
| 8N8629 | 20 ELBOW | 1 | |
| 6N6734 | 21 SUPPORT (R.H.) | 1 | |
| 0S1619 | 22 BOLT 76.2MM(3IN.)LG. | 4 | |
| 1D4717 | 23 NUT | 3 | |
| 9F8999 | 24 BOLT | 1 | |
| 5B2638 | 25 BOLT 133.35MM(5.25IN.)LG. | 2 | |
| 6N7152 | 26 SUPPORT | 1 | |
| 0S1594 | 27 BOLT | 6 | |
| 4N2564 | 28 GASKET | 1 | |
| 6N3543 | 29 PLATE | 1 | |
| 0S1591 | 30 BOLT 38.10MM(1.50IN.)LG. | 12 | |
| 2W0893 | 31 TUBE | 1 | |
| 8N8626 | 32 ELBOW | 1 | |
| 0L1143 | 33 BOLT 63.50MM(2.50IN.)LG. | 4 | |
| 1D4719 | 34 NUT | 4 | |
| 6N7149 | 35 SUPPORT | 1 | |
| 0S1587 | 36 BOLT | 4 | |
| 1S9130 | 37 STUD 77MM(3IN.)LG. | 1 | |
| 0L2070 | 38 BOLT | 2 | |
| 1A5964 | 39 BOLT | 1 | |
| 6N6733 | 40 SUPPORT (L.H.) | 1 | |
| 1W0481 | 41 RING | 2 | |
| 5P5855 | 42 BOLT | 2 | |
| 2M0849 | WASHER | 2 | |
| 2W0796 | 43 SUPPORT | 1 | |
| 5B7890 | 44 PLUG | 2 | |
| 0T0573 | 45 BOLT 69.9MM(2.8IN.)LG. | 3 | |
| 0L1352 | 46 BOLT 82.6MM(3.3IN.)LG. | 4 | |
| 2M2488 | 47 STUD 91MM(3.6IN.)LG. | 1 |
