System And Components

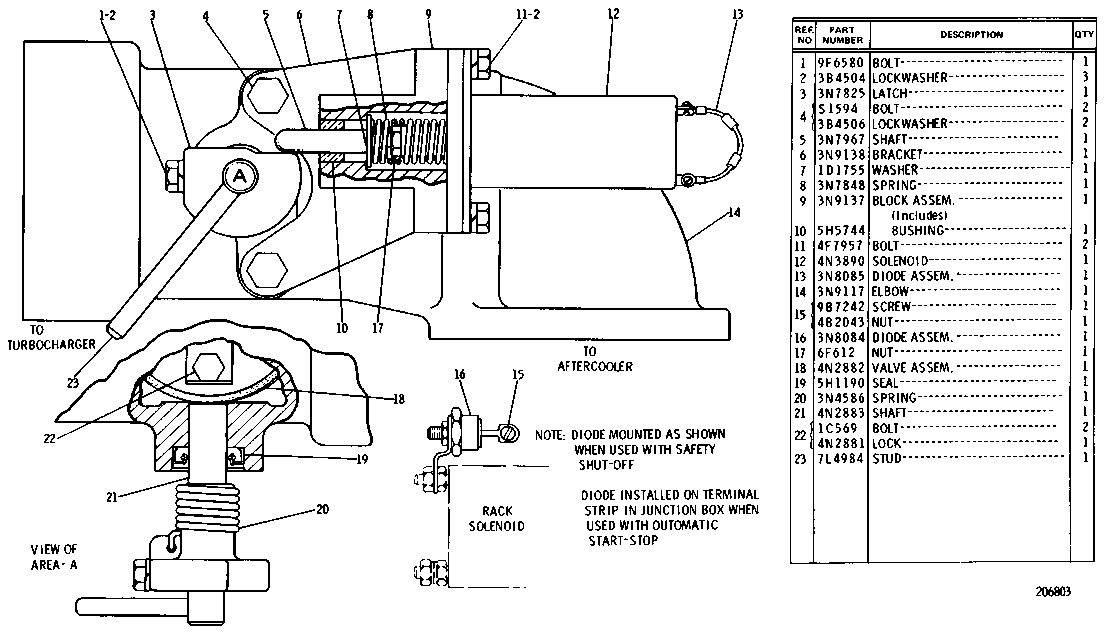

3N9118 AIR SHUT-OFF GROUP--24 or 32 Volt--Type 1Part of 3N9119 Air Shut-off Group listed on Page 306
Group No: 3N9118
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9F6580 | 1 BOLT | 1 | |
| 3B4504 | 2 LOCKWASHER | 3 | |
| 3N7825 | 3 LATCH | 1 | |
| 0S1594 | 4 BOLT | 2 | |
| 3B4506 | LOCKWASHER | 2 | |
| 3N7967 | 5 SHAFT | 1 | |
| 3N9138 | 6 BRACKET | 1 | |
| 1D1755 | 7 WASHER | 1 | |
| 3N7848 | 8 SPRING | 1 | |
| 3N9137 | 9 BLOCK ASSEM. | 1 | |
| 5H5744 | 10 BUSHING | 1 | |
| 4F7957 | 11 BOLT | 2 | |
| 4N3890 | 12 SOLENOID | 1 | |
| 3N8085 | 13 DIODE ASSEM. | 1 | |
| 3N9117 | 14 ELBOW | 1 | |
| 9B7242 | 15 SCREW | 1 | |
| 4B2043 | NUT | 1 | |
| 3N8084 | 16 DIODE ASSEM. | 1 | |
| 6F0612 | 17 NUT | 1 | |
| 4N2882 | 18 VALVE ASSEM. | 1 | |
| 5H1190 | 19 SEAL | 1 | |
| 3N4586 | 20 SPRING | 1 | |
| 4N2883 | 21 SHAFT | 1 | |
| 1C0569 | 22 BOLT | 2 | |
| 4N2881 | LOCK | 1 | |
| 7L4984 | 23 STUD | 1 |
