System And Components

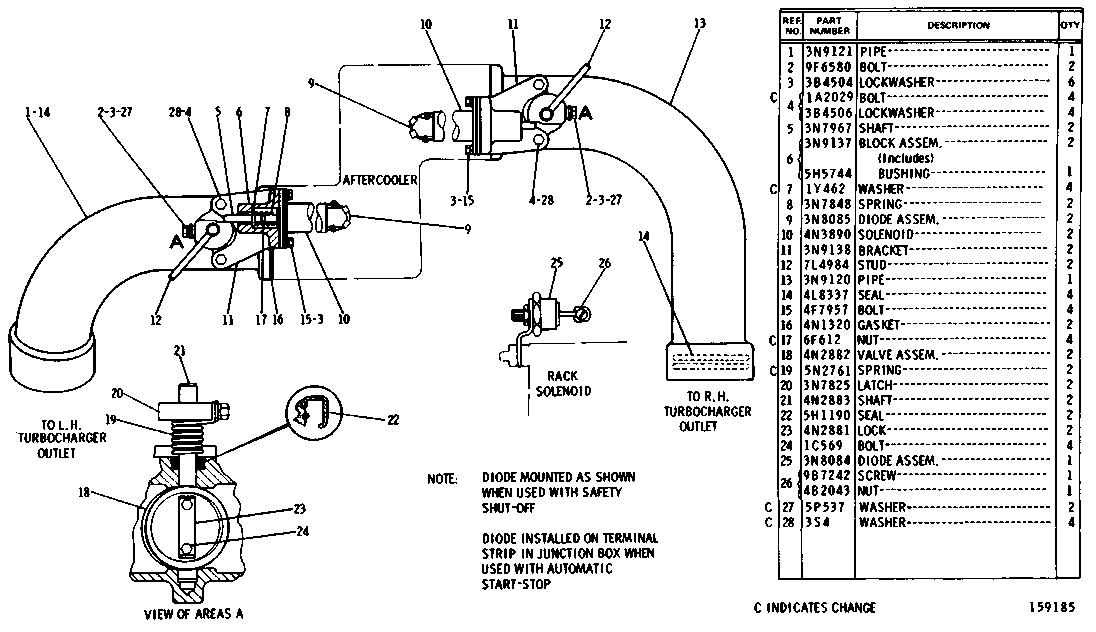

3N9122 AIR SHUT-OFF GROUP--24 or 32 Volt--Type 2Part of 3N9123 Air Shut-off Group listed on Page 306
Group No: 3N9122
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3N9121 | 1 PIPE | 1 | |
| 9F6580 | 2 BOLT | 2 | |
| 3B4504 | 3 LOCKWASHER | 6 | |
| 1A2029 | 4 BOLT | 4 | |
| 3B4506 | LOCKWASHER | 4 | |
| 3N7967 | 5 SHAFT | 2 | |
| 3N9137 | 6 BLOCK ASSEM. | 2 | |
| 5H5744 | BUSHING | 1 | |
| 1Y0462 | 7 WASHER | 4 | |
| 3N7848 | 8 SPRING | 2 | |
| 3N8085 | 9 DIODE ASSEM. | 2 | |
| 4N3890 | 10 SOLENOID | 2 | |
| 3N9138 | 11 BRACKET | 2 | |
| 7L4984 | 12 STUD | 2 | |
| 3N9120 | 13 PIPE | 1 | |
| 4L8337 | 14 SEAL | 4 | |
| 4F7957 | 15 BOLT | 4 | |
| 4N1320 | 16 GASKET | 2 | |
| 6F0612 | 17 NUT | 4 | |
| 4N2882 | 18 VALVE ASSEM. | 2 | |
| 5N2761 | 19 SPRING | 2 | |
| 3N7825 | 20 LATCH | 2 | |
| 4N2883 | 21 SHAFT | 2 | |
| 5H1190 | 22 SEAL | 2 | |
| 4N2881 | 23 LOCK | 2 | |
| 1C0569 | 24 BOLT | 4 | |
| 3N8084 | 25 DIODE ASSEM. | 1 | |
| 9B7242 | 26 SCREW | 1 | |
| 4B2043 | NUT | 1 | |
| 5P0537 | 27 WASHER | 2 | |
| 3S0004 | 28 WASHER | 4 |
