System And Components

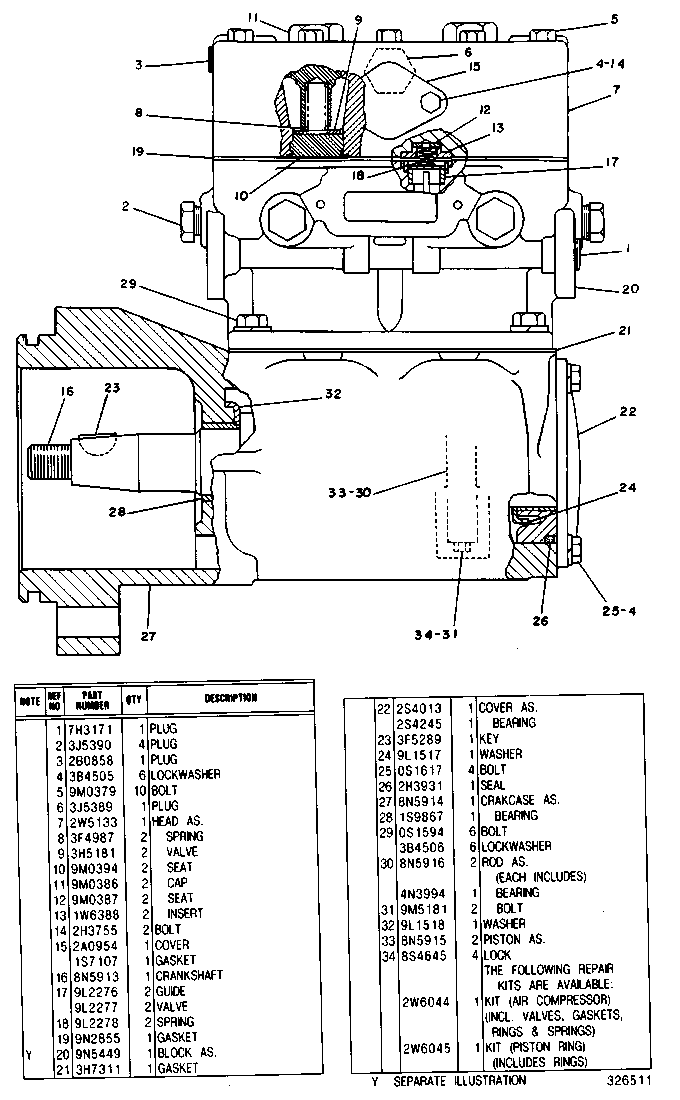

2W5134 AIR COMPRESSOR GROUPSerial No. 38S6689-Up
Group No: 2W5134
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7H3171 | 1 PLUG | 1 | |
| 3J5390 | 2 PLUG | 4 | |
| 2B0858 | 3 PLUG | 1 | |
| 3B4505 | 4 LOCKWASHER | 6 | |
| 9M0379 | 5 BOLT | 10 | |
| 3J5389 | 6 PLUG | 1 | |
| 2W5133 | 7 HEAD AS. | 1 | |
| 3F4987 | 8 SPRING | 2 | |
| 3H5181 | 9 VALVE | 2 | |
| 9M0394 | 10 SEAT | 2 | |
| 9M0386 | 11 CAP | 2 | |
| 9M0387 | 12 SEAT | 2 | |
| 1W6388 | 13 INSERT | 2 | |
| 2H3755 | 14 BOLT | 2 | |
| 2A0954 | 15 COVER | 1 | |
| 1S7107 | GASKET | 1 | |
| 8N5913 | 16 CRANKSHAFT | 1 | |
| 9L2276 | 17 GUIDE | 2 | |
| 9L2277 | VALVE | 2 | |
| 9L2278 | 18 SPRING | 2 | |
| 9N2855 | 19 GASKET | 1 | |
| 9N5449 | 20 BLOCK AS. | 1 | |
| 3H7311 | 21 GASKET | 1 | |
| 2S4013 | 22 COVER AS. | 1 | |
| 2S4245 | BEARING | 1 | |
| 3F5289 | 23 KEY | 1 | |
| 9L1517 | 24 WASHER | 1 | |
| 0S1617 | 25 BOLT | 4 | |
| 2H3931 | 26 SEAL | 1 | |
| 8N5914 | 27 CRAKCASE AS. | 1 | |
| 1S9867 | 28 BEARING | 1 | |
| 0S1594 | 29 BOLT | 6 | |
| 3B4506 | LOCKWASHER | 6 | |
| 8N5916 | 30 ROD AS. | 2 | |
| 4N3994 | BEARING | 1 | |
| 9M5181 | 31 BOLT | 2 | |
| 9L1518 | 32 WASHER | 1 | |
| 8N5915 | 33 PISTON AS. | 2 | |
| 8S4645 | 34 LOCK | 4 | |
| 2W6044 | KIT (AIR COMPRESSOR) | 1 | |
| 2W6045 | KIT (PISTON RING) | 1 |
